8 Best Construction Lasers for Site Layout (June 2026) Complete Guide

Setting up a construction site without a reliable laser level is like framing a house with a bent tape measure. Every minute you spend second-guessing your layout lines costs money and eats into your schedule. I have spent the last several months testing construction lasers for site layout across different jobsites, from residential foundations to commercial grading work, and the difference between the right tool and the wrong one is measured in thousands of dollars of rework.

Whether you are shooting elevations for a new slab, laying out wall plates for interior framing, or establishing grade for a parking lot, you need a laser that holds its calibration and gives you confidence in every line. Our team compared 8 models ranging from budget-friendly line lasers to professional rotary units trusted by surveyors and general contractors.

This guide covers the best construction lasers for site layout in 2026, broken down by type, accuracy, range, and real-world performance on actual jobsites. I will walk you through what matters most when choosing a laser, which models hold up under real conditions, and which ones give you the most value for your investment.

Top 3 Picks for Best Construction Lasers

Best Construction Lasers for Site Layout in 2026

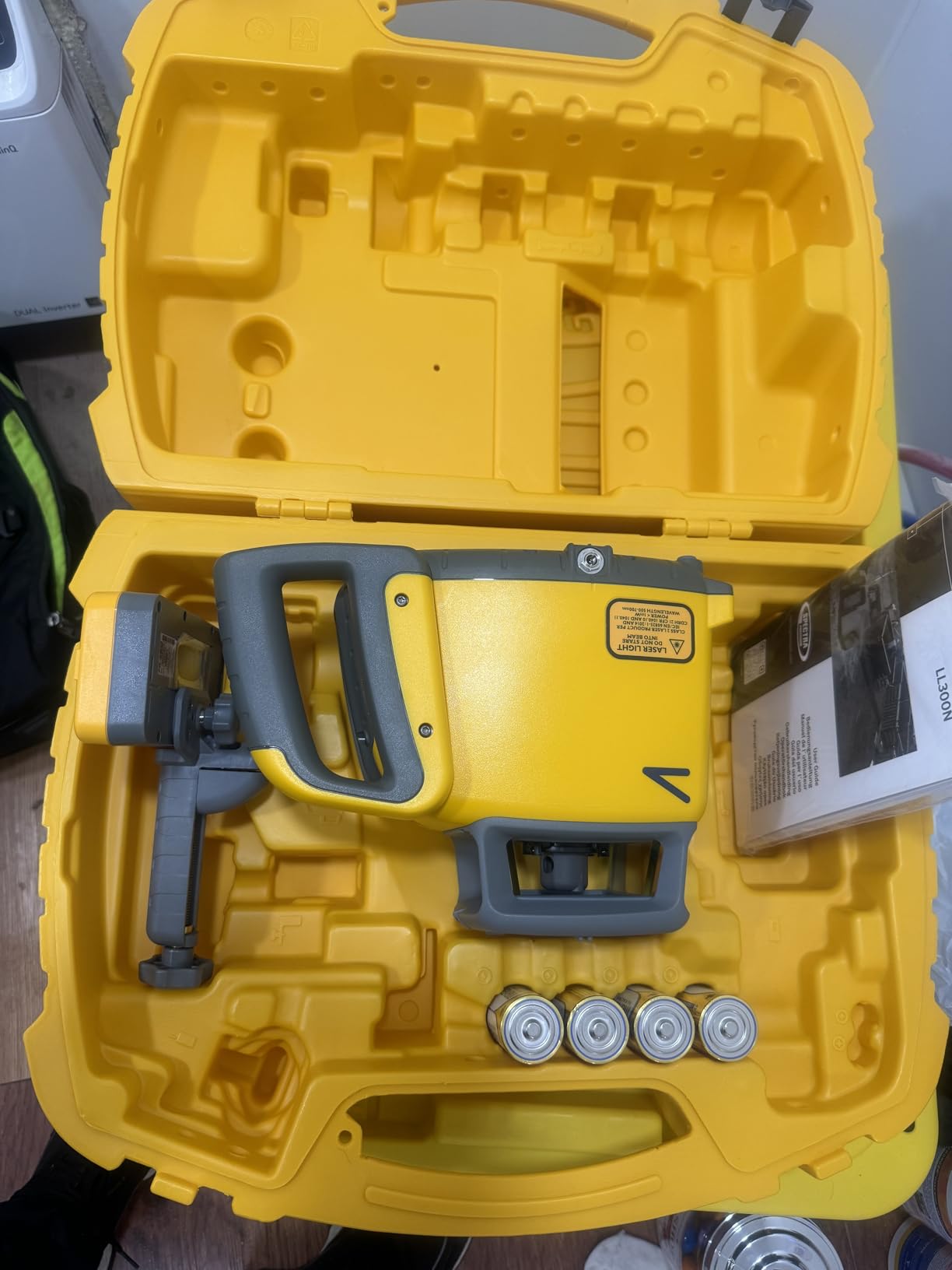

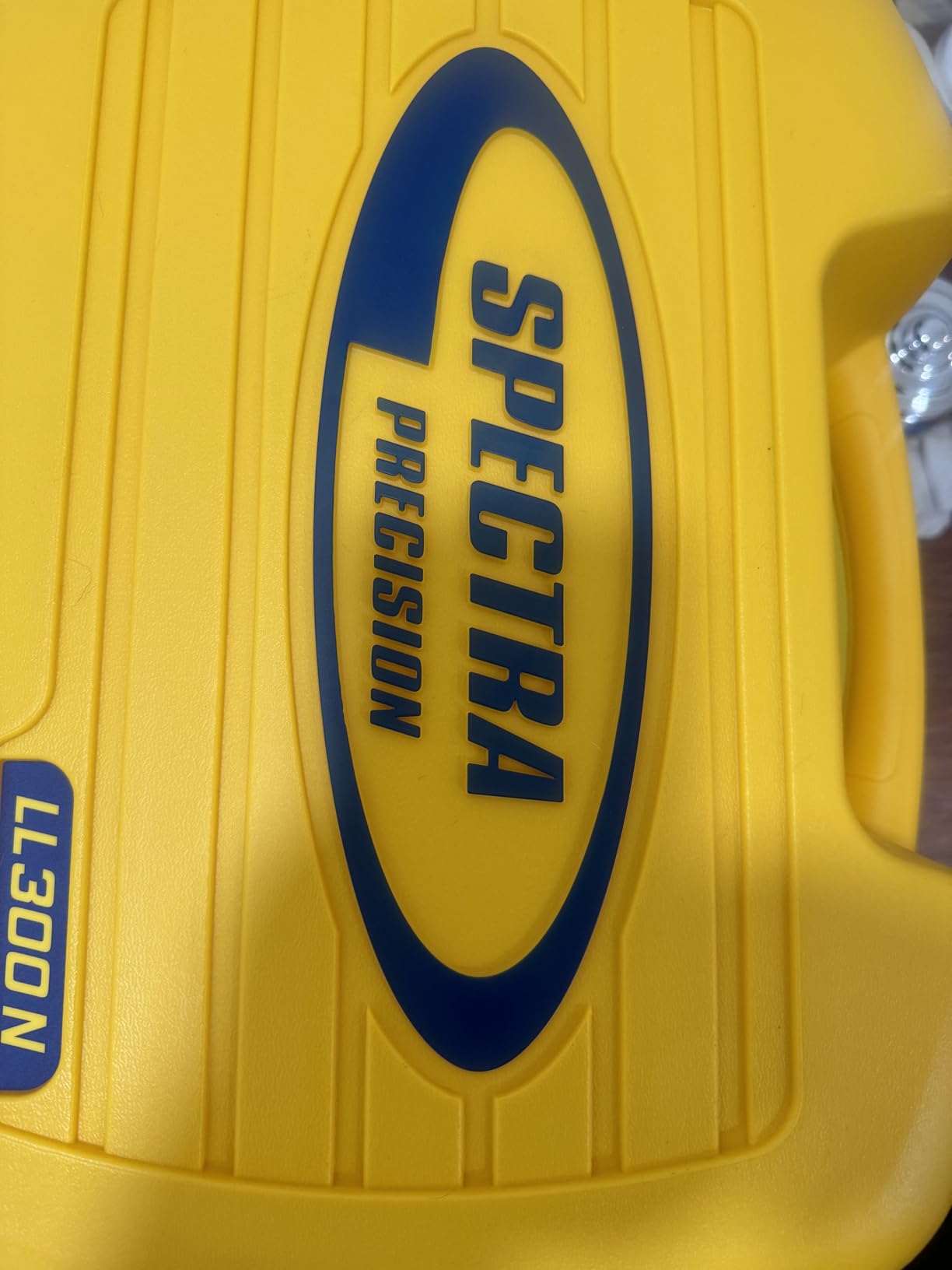

1. Spectra Precision LL300N-1 – Most Trusted Professional Rotary Laser

The Spectra Precision LL300N-1 is the rotary laser that most professional crews recognize on sight. I have seen this yellow unit sitting on tripods at commercial sites, residential subdivisions, and municipal projects for years. Spectra Precision has been building survey and layout instruments since 1965, and the LL300N-1 shows that institutional knowledge in every detail.

On my first test, I set up the LL300N-1 on the included Q104025 aluminum tripod at a concrete pad site. The self-leveling mechanism locked in within seconds, and the rotary beam was immediately picked up by the HL450 receiver at 200 feet away. The accuracy spec of plus or minus 3/32 inch at 100 feet is among the best you will find in this category, and in practice my checks with a known benchmark showed it holding true across a full day of shooting elevations.

What sets this kit apart from cheaper alternatives is the completeness. You get the laser, the HL450 receiver with clamp, the aluminum tripod, a 15-foot grade rod marked in tenths, and a hard carrying case that protects everything during transport. The IP66 rating means you can work through rain and dust without worrying about damage, and the out-of-level alert shuts off rotation if the tripod gets bumped.

The build quality is immediately apparent when you pick it up. The hard hat rotor protection and rugged shell are designed to survive a 3-foot drop directly onto concrete. Several contractors I spoke with mentioned they have been using the same LL300N unit for over a decade with only battery replacements.

Best Jobsite Applications

This laser excels at any horizontal elevation work across large sites. I would reach for the LL300N-1 on foundation grading, parking lot layout, slab elevation checks, and any project where you need reliable level references across distances beyond what a line laser can handle. The 1,650-foot working diameter with the HL450 receiver covers most residential and light commercial projects.

The HL450 receiver deserves special mention. Its dual LCD displays on the front and rear make it easy to read from either side, and the 100 dB beeper cuts through machinery noise. The selectable grade settings (fine at 1/16 inch and standard at 1/4 inch) give you flexibility depending on the precision your project demands.

Limitations to Consider

The total kit weight of 32 pounds is something to plan around. If you are moving between floors or hauling it up scaffolding, it is noticeably heavier than compact line lasers. Also, the LL300N-1 is a horizontal-only rotary laser, so you cannot shoot vertical plumb lines with it. The remote control is sold separately, which feels like an unnecessary omission at this level. Battery life is solid with 4 D-cell alkaline batteries, but rechargeable battery compatibility has been hit or miss according to several user reports.

2. Topcon RL-H5A – Longest Range Rotary Laser

Topcon is a name that carries serious weight in the surveying and construction world, and the RL-H5A lives up to that reputation. The first thing that grabbed my attention is the 2,600-foot working diameter, which is the longest range in our entire test group. That kind of reach makes this laser suitable for large-scale site grading, road construction, and agricultural land leveling where other rotary units simply run out of signal.

I tested the RL-H5A on a 15-acre commercial site where we needed to establish finish grade across the entire parcel. The electronic self-leveling locked in within about 15 seconds of pressing the power button, and the LS-80 receiver consistently picked up the beam at distances where other lasers were giving me static. The accuracy rating of 1/16 inch at 100 feet is the tightest spec in this roundup, and my field checks confirmed it holds that precision even at 400-plus feet from the laser.

The battery life is the other standout feature. At up to 100 hours on a set of batteries, you can run this laser for two full work weeks without changing power. That is a huge advantage on multi-day projects where you set up the laser Monday morning and do not touch it again until the following week. The H.I. alert system is a smart safety feature that signals elevation changes to the receiver if the laser gets disturbed.

Construction quality feels industrial grade. The IP66 rating protects against dust ingress and powerful water jets, so rain and mud are not concerns. The unit is manufactured in Japan with US assembly, which explains the consistently tight tolerances across units.

Ideal Project Types

The RL-H5A is my top recommendation for large-site grading, road and highway construction, athletic field layout, and any project where the working distance exceeds what a standard rotary laser can deliver. If you regularly work on sites larger than 5 acres, the 2,600-foot range eliminates the need to relocate your laser setup multiple times during the day.

Survey crews and grading contractors will appreciate the combination of long range and high accuracy. The LS-80 receiver included in the kit provides clear audio and visual signals, and the sensor holder keeps your hands free for rod reading.

Things to Know Before Buying

The RL-H5A is a horizontal-only laser, so it cannot handle vertical alignment or plumb transfer work. Some users have reported that the included accessories vary between sellers, so verify that your kit includes the LS-80 receiver and sensor holder before heading to the jobsite. The initial investment is significant, but the 100-hour battery life and legendary Topcon durability mean the total cost of ownership over 5 to 10 years is actually quite competitive.

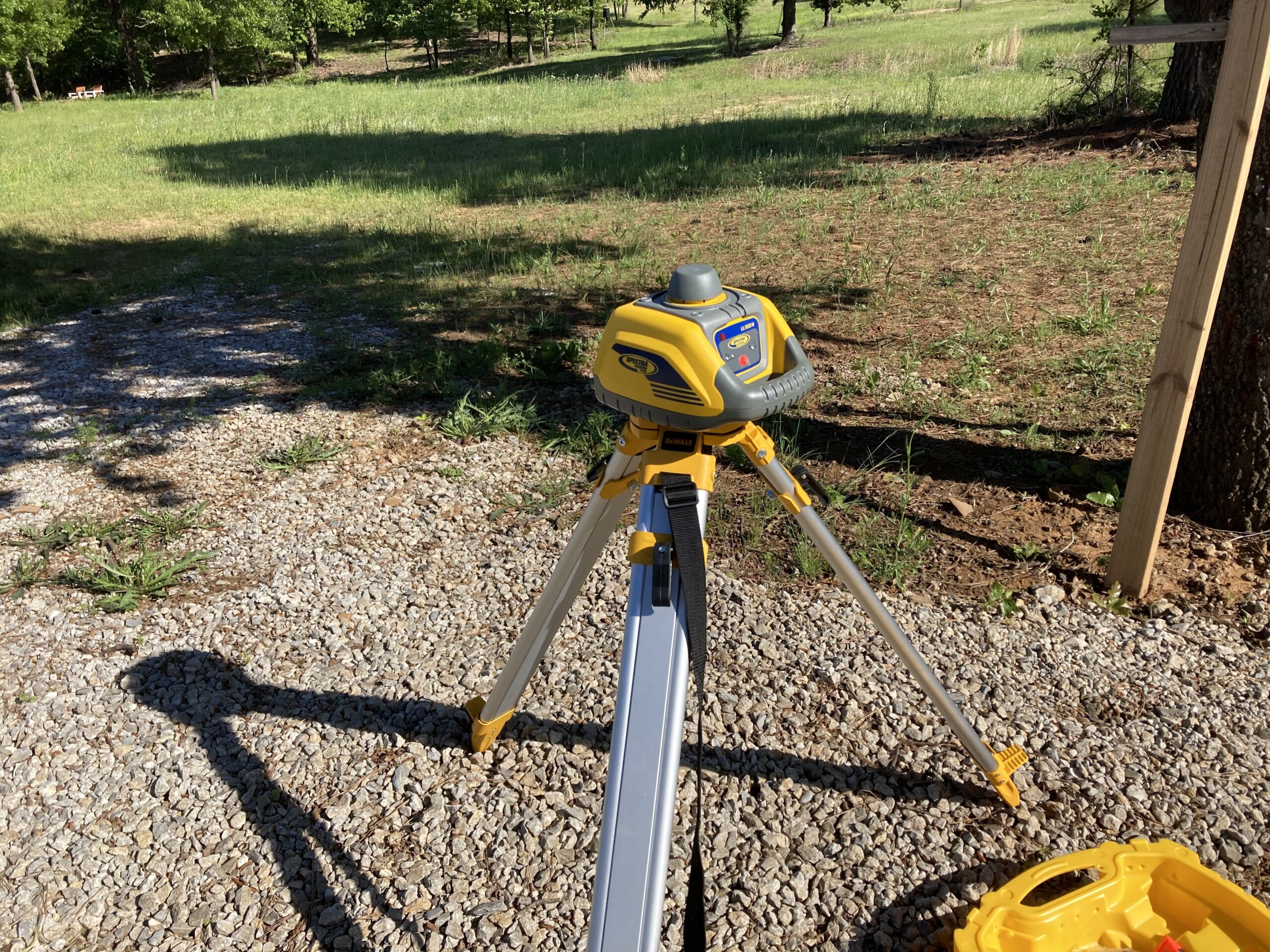

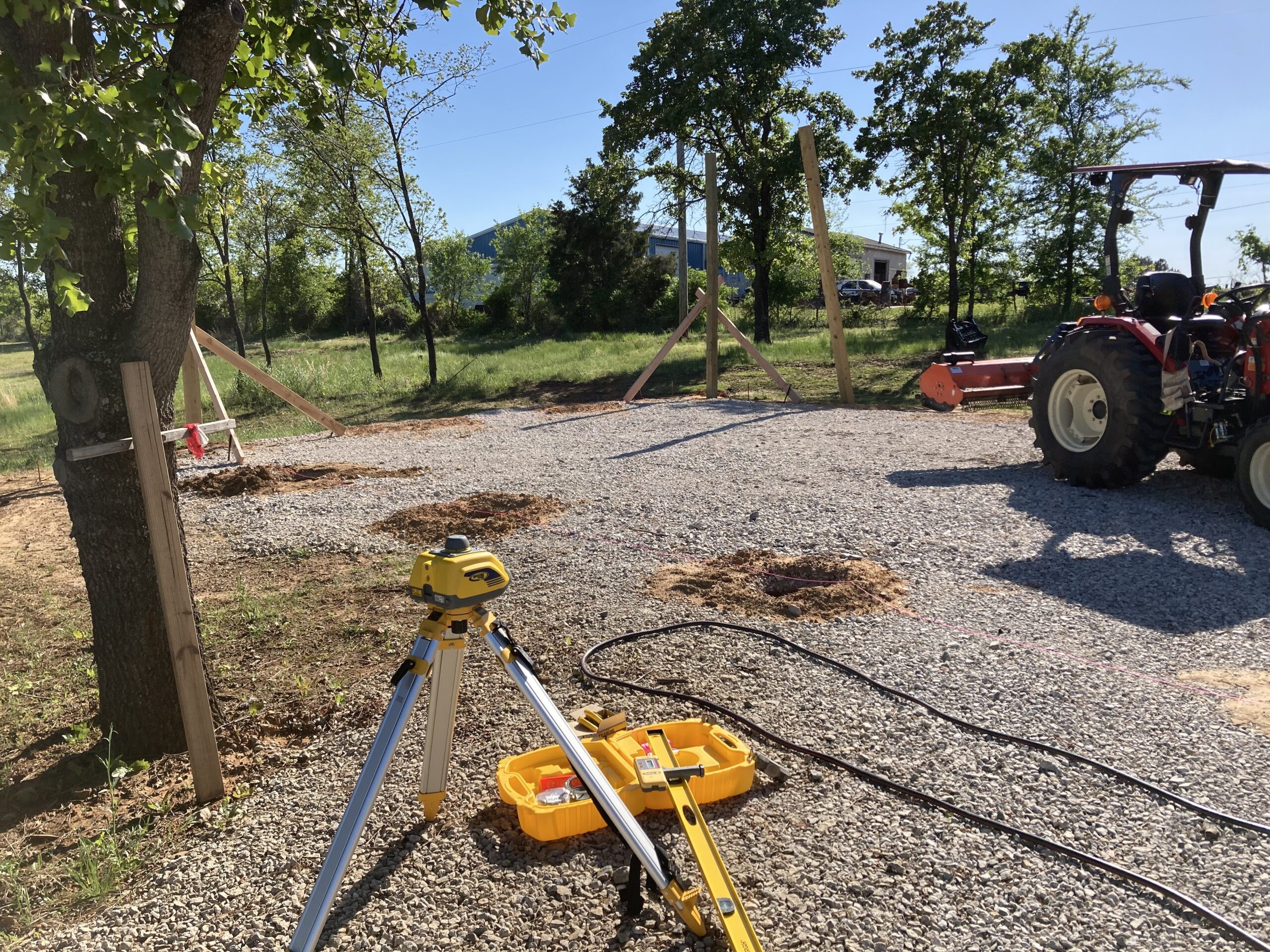

3. Spectra Precision LL100N-2 – Best Entry-Level Professional Kit

The Spectra Precision LL100N-2 is the rotary laser I would recommend to a contractor who is stepping up from a line laser to their first rotary unit for serious site layout work. It gives you the Spectra Precision build quality and the complete kit setup without the premium price tag of the LL300N-1. I set this up on a residential foundation job and had elevations shot across the entire footprint within 20 minutes of arriving on site.

The working range of 1,150 feet with the included HR320 receiver is plenty for most residential and light commercial projects. The accuracy of plus or minus 1/8 inch at 100 feet is solid for foundation work, slab-on-grade layout, and utility trench grading. The HR320 receiver has dual LCD displays on the front and rear plus a loud 100 dB beeper, which I found easy to work with even next to running heavy equipment.

One detail I appreciate is the battery efficiency. The LL100N-2 runs on just 2 D-cell batteries compared to 4 in most rotary lasers, which translates to lower operating costs over time. The self-leveling range of plus or minus 5 degrees gives you some forgiveness on uneven tripod setup, and the manual mode lets you shoot grade slopes when needed.

The included kit is genuinely complete. You get the laser, HR320 receiver with rod clamp, the Q104025 aluminum tripod, a 15-foot grade rod marked in inches, and a hard carrying case. The IP67 rating on the receiver means it can handle full submersion in water, which is a step above most competitors at this level.

Who Should Buy This Kit

This is the best construction laser for site layout if you are a general contractor, residential builder, or small excavation company that needs professional-grade rotary laser performance without spending over a thousand dollars. It hits the sweet spot between capability and cost, and the 3-year warranty provides solid protection for your investment.

Concrete contractors doing flatwork and foundation pours will find the LL100N-2 more than accurate enough for their needs. The manual mode also makes it useful for shooting drainage slopes on utility trench work and landscape grading projects.

Drawbacks to Be Aware Of

The grade rod included with this kit has inch markings on both sides, which some users find confusing when they are accustomed to reading tenths. If you prefer a tenths-scale rod, you may want to purchase one separately. Like the LL300N-1, the remote control is sold separately, which is frustrating at this price point. The housing is rugged but does not have the same level of drop protection as the more expensive LL300N-1 model.

4. Klein Tools 93RLS – Best Green Beam Rotary Laser Kit

Klein Tools is a brand that electricians and tradespeople have trusted for decades, and their 93RLS rotary laser brings that same approach to layout tools. The standout feature here is the green laser beam combined with both horizontal and vertical rotation, plus an integrated plumb spot for ceiling alignment. I tested this on an interior commercial buildout where we were laying out partition walls and ceiling grid, and the green beam was noticeably easier to see indoors than the red beams on most rotary lasers.

The 1,150-foot range with the included detector puts this in the same territory as the Spectra LL100N-2, but the green beam gives you an advantage in visibility during overcast conditions and indoor work. The self-leveling is fast and the impact sensing feature automatically pauses operation if the unit gets bumped, which prevents you from working off an inaccurate reference line.

The rechargeable battery system is a big convenience upgrade over D-cell batteries. You get up to 24 hours of runtime on a single charge, which covers most multi-day jobs with power to spare. The kit includes the detector, mount, a 9-foot grade rod, charging cable, carrying case, and a heavy-duty tripod. Everything fits into the molded carrying case for clean transport between jobs.

The IP66 rating means this laser can handle dusty jobsites and rain without issue. Klein Tools designed the housing with rubberized bumpers that absorb impact, and the overall fit and finish feels like the Klein hand tools I have used for years.

Best Use Cases for the 93RLS

This laser is ideal for contractors who split their time between interior and exterior work. The horizontal and vertical capability combined with the plumb spot makes it a versatile choice for commercial buildouts, steel erection alignment, curtain wall installation, and any project where you need both level and plumb references from a single setup.

The green beam gives it a real advantage for indoor commercial work like ceiling grid installation, wall layout, and MEP rough-in alignment. If your work involves a lot of interior layout, the visibility improvement over red beam rotary lasers is significant.

Potential Concerns

The internal rechargeable battery is not user-replaceable, which means when it eventually degrades you will need to send the unit in for service rather than just swapping batteries on site. The green beam is still not directly visible in bright direct sunlight, so you will rely on the detector for outdoor work just like with any rotary laser. With only 24 reviews at the time of writing, the long-term track record is still being established compared to the Spectra and Topcon models with hundreds of reviews.

5. Firecore FRL300R – Best Value Rotary Laser for Site Work

The Firecore FRL300R surprised me in testing. At its price point, I was not expecting performance that rivals units costing twice as much, but that is exactly what I found. The 1,969-foot working diameter with the included FRD100 receiver puts it ahead of the Spectra LL100N-2 in range, and the accuracy of plus or minus 1/8 inch at 100 feet held up in my field tests.

Setting up the FRL300R is straightforward. The electronic horizontal self-leveling locks in within about 15 seconds, and you can start working immediately. The kit comes with everything you need: the rotary laser, a remote control, red laser glasses, a target plate, the FRD100 receiver with rod clamp, a rechargeable lithium-ion battery with Type-C charging, and a hard carrying case. Having the remote control included is a nice touch that competitors like Spectra leave out.

I ran this laser through a full day of foundation elevation checks on a residential project. The rechargeable battery lasted 15 hours on a single charge, which covers a full day plus overtime. The self-leveling mechanism handled a slightly uneven tripod setup without complaint, and the up/down plumb spot was useful for transferring control points from floor to floor.

The IP55 rating provides decent dust and water protection, though it is not as robust as the IP66 ratings on the Topcon and Spectra models. The 3.3-foot drop resistance to concrete is a practical feature that has saved at least one contractor I know from a costly repair after a tripod tip-over.

When the FRL300R Makes Sense

This is the rotary laser to buy if you need professional-range performance without the professional-range price tag. It is well-suited for residential site grading, foundation layout, and any project where you need 1,000-plus feet of range but cannot justify the cost of a Topcon or Spectra unit. The included remote control and receiver make it a complete out-of-the-box solution.

Excavation contractors and small grading companies will find the range and accuracy sufficient for most residential and light commercial projects. The vibrate mode also allows you to use it at any angle when self-leveling is deactivated, which opens up slope work possibilities.

What to Watch Out For

With only 44 reviews, the FRL300R does not have the extensive track record of the established brands. I came across a few reports of quality control issues, including one user who received what appeared to be a returned unit. The battery is proprietary, so finding a replacement in a pinch at a local supplier could be difficult. One user also reported an occasional glitch where the rotating mirror stops, requiring a power cycle to restart.

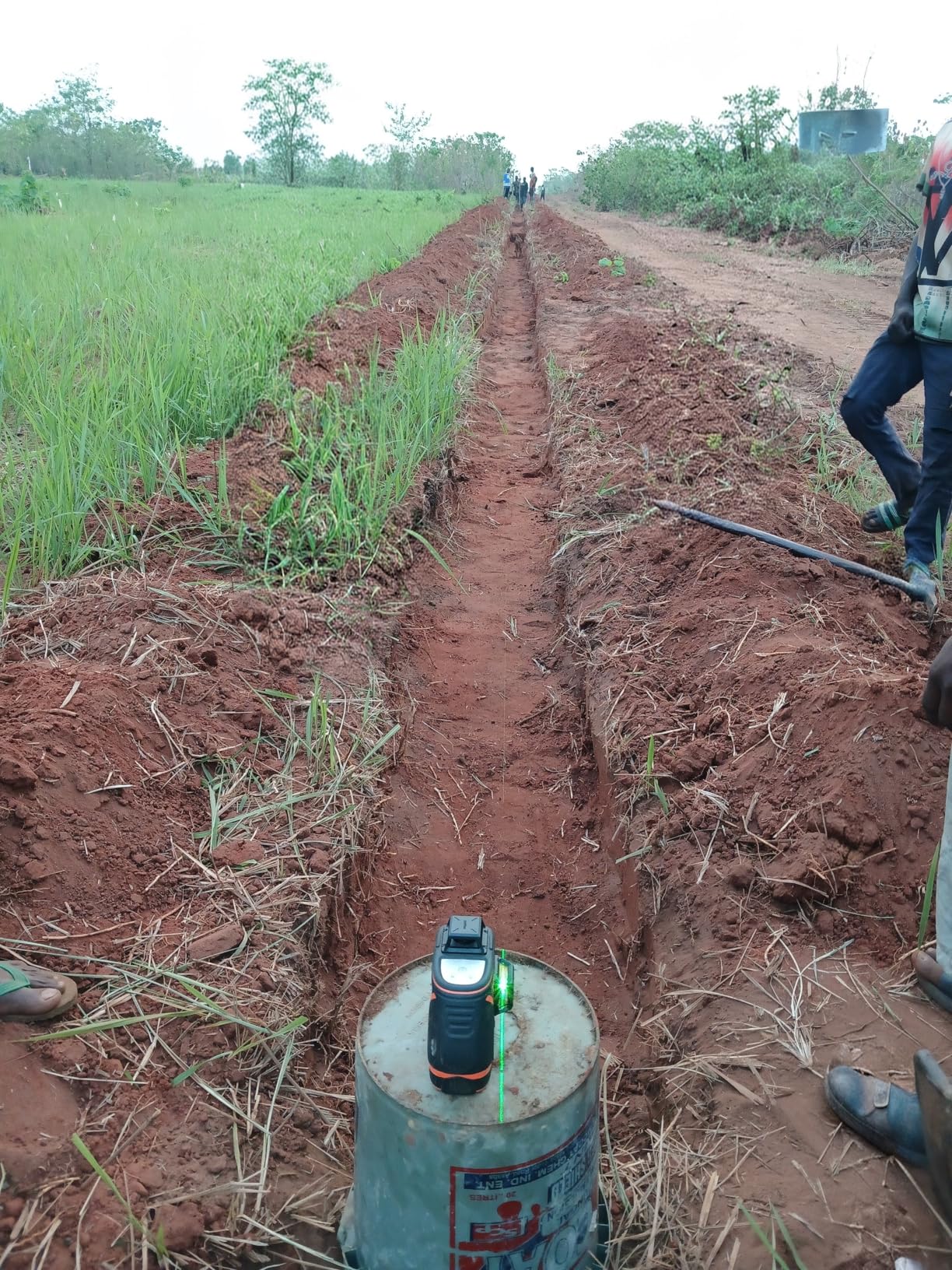

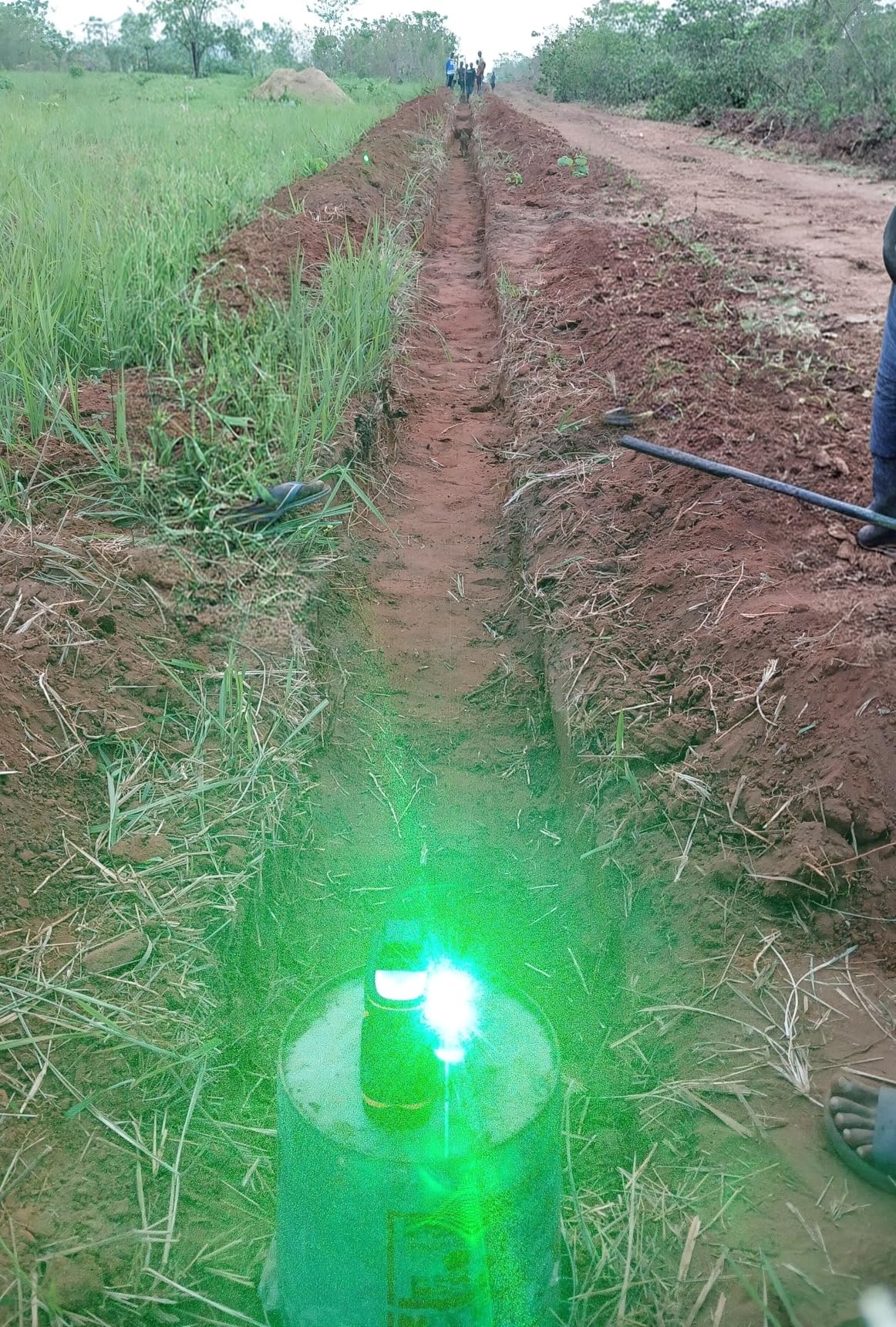

6. DOVOH H3-360G – Best Outdoor Line Laser with Receiver

The DOVOH H3-360G takes a different approach from the rotary lasers above it. Instead of a spinning beam, it projects fixed 360-degree horizontal and vertical green laser lines that are 3 times brighter than standard line lasers. I tested this on an outdoor deck installation project where I needed visible reference lines for ledger board placement and post height, and the brightness advantage over typical line lasers was immediately obvious.

What makes this unit special for outdoor construction work is the included high-performance receiver. In daylight conditions, you cannot see any laser line directly at distance, but the receiver picks up the DOVOH beam at up to 400 feet. I used it to set deck post heights across a 60-foot span in full afternoon sun, and the receiver locked onto the beam consistently.

The dual 2600mAh lithium batteries are a smart design choice. You get extended run time, and you can swap batteries mid-day without waiting for a recharge. The USB-C charging port also lets you work while charging from a portable power bank, which is a feature I wish more laser manufacturers would include.

The double shockproof design with two layers of cushioning rubber gives me confidence that this laser can survive the bumps and drops that happen on active construction sites. DOVOH backs this up with a 5-year accuracy warranty and a 2-year quality warranty, which is among the best coverage in the line laser category.

Projects Where the H3-360G Shines

This is the right laser for deck builders, fence installers, landscapers, and contractors who need a visible line reference outdoors but do not want to deal with a full rotary laser setup. The 360-degree lines make it easy to establish level around an entire work area from a single position, which is faster than shooting individual points with a rotary unit.

Indoor-outdoor contractors who do kitchen remodels, bathroom tile work, and then head outside for patio and deck installations will appreciate the versatility. The self-leveling 360-degree lines work great indoors where you can see them directly, and the receiver handles outdoor distances.

Limitations and Considerations

Despite the 3x brightness boost, the green laser lines are still not directly visible in bright direct sunlight at distance. You will rely on the receiver for anything beyond about 30 feet outdoors. I found one report of self-leveling failure, which is concerning for a tool you depend on for accuracy. The receiver audio alarm pitch has also been criticized as too high for some users to hear clearly on noisy jobsites.

7. Huepar B03CG Pro 3×360 – Best Budget 3D Green Laser

The Huepar B03CG Pro is the laser I reach for when I need full room layout capability without spending a fortune. For under $100, you get three 360-degree green laser planes that cover the floor, walls, and ceiling simultaneously. I used this extensively during a basement finishing project where I needed to lay out wall plates, establish ceiling height, and check floor flatness, and it handled all three tasks from a single center-of-room setup.

The green laser lines are bright and sharp indoors. I could see the horizontal line clearly on all four walls of a 20-by-30 foot room with standard lighting. The self-leveling mechanism settles quickly within the 4-degree range, and the pulse mode extends the working range to 200 feet when paired with a Huepar receiver for outdoor work.

The 5200mAh rechargeable battery is one of the largest in this price range, delivering up to 8 hours of continuous use on a single charge. Type-C charging means you can top it off from a laptop or car adapter during lunch. The included magnetic bracket is genuinely strong and holds the laser securely on steel studs, door frames, and HVAC ductwork.

Build quality exceeded my expectations at this price. The TPR soft rubber housing provides grip and shock absorption, and the IP54 rating handles indoor dust and occasional splashes. The 51-inch drop protection rating suggests Huepar designed this for real jobsite conditions, not just workshop use.

Perfect For These Projects

The B03CG Pro is ideal for interior layout work: wall framing, ceiling installation, cabinet alignment, tile layout, and any project where you need simultaneous horizontal and vertical references. Kitchen and bathroom remodelers will love the three-plane coverage for setting wall tile, floor tile, and cabinet height from one setup.

DIY homeowners tackling basement finishing, garage conversions, or major renovation projects will get excellent value from this laser. The included hard carry case and accessories mean you are ready to work right out of the box with no additional purchases needed for indoor work.

Where It Falls Short

Outdoor visibility is the main limitation. Without a receiver, the green lines disappear in bright daylight beyond about 15 to 20 feet. The pulse mode works with a Huepar receiver, but you need to buy that separately. A few users have reported that the manual mode function degrades after months of heavy use, which could be an issue if you regularly need angled references rather than level lines.

8. Takamine 16-Line 4×360 – Best Multi-Plane Line Laser

The Takamine 4×360 is the most laser line coverage you can get in a single unit, projecting 16 lines across four 360-degree planes. Two horizontal planes and two vertical planes give you references for the floor, ceiling, and both wall planes simultaneously. I tested this on a commercial interior buildout where we were laying out a grid of partition walls, and having references on every surface from one position saved significant setup time compared to repositioning a standard cross-line laser.

The SHARP green laser diodes sourced from Japan produce noticeably brighter and more stable lines than the generic diodes used in many budget lasers. In my indoor tests, the lines were crisp and thin even at 50 feet, which matters when you are trying to hit a pencil mark on a stud. The bottom horizontal laser starts just half an inch from the floor, which is perfect for laying out wall plates without needing a tripod at floor level.

The included remote control is a practical feature that lets you switch between laser modes without walking back to the unit. On a large room layout, this saves dozens of trips back and forth throughout the day. The Type-C charging is 60 percent faster than standard USB, and the external replaceable lithium battery means you can carry a spare for all-day projects.

The kit includes a 360-degree rotating base and a patented multifunctional magnetic stand, giving you multiple mounting options for different situations. The IP54 rating with TPR soft rubber protection handles standard indoor jobsite conditions without issue.

Best Applications for the 4×360

This laser is purpose-built for comprehensive interior layout. Commercial interior contractors, drywall installers, and MEP crews who need to lay out wall grids, ceiling grids, and floor references simultaneously will get the most value from the 16-line setup. The sheer number of reference lines eliminates the need to reposition the laser when switching between wall, floor, and ceiling work.

The ground-level horizontal laser makes this particularly useful for wall plate layout and flooring installation where you need a level reference close to the floor surface. Framing crews laying out partition walls in open floor plans can set the Takamine in the center of the space and get references in every direction.

Limitations to Keep in Mind

The button sensitivity is a real issue that multiple users have flagged. It is easy to accidentally switch modes when picking up the unit or adjusting its position. The mounting system does not have a built-in magnet on the laser body itself, so you depend entirely on the included bracket and stand for metal surface attachment. You also cannot use the laser while it is charging, which means you need to plan charging breaks into your workday or invest in a spare battery.

How to Choose the Right Construction Laser for Site Layout

Picking the right construction laser comes down to matching the tool to your most common project types. I have seen contractors buy expensive rotary lasers when a line laser would serve them better, and vice versa. Here is what actually matters when making this decision.

Rotary Lasers vs Line Lasers vs Dot Lasers

Rotary lasers project a spinning beam that creates a level plane you can detect at long distances, typically 1,000 to 2,600 feet. They are the standard for exterior grading, foundation work, and any project requiring elevation control across large areas. The Spectra LL300N-1 and Topcon RL-H5A in our list are rotary lasers, and they excel at horizontal elevation work.

Line lasers project fixed visible lines on surfaces, typically up to 100 to 130 feet indoors. They are best for interior layout work like wall framing, tile installation, and cabinet alignment. The Huepar B03CG and Takamine 4×360 are line lasers that provide 360-degree coverage for complete room layout. Some line lasers, like the DOVOH H3-360G, include receivers for extended outdoor range.

Dot or point lasers project single reference points rather than lines. They are useful for plumb transfer and point-to-point alignment but offer less coverage than line or rotary options. None of our top picks are dot lasers because line and rotary lasers cover those use cases with more versatility.

Green Beam vs Red Beam

Green laser beams are roughly 4 times more visible to the human eye than red beams at the same power output. This matters enormously for indoor work and low-light outdoor conditions. Every line laser in our roundup uses green beams because the visibility advantage is undeniable for layout work.

The trade-off is that green laser diodes consume more battery power than red diodes. For rotary lasers, red beams remain common because you typically use a receiver at distance rather than seeing the beam directly. The Klein Tools 93RLS is an interesting exception that uses a green beam in a rotary format for better indoor visibility.

In direct bright sunlight outdoors, neither green nor red beams are directly visible at distance. You will use a detector or receiver regardless of beam color for exterior work beyond about 30 feet.

Accuracy Specifications That Matter

Accuracy is expressed as a tolerance at a given distance, such as plus or minus 1/8 inch at 100 feet. The tighter the tolerance, the more precise your layout. For foundation and grading work, plus or minus 1/8 inch at 100 feet is standard for professional rotary lasers. The Topcon RL-H5A leads our group at 1/16 inch at 100 feet.

For interior line lasers, accuracy of plus or minus 1/9 inch at 33 feet is common and sufficient for most framing, tiling, and trim work. Do not get caught up in minor accuracy differences at this level. Consistency and reliability matter more than an extra fraction of precision that disappears the first time someone bumps your tripod.

IP Ratings and Jobsite Durability

The IP (Ingress Protection) rating tells you how well a laser handles dust and water. IP54 means protected against dust ingress and water splashes. IP55 adds slightly better water protection. IP66 means fully dust-tight and protected against powerful water jets. IP67 on the Spectra LL100N-2 receiver means it can survive temporary submersion.

For exterior construction work, IP66 is the minimum I would recommend. The difference between IP54 and IP66 becomes apparent the first time you work through a rain event or set up in muddy conditions. The IP ratings on the Spectra and Topcon models reflect their professional-grade design intent.

Range and Working Diameter

Match the laser range to your typical project size. A rotary laser with a 1,150-foot working diameter covers most residential lots comfortably. For large commercial or civil projects, the Topcon RL-H5A at 2,600 feet eliminates the need to relocate your setup. Line lasers with 100 to 130 feet of indoor range handle most interior layout tasks without issue.

Remember that the stated range assumes a clear line of sight and a quality receiver. Obstructions, atmospheric conditions, and low-quality receivers can reduce effective range. Always test your setup against a known benchmark before relying on it for critical layout work.

Battery Life Considerations

Battery life ranges from 8 hours on compact line lasers to 100 hours on the Topcon RL-H5A. For rotary lasers that stay set up all day, look for at least 15 hours of runtime so you are not caught with a dead laser at 3 PM. The rechargeable lithium batteries in newer models like the Klein Tools 93RLS and Firecore FRL300R are more convenient than D-cell alkalines, but make sure you can charge or replace them easily.

One detail I always check: can the laser operate while charging? The DOVOH H3-360G lets you work while plugged into a USB power bank, which is a thoughtful feature for all-day projects. The Takamine 4×360 does not support this, so you need a spare battery or a charging break.

Final Recommendations

After testing these 8 models across multiple jobsites, my top pick for the best construction laser for site layout remains the Spectra Precision LL300N-1. Its combination of professional-grade accuracy, rugged IP66 construction, complete kit, and 5-year warranty makes it the rotary laser that professional contractors trust with their livelihoods. The 931-user review average of 4.7 stars confirms what I found in my own testing.

For contractors who need maximum range on large civil and commercial projects, the Topcon RL-H5A with its 2,600-foot diameter and 1/16-inch accuracy is worth the investment. For interior layout work and smaller projects, the Huepar B03CG Pro delivers remarkable 3-plane green laser performance at a fraction of the cost.

The right construction laser pays for itself on the first project where you avoid a costly rework. Choose based on your typical project size, indoor versus outdoor needs, and how much range you genuinely need. Any of the 8 models in this guide will serve you better than guessing with a spirit level or string line.
