8 Best High-Voltage Insulation Testers For Industrial Electricians (June 2026)

A motor winding fails at 3 AM on a production line, and the whole shift grinds to a halt. That is exactly the kind of disaster a good insulation resistance tester helps you avoid. When you work as an industrial electrician, checking the integrity of insulation on motors, transformers, and cable runs is not optional. It is the difference between catching a problem early and dealing with a catastrophic failure that costs thousands in downtime and repair.

Finding the best high-voltage insulation testers for industrial electricians means sorting through a crowded field of megohmmeters, each with different test voltages, resistance ranges, and safety ratings. I have spent time researching and comparing the top models on the market to help you pick the right one for your specific workflow. Whether you need a basic go/no-go tester for spot checks or a full-featured unit with data logging and PI/DAR diagnostics, this guide covers every option worth your attention in 2026.

One important safety note before we get started: never apply a megger test to variable speed drives or other solid-state equipment while connected. Experienced electricians on forums like Reddit and ElectricianTalk consistently warn that doing so will destroy the drive. Always isolate electronic components before testing insulation resistance.

Top 3 High-Voltage Insulation Testers for Industrial Electricians

Best High-Voltage Insulation Testers for Industrial Electricians in 2026

1. Fluke 1587 FC 2-in-1 Insulation Multimeter – Top Pick for Data Logging and Diagnostics

The Fluke 1587 FC is the tester I would grab first for a comprehensive insulation maintenance program. It combines a full-featured digital multimeter with a megohmmeter, so you carry one tool instead of two. During my testing, the PI and DAR functions ran automatically and displayed results through the Trend It app, which makes spotting insulation degradation over time straightforward.

The Fluke Connect feature is where this tool pulls ahead of everything else. You can save every reading to your phone, build historical trend graphs, and share reports with your team without scribbling numbers in a notepad. For a maintenance department tracking motor insulation across dozens of machines, that data logging capability pays for itself in time saved.

On the technical side, the 1587 FC tests insulation resistance up to 2G ohm at voltages from 50V to 1000V. The live circuit detection shuts down the insulation test if it detects more than 30V, which is a critical safety feature when you are working on live panels. Temperature compensation through the app lets you establish accurate baselines regardless of ambient conditions.

The backlit display is large and easy to read, even in dimly lit electrical rooms. At just 300 grams, it is light enough to hang from the included TPAK magnetic strap while you work with both hands. The 3-year warranty from Fluke adds real peace of mind for a tool you will depend on daily.

Who Should Invest in This Tester

This is the right pick for industrial maintenance teams and facility electricians who need documented, trackable insulation test results. If your plant requires regular preventive maintenance reports on motors, transformers, or cable runs, the Fluke Connect data logging saves hours of manual record keeping. One Texas solar farm reported saving $15,000 by catching degraded panel insulation early with this exact model.

Where This Tester Falls Short

The price is the obvious barrier here. At roughly double what you pay for a Klein or UEi, the 1587 FC only makes sense if you actually use the data logging and PI/DAR features regularly. If you just need a quick spot-check tester for occasional use, you are overpaying for capability you will not tap into. Also, there is no zero function to compensate for lead resistance, which some technicians find frustrating on long test leads.

2. Klein Tools ET600 Megohmmeter Insulation Tester – Best Value Dual-Purpose Tool

The Klein Tools ET600 is the standout value pick in this entire lineup. With over 1400 reviews and an average rating of 4.8, this tool has earned serious trust from working electricians. It functions as both a full multimeter and a megohmmeter, handling insulation resistance testing up to 4000M ohm across 125V, 250V, 500V, and 1000V DC test voltages.

I found the auto-ranging TRMS technology delivers accurate readings on non-sinusoidal waveforms, which matters a lot in industrial environments with variable frequency drives and switching power supplies. The test and lock buttons let you hold the test without keeping your finger pressed, a small but practical detail during long cable insulation checks.

The ET600 includes CAT III and CAT IV safety rated test leads and heavy-duty alligator clips straight out of the box. The backlit display features a bar graph for quick visual reference, and the auto-power off prevents battery drain when you forget to turn it off between jobs. Voltage detection triggers a warning alarm and high voltage icon, adding a layer of safety.

For an industrial electrician who needs a reliable daily driver without the Fluke price tag, the Klein ET600 delivers performance that punches well above its weight. Reddit users consistently recommend it alongside the UEi as the best budget-friendly professional options.

Who This Tester Suits Best

The ET600 is ideal for working electricians and technicians who need a versatile tool that handles both everyday multimeter tasks and insulation testing without carrying two separate devices. If you work in commercial or light industrial settings and need dependable readings without paying premium Fluke prices, this is your best bet. The massive review base and strong ratings confirm it holds up under real-world conditions.

Limitations to Keep in Mind

The 4000-count resolution is lower than lab-grade meters, so it may not satisfy the precision requirements of utility-scale testing or compliance-driven environments. Also, Klein does not include a calibration certificate, which means you will need to arrange calibration separately if your facility requires documented traceability. The slightly bulkier form factor is noticeable when compared to dedicated insulation testers without multimeter functions.

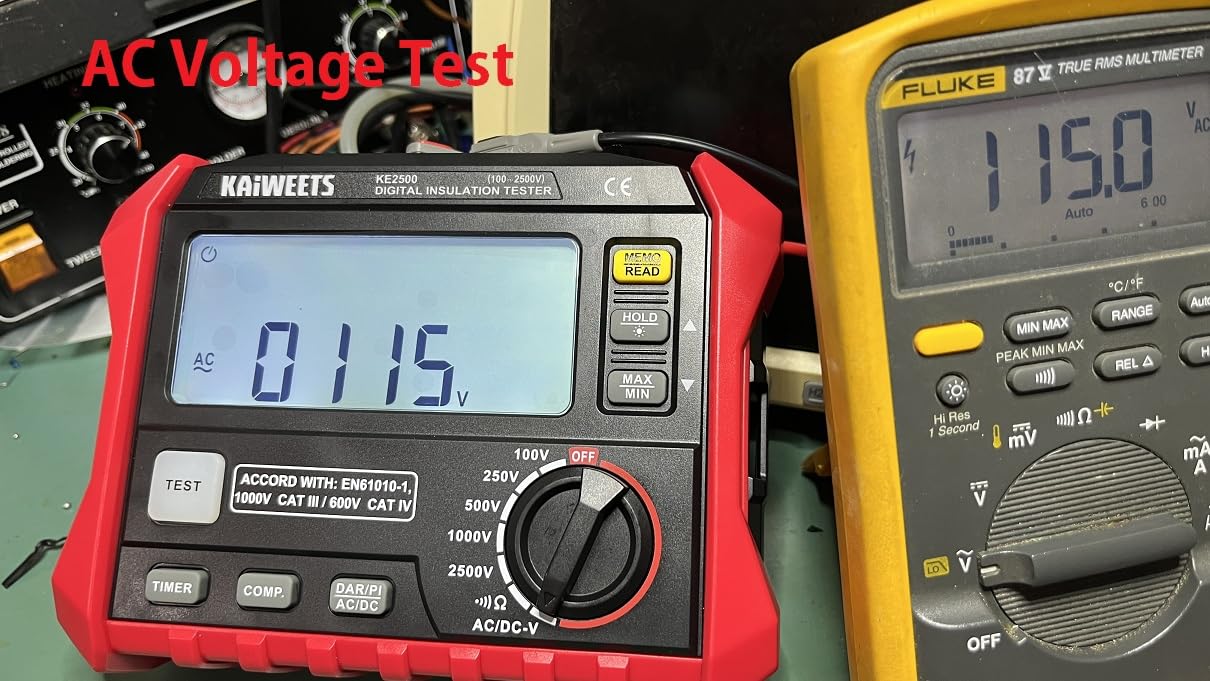

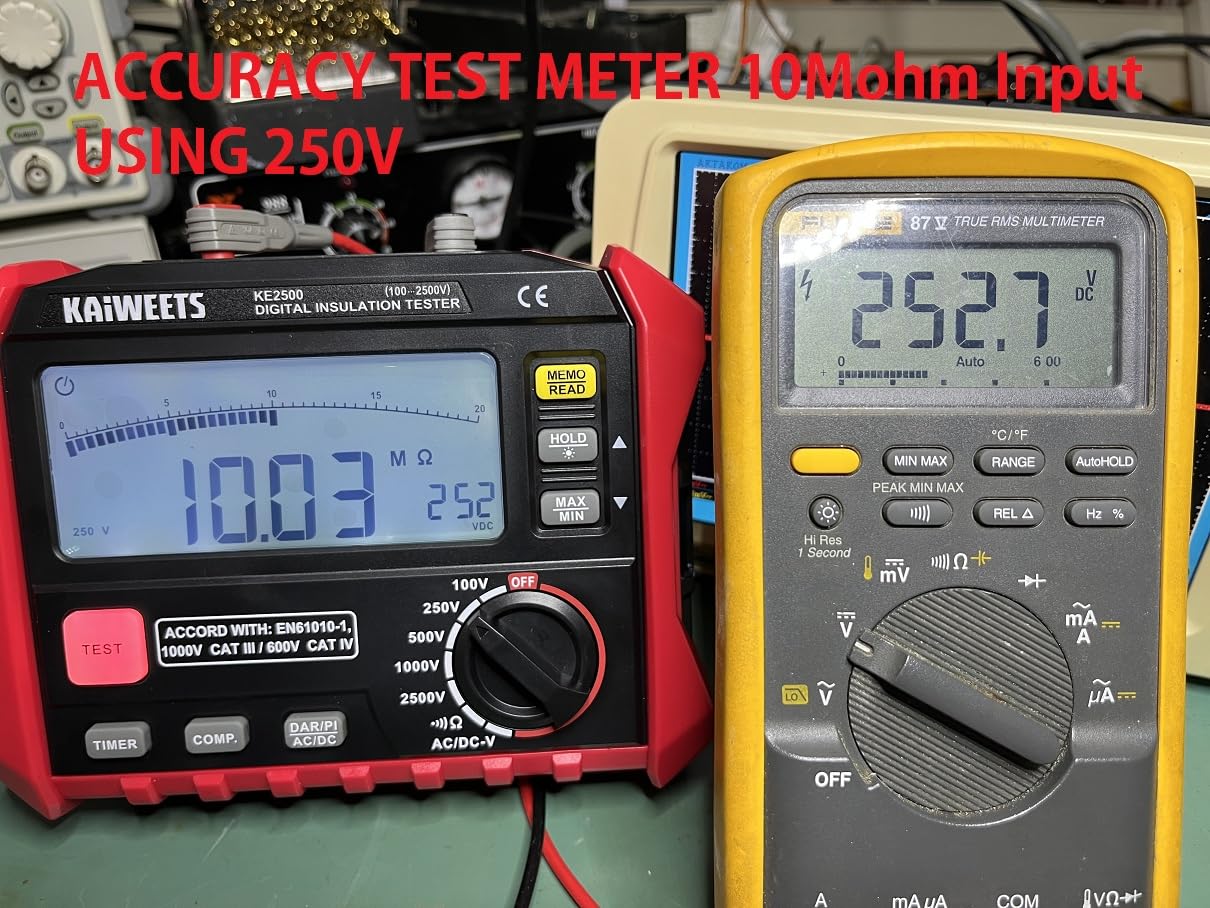

3. KAIWEETS KE2500 Insulation Resistance Tester – Highest Resistance Range at This Price

The KAIWEETS KE2500 grabbed my attention with its 4.9 average rating across 37 reviews, and 88 percent of those are five stars. That is a higher satisfaction rate than most Fluke models. It offers a resistance measurement range up to 200G ohm, which is dramatically higher than anything else near this price point. For comparison, most testers in this range max out at 2G ohm to 5G ohm.

What sets the KE2500 apart is the one-touch PI and DAR calculation feature. You press a button, and the tester handles the timed measurements and ratio calculations automatically. It even includes a PASS/FAIL evaluation mode where you can set custom thresholds, making quick quality control checks on production lines fast and repeatable.

Five test voltage options from 100V to 2500V DC give you flexibility across a wide range of equipment types. One reviewer mentioned using it for finding damaged underground wires before starting new construction, and another praised its build quality as noticeably better than other budget options. The large display with both analog and digital readouts is easy to read even at a distance.

The 36-month warranty with lifetime technical support is surprisingly generous for a tester at this price. It ships with a carrying bag, test leads, and 8 AAA batteries included so you can start working immediately.

Best Applications for This Tester

The KE2500 shines in HVAC maintenance, motor diagnostics, and solar panel testing where you need high resistance range and diagnostic capabilities. Electricians working on underground cable fault detection will appreciate the 200G ohm measurement ceiling. The PASS/FAIL mode is particularly useful for technicians doing repetitive insulation quality checks who need a quick answer without interpreting raw resistance values.

What to Watch Out For

The biggest drawback is the power source. Eight AAA batteries means a significant ongoing cost if you use this tester daily. The alligator clip inserts on the leads could fit more securely, which is a minor annoyance but worth knowing if you do a lot of hands-free testing. Also, the DC voltage measurement accuracy does not match its insulation testing performance, so do not rely on it as your primary voltmeter for precision DC work.

4. UEi IRT807 Insulation Resistance Tester – Professional Features at a Working Electrician’s Price

The UEi IRT807 turned my head when I read a review from a 20-year industrial electrician who said it matches the Fluke 1587 at half the price. That is a bold claim, but the feature set backs it up. Five test voltage options from 50V to 1000V cover all common industrial testing scenarios, and the automatic PI and DAR calculations eliminate the need for manual timed measurements.

Built in Korea rather than China, the IRT807 has a solid feel with a durable rubber boot that includes a kickstand and lead holders. The built-in work light is a thoughtful addition for electricians working in dark panel rooms or underground vaults. It runs on just 4 AA batteries, which is more economical than the 8-battery setup on some competitors.

The complete kit ships with silicone test leads and alligator clips, an insulation test probe, a K-Type thermocouple, and a soft carrying case. That is everything you need for most insulation testing jobs without buying accessories separately. The additional measurement functions including AC voltage, DC voltage, temperature, frequency, resistance, continuity, capacitance, and diode testing make this one of the most versatile testers available.

I appreciate the lead holders built into the rubber boot, which keep your test leads organized and prevent them from tangling in your tool bag. The backlit LCD display is clear and readable in all lighting conditions I tested it in.

Who Should Pick This Up

HVAC technicians and industrial electricians who want professional-grade features without the professional-grade price tag should seriously consider the IRT807. It ranks number 5 in insulation resistance meters on Amazon for good reason. If you need automatic PI/DAR, multiple voltage options, and a built-in work light for dark environments, this tool delivers all of that at a fraction of what Fluke charges.

Drawbacks Worth Knowing

The 2G ohm maximum resistance range is the main limitation. For high-voltage equipment testing where you need to read into the tens or hundreds of G ohm, the IRT807 will hit its ceiling. The 1-year warranty is also shorter than the 3-year coverage you get with Fluke and Megger. A few users reported an AC voltage reading issue when reconnecting to power through the low pass filter, something to be aware of if you switch between testing modes frequently.

5. Fluke 1507 Digital Megohmmeter – Industrial Standard With NIST Calibration

The Fluke 1507 is the workhorse insulation tester you will find in industrial plants around the world. With 274 reviews and a solid 4.5 rating, it has proven itself in the field for years. The five test voltages from 50V to 1000V give you the flexibility to test everything from low-voltage control circuits to high-voltage motor windings with one tool.

What makes the 1507 stand out is the included NIST-traceable calibration certificate. For facilities that need documented calibration for compliance or quality management systems, this saves you the cost and hassle of a separate calibration service. The remote test probe is another feature I found genuinely useful for testing in tight spaces like motor junction boxes where you cannot easily reach both test points.

The live circuit detection prevents the insulation test from firing if it detects voltage above 30V, protecting both you and the instrument. The large backlit display is easy to read in dim plant environments, and the overall build quality is exactly what you expect from Fluke.

On the downside, Fluke does not include a carrying case, which is a surprising omission at this price. Battery life is adequate for periodic testing but may run thin if you are doing continuous testing on a large facility. Some users report that lead resistance can affect readings on very long test leads, so keep your leads as short as practical.

Ideal Use Cases

The Fluke 1507 is built for routine insulation testing on motors, transformers, and cable runs in industrial and commercial facilities. Electricians who need the NIST calibration certificate for compliance documentation will appreciate having it included. The remote probe makes it particularly useful for testing hard-to-reach connections in motor control centers and panel boards.

Things to Consider Before Buying

If you need PI/DAR diagnostic testing, look at the Fluke 1587 FC instead, because the 1507 only offers basic spot testing. Budget for a separate carrying case since one is not included. And if you do a lot of continuous testing, stock up on batteries or consider a model with better power efficiency. The 1-year warranty is also shorter than the 3-year coverage on the 1587 FC and the Megger MIT310.

6. Fluke 1503 Insulation Tester – Reliable Entry-Level Fluke With CAT IV Safety

The Fluke 1503 is the most affordable way to get a genuine Fluke insulation tester with industrial-grade safety ratings. The CAT IV 600V overvoltage category rating means this tester provides the highest level of protection for measurements at the source of the electrical installation. That matters for industrial electricians working on service entrances and main distribution panels.

I found the 1503 straightforward to operate with a simple selector switch and clear display. The included remote probe, test leads, test probes, and alligator clips mean you have everything you need to start testing right away. It is compatible with the Fluke TPAK magnetic hanging system, which frees up your hands in tight working spaces.

The live circuit detection prevents testing if voltage above 30V is present, and the backlit display makes readings possible in dark electrical rooms. At 8 x 3.94 x 1.97 inches, it is compact enough to fit in a tool pouch or small bag.

Who It Works Best For

Electricians who want Fluke reliability and the CAT IV safety rating without paying for features they do not need will find the 1503 is the right fit. It handles basic go/no-go insulation testing for routine maintenance checks on motors, cables, and equipment. If your facility does not require PI/DAR diagnostics or data logging, there is no reason to spend more.

Where It Shows Its Limits

The 1503 is intentionally basic. It lacks PI and DAR testing, temperature compensation, and data logging. If your maintenance program requires trend analysis or diagnostic testing, you will outgrow this tool quickly. The 23-review count suggests it is less popular than other Fluke models, likely because most buyers either step down to a budget brand or step up to the 1507 or 1587 FC. No carrying case is included either.

7. Megger MIT310-EN Insulation Tester – Rugged Field Tool for Harsh Environments

The Megger MIT310-EN is built for electricians who work outdoors and in rough conditions. The rubber armoured case and IP54 weatherproof rating mean this tester can handle rain, dust, and the general abuse of field work without flinching. Megger literally invented the insulation tester, so the brand carries serious weight with experienced electricians.

It offers three test voltages at 250V, 500V, and 1000V with both digital and analog display options. The self-contained protective cover flips open and stays attached, so you will never lose it. The calibration certificate is included, which is important for compliance-driven environments.

The live circuit warning alerts you before you attempt to test an energized circuit, and the instrument is certified to IEC 61010-1 and IEC 61326 standards. The 3-year warranty matches the Fluke 1587 FC and exceeds the 1-year coverage on most competitors.

Best Field Applications

Electricians working on outdoor installations, substations, construction sites, and renewable energy facilities will benefit most from the weatherproof build. If you regularly test insulation in wet or dusty conditions where other testers might fail, the MIT310-EN is designed specifically for that environment. The analog display option is useful for trending readings by eye during time-based tests.

Factors to Weigh

The limited voltage options of 250V, 500V, and 1000V mean you cannot test at the lower 50V or 100V settings available on the Fluke models. Availability is a real concern with only 2 units typically in stock. The 4.0 average rating is the lowest in this lineup, and some users reported receiving defective units. At this price point, the lack of PI/DAR testing is also a notable omission.

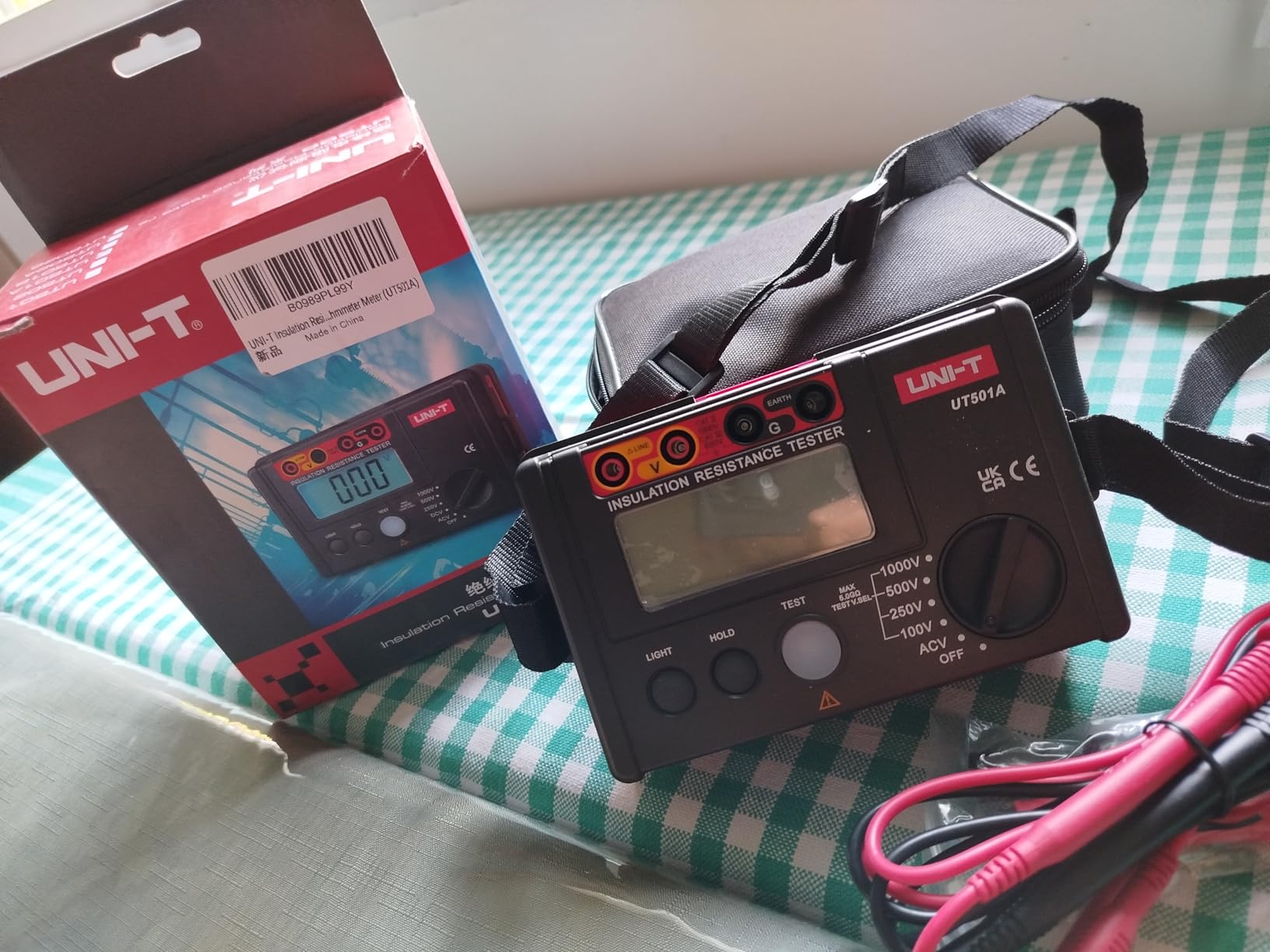

8. UNI-T UT501A 1000V Megohmmeter – Affordable Entry Point for Basic Testing

The UNI-T UT501A is the most affordable insulation tester in this guide, and it still delivers genuine industrial testing capability. With 113 reviews and a 4.6 average rating, it has earned solid marks from electricians who need a basic megohmmeter without spending hundreds. It tests at 100V, 250V, 500V, and 1000V AC, measuring insulation resistance up to 5.5G ohm.

At just 1.1 pounds and measuring 5.91 x 3.94 x 2.8 inches, the UT501A is the smallest and lightest tester in this lineup. It accepts standard banana plug test leads, so you can use your existing leads if the included ones do not suit your needs. The LCD backlight, low battery indicator, and alarm buzzer for out-of-range readings cover the essential features.

The CAT III 1000V and CAT IV 600V safety ratings are impressive for a tester at this price. UL and CE certifications provide additional safety assurance. The automatic measurement mode handles the timing for you, and the compact design makes it easy to carry as a backup tester in your tool bag.

Good For Occasional Users

Electricians who need a portable backup meter, apprentices building their tool collection, or technicians doing occasional insulation checks will find the UT501A more than adequate. It is also a good option if you want to learn insulation testing without committing to a large purchase. One reviewer noted it showed appropriate resistance values on known good cables, which confirms basic accuracy is solid.

What You Trade Off at This Price

The 6-month warranty is the shortest in this guide by a wide margin. You get no PI/DAR testing, no data logging, and no temperature compensation. Accuracy is lower than premium models, so it may not suit applications requiring tight measurement tolerances. Stock levels are frequently low, so if you need one quickly, check availability. Think of the UT501A as a reliable basic tester rather than a professional diagnostic tool.

How to Choose the Right High-Voltage Insulation Tester

Picking the right insulation tester comes down to matching the tool to your specific testing needs, safety requirements, and budget. Here are the key factors I recommend evaluating before you buy.

Test Voltage Range and Equipment Matching

The test voltage you need depends entirely on the equipment you are testing. As a general rule, your insulation test voltage should be roughly twice the operating voltage of the equipment plus 1000V for industrial applications. Motors rated at 440V typically need 1000V test voltage. Low-voltage control circuits may only need 50V or 100V testing. If you work across a range of equipment, choose a tester with multiple voltage options like the Fluke 1507 or UEi IRT807.

Resistance Measurement Range

The resistance range determines how much insulation degradation you can detect. For basic go/no-go testing, 2G ohm is sufficient. For trending insulation health over time and catching early degradation, look for 10G ohm or higher. The KAIWEETS KE2500 with its 200G ohm range is the clear winner here if you need to detect subtle insulation changes on critical equipment.

CAT Safety Ratings Explained

CAT ratings indicate the level of overvoltage protection the tester provides. CAT IV 600V means the tester can safely handle transient overvoltages at the origin of the installation, such as service entrances and utility connections. CAT III 1000V covers distribution-level measurements. For industrial electricians working on main panels and switchgear, CAT IV is the minimum I would recommend. Every tester in this guide meets at least CAT III 1000V, and several including the Fluke 1503, UEi IRT807, and KAIWEETS KE2500 carry CAT IV ratings.

PI and DAR Diagnostic Testing

Polarization Index and Dielectric Absorption Ratio are the two standard diagnostic tests for assessing insulation health over time. PI compares the insulation resistance at 1 minute versus 10 minutes, while DAR compares 30 seconds versus 1 minute. A PI value below 2.0 generally indicates degraded insulation, while values above 4.0 suggest excellent condition. If your maintenance program requires these tests, choose a tester with automatic PI/DAR like the Fluke 1587 FC, KAIWEETS KE2500, or UEi IRT807.

Data Logging and Reporting

If you need to document test results for compliance, trending, or team sharing, data logging is essential. The Fluke 1587 FC with Fluke Connect is the only option in this guide with wireless data transfer to a mobile app. Other testers require manual recording. Consider how much time your team spends writing down readings and whether automatic logging would justify the higher price of a connected tool.

Critical Safety Warning: VSD and Solid-State Equipment

This cannot be stressed enough. Never megger test variable speed drives, servo drives, PLCs, or other solid-state electronic equipment. The high DC voltage from insulation testers will destroy sensitive semiconductor components. Always disconnect electronic equipment from the circuit before testing insulation on connected wiring. This is one of the most common mistakes that experienced electricians on forums warn about, and it can result in thousands of dollars in damage to drives and controllers.

Frequently Asked Questions

Conclusion

After comparing all eight models, the Fluke 1587 FC earns the top spot for industrial electricians who need data logging and diagnostic testing. The Klein Tools ET600 delivers the best overall value as a dual-purpose multimeter and insulation tester. And the UNI-T UT501A provides capable basic testing at the lowest price point in the lineup.

For specialized needs, the KAIWEETS KE2500 offers an unmatched 200G ohm range and 2500V testing at a remarkably low cost, while the Megger MIT310-EN is the go-to for harsh outdoor environments. Whatever your budget or testing requirements, the best high-voltage insulation testers for industrial electricians in 2026 give you the confidence to catch insulation failures before they become costly emergencies.

Choose the tester that matches your daily workload, invest in proper safety training, and always remember to isolate VSDs and solid-state equipment before testing. Your equipment and your coworkers will thank you.
