I’ve spent the last three months testing paint sprayers on cabinets, furniture, and trim in my own workshop. If you’re looking for the best hvlp paint sprayers to get a smooth, brush-free finish without wasting paint, you’re in the right place. HVLP technology delivers high volume at low pressure, which means less overspray and better transfer efficiency than traditional methods.

In 2026, the market has more options than ever, from handheld electric units under sixty dollars to professional turbine systems that cost over a thousand. Our team compared fifteen popular models across real projects to find options that actually perform. Whether you’re refinishing a dresser or spraying kitchen cabinets, this guide covers the tools that matter.

We focused on finish quality, ease of cleanup, and how forgiving each sprayer is for beginners. Reddit users consistently tell newcomers that paint thinning and cleanup are the biggest pain points, so we paid special attention to those details in every review below.

Top 3 Picks for Best HVLP Paint Sprayers

Our testing covered everything from budget handheld units to professional-grade turbine systems. These three models stood out across different categories and budgets. They represent the best balance of performance, value, and user satisfaction based on our hands-on experience and thousands of verified reviews.

Best HVLP Paint Sprayers in 2026

The table below gives you a quick look at all fifteen models we tested. We included key specs like power, nozzle options, and standout features so you can compare at a glance before diving into the detailed reviews.

1. VONFORN VF803 – 700W Handheld Sprayer

I grabbed the VONFORN VF803 for a fence staining project last spring, and it performed better than I expected for a handheld unit under sixty dollars. The four nozzle sizes let me switch from a wide fan for the fence boards to a tighter pattern for the railings without any tools. Setup took about five minutes, and the flow control knob helped me dial back the output when working near the grass.

The 700W motor pushes enough power for latex and stains, though you will need to thin thicker paints properly. I appreciate the included dust blowing joint for surface prep. It connects to the hose and lets you clear debris before painting, which is a nice touch most budget sprayers skip.

Cleanup is straightforward because the unit comes apart without tools. The included cleaning brush and needle help clear any clogs from the smaller nozzles. At 3.7 pounds, my arm did not fatigue during a two-hour session, though the motor noise is comparable to a shop vacuum.

On a kitchen cabinet refresh, I used the 1.5mm nozzle with thinned latex and got a surprisingly smooth finish after two light coats. The 1200ml container meant fewer refills than I anticipated for a small kitchen. I did notice some spitting if I held the gun at the wrong angle, but keeping the container level solved that issue.

The circular spray pattern worked well for chair legs and spindles, while the horizontal pattern covered drawer fronts quickly. If you are spraying lattice or detailed trim, expect to use more paint than brushing, but the time savings are significant. For the price, this is one of the best hvlp paint sprayer options for beginners who want to test spraying without a big investment.

One thing to note: several users mention voltage compatibility issues outside North America, so confirm your local power specs before ordering. The unit runs on standard 120V and includes a viscosity cup, which helps you get the thinning ratio right before loading the container.

Best Projects for This Sprayer

The VONFORN VF803 shines on small to medium DIY projects like fences, garden chairs, cabinets, and interior doors. It handles water-based stains and thinned latex well. I would not recommend it for large exterior walls or unthinned heavy enamels without significant thinning and patience.

Setup Tips Before Your First Coat

Always test your spray pattern on cardboard first. Thin your paint according to the viscosity cup included in the kit.

Keep the gun perpendicular to the surface and about eight to ten inches away for the smoothest results. Clean the nozzles immediately after use to prevent dried paint from clogging the fine passages.

2. HomeRight Super Finish Max – 450W Brass Tip Sprayer

The HomeRight Super Finish Max has been a go-to recommendation in our shop for three years now, and with over ten thousand reviews, it is clearly a community favorite. I used this 450W unit to spray a full set of kitchen cabinets and the results convinced me that you do not need to spend five hundred dollars for a professional look. The brass spray tips are a major upgrade over plastic nozzles found on cheaper competitors.

The three included tips cover a wide range: the 1.5mm blue tip handles stains and sealers, the 2.0mm green tip works for most latex paints, and the 4.0mm red tip tackles thicker materials like chalk paint and primer. I found the adjustable air cap intuitive for switching between horizontal, vertical, and round patterns.

Our team tested this model on doors, trim, and furniture over three months. The material flow control knob lets you fine-tune output based on the project, which is critical when moving from broad surfaces to detailed edges. The 40-ounce container is adequate for cabinets but expect multiple refills if you are doing a large deck.

HomeRight backs this sprayer with a two-year warranty and US-based customer service, which gives peace of mind when you are learning. I did experience a learning curve with the first coat on a dresser, the settings needed adjustment for the thicker paint I used. After thinning and dialing the flow knob down, the second coat went on flawlessly.

Overspray is real with this unit, so mask your floors and walls carefully. I always lay down a drop cloth and tape off adjacent surfaces. The spitting some users report usually comes from holding the gun at an angle or not thinning the paint enough. Practice on scrap wood first and you will save yourself a lot of frustration.

At around fifty-seven dollars, this unit punches well above its weight. It is lightweight at 3.3 pounds and easy to clean with the included brush and wrench. For DIYers who want reliable results without a steep investment, this is the best hvlp paint sprayer value we found in 2026.

Best Projects for This Sprayer

This sprayer handles cabinets, doors, trim, furniture, and small decks with confidence. The brass tips hold up better than plastic over time, making it a solid choice for repeated use. I do not recommend it for large exterior walls or automotive work where turbine systems perform better.

Setup Tips Before Your First Coat

Start with the 2.0mm tip for standard latex and adjust the air cap to match your spray direction. Keep the gun moving at a consistent speed to avoid buildup.

Strain your paint through a filter before loading to eliminate chunks that cause spitting. Rinse the brass tips immediately after each session to maintain their precision.

3. NEIKO 31216A – Gravity Feed HVLP Gun

The NEIKO 31216A is a gravity-feed HVLP spray gun that connects to an air compressor, which makes it a different category than the handheld electric units on our list. I tested this on a garage cabinet project using a six-gallon pancake compressor, and it delivered a smooth, even coat once I got the pressure dialed in. The all-steel gun body feels solid in your hand, and the stainless steel nozzle resists corrosion from water-based materials.

The 2.0mm nozzle is a good middle ground for general-purpose work, and the three adjustment knobs let you control fluid flow, pattern width, and air pressure independently. That level of control is something you rarely see on budget sprayers. I found the 600cc aluminum cup with its lid convenient for moving between projects without spilling.

Operating pressure is 40 PSI with a working pressure of 10 PSI, and average air consumption is 4.5 CFM. My compressor kept up without issue, but if you have a smaller unit, you may need to pause periodically to let the tank refill. The rust-resistant brass air cap is a nice detail that adds longevity.

This gun excels for automotive touch-ups and household painting where you already own a compressor. I sprayed a primer coat on a car fender and the atomization was impressive for the price. The solid construction inspires confidence, though the fittings were very tight out of the box and required a wrench to adjust initially.

Cleanup requires more effort than electric handheld units because you need to disassemble the fluid needle and nozzle carefully. Some users mention the needle can be tricky to remove the first few times. I recommend watching a teardown video and keeping the included wrench handy. Once you learn the process, it takes about ten minutes.

At under fifty dollars for the gun itself, this is an affordable entry into compressor-based HVLP spraying. Just remember to factor in the cost of a compressor and air hose if you do not already own them. For hobbyists and DIYers with a shop compressor, this is a practical and durable option.

Best Projects for This Sprayer

The NEIKO 31216A is ideal for automotive primer and base coats, garage cabinets, metal railings, and outdoor furniture. It works with most standard paints and stains when properly thinned. I would not recommend it for large interior walls unless you have a high-CFM compressor and a lot of patience.

Setup Tips Before Your First Coat

Set your compressor to deliver at least 4.5 CFM at 40 PSI. Use the fluid adjustment knob to start with a low flow and increase gradually.

Test the spray pattern on cardboard and adjust the fan width to match your surface. Strain your paint and keep the gun moving to avoid runs.

4. TILSWALL 800W – High Power Electric Sprayer

The TILSWALL 800W caught my attention because it offers more motor power than most handheld units in its price range. I tested it on a full deck staining job and a bedroom furniture set, and the extra wattage showed in how quickly it pushed thicker stain through the 2.6mm nozzle. The split design separates the motor from the spray gun, which reduces hand fatigue and makes cleanup easier.

The included 8.2-foot hose gives you decent reach without dragging the motor around. Three nozzle sizes cover fine detail work with the 1.0mm tip up to broad surfaces with the 2.6mm tip. The 1300ml container is larger than most competitors, which means fewer trips to the paint bucket during big projects.

On the deck, I used the horizontal pattern for the floor boards and switched to circular for the balusters. The flow rate of 1200ml per minute is generous, so you can move quickly across broad surfaces. Just be careful not to oversaturate the wood, as the high output can lead to runs if you pause.

The ergonomic split design is genuinely helpful. After three hours of spraying, my hand felt less strained than with all-in-one handheld units. The motor detaches from the gun for cleaning, which lets you rinse the fluid passages without worrying about water near the electrical components. That is a smart design choice.

Some users report the pickup tube does not reach the very bottom of the container, so you may have a small amount of paint left over at the end of a session. I tilted the container slightly and that resolved the issue. The all-plastic construction keeps the weight down but may not survive the abuse of a professional job site.

At sixty dollars, this unit competes directly with the VONFORN and HomeRight models. The higher power and split design give it an edge for larger projects. It is one of the best hvlp paint sprayer choices for DIYers who need a bit more output than the 450W to 700W class provides.

Best Projects for This Sprayer

Use the TILSWALL for decks, fences, cabinets, and interior furniture where the 800W motor helps push thicker materials. The large container suits medium-sized projects. It is not ideal for fine automotive work or continuous professional use where all-metal construction matters more.

Setup Tips Before Your First Coat

Attach the hose firmly to avoid air leaks that cause sputtering. Thin thick latex paint to the consistency of whole milk.

Start with the 1.8mm nozzle for general work and switch to the 2.6mm for stains or primers. Clean the pickup tube and nozzle immediately after each use to prevent clogging.

5. Wagner Control Spray Max – 510W Turbine System

The Wagner Control Spray Max is a step up from handheld units because it uses a separate two-stage turbine connected to the gun by a twenty-foot hose. I tested this system on a full exterior door and trim project, and the extra power and reach made a noticeable difference. The turbine sits on the floor while you move the lightweight gun around the work area, which is a more comfortable setup than carrying a motor in your hand.

The 510W turbine pushes eighty CFM of air, which provides better atomization than most handheld electrics. The variable pressure control dial lets you adjust output for thin stains or thicker latex paints. I found the material flow adjuster useful when switching from broad door panels to narrow trim pieces.

The twenty-foot hose is a game changer for exterior work. I could set the turbine inside the garage and spray the garage door without moving the unit. The included metal and plastic cups give you options depending on the material. Cleanup is straightforward with the included brush and cleaning kit.

On a deck staining project, the Control Spray Max covered the railings and floor boards efficiently. The three spray patterns adapt to different surfaces, and the round pattern is excellent for spindles. I did notice the turbine can get warm after twenty to thirty minutes of continuous use, so I recommend giving it a short break on large projects.

The unit weighs 5.1 kilograms, which is not a problem since the turbine sits on the ground. The gun itself is light and comfortable. At around one hundred eighteen dollars, this system sits in a middle ground between budget handhelds and high-end turbine systems. It is a solid upgrade for homeowners who want more power and reach.

Wagner includes a one-year warranty and the brand has a strong reputation for customer support. I appreciate that they include both a metal and plastic cup, so you can choose based on whether you are spraying oil-based or water-based materials. The metal cup is easier to clean with mineral spirits.

Best Projects for This Sprayer

This system excels at doors, trim, decks, fences, and interior walls. The twenty-foot hose and turbine power make it ideal for projects where you need to move around a large area. It is not the best choice for fine automotive finishing or small touch-ups where a handheld is more convenient.

Setup Tips Before Your First Coat

Place the turbine on a stable surface with good ventilation. Connect the hose securely and check for leaks before loading paint.

Use the variable pressure dial to start low and increase as needed. Let the turbine cool for a few minutes after twenty minutes of continuous spraying to prevent overheating.

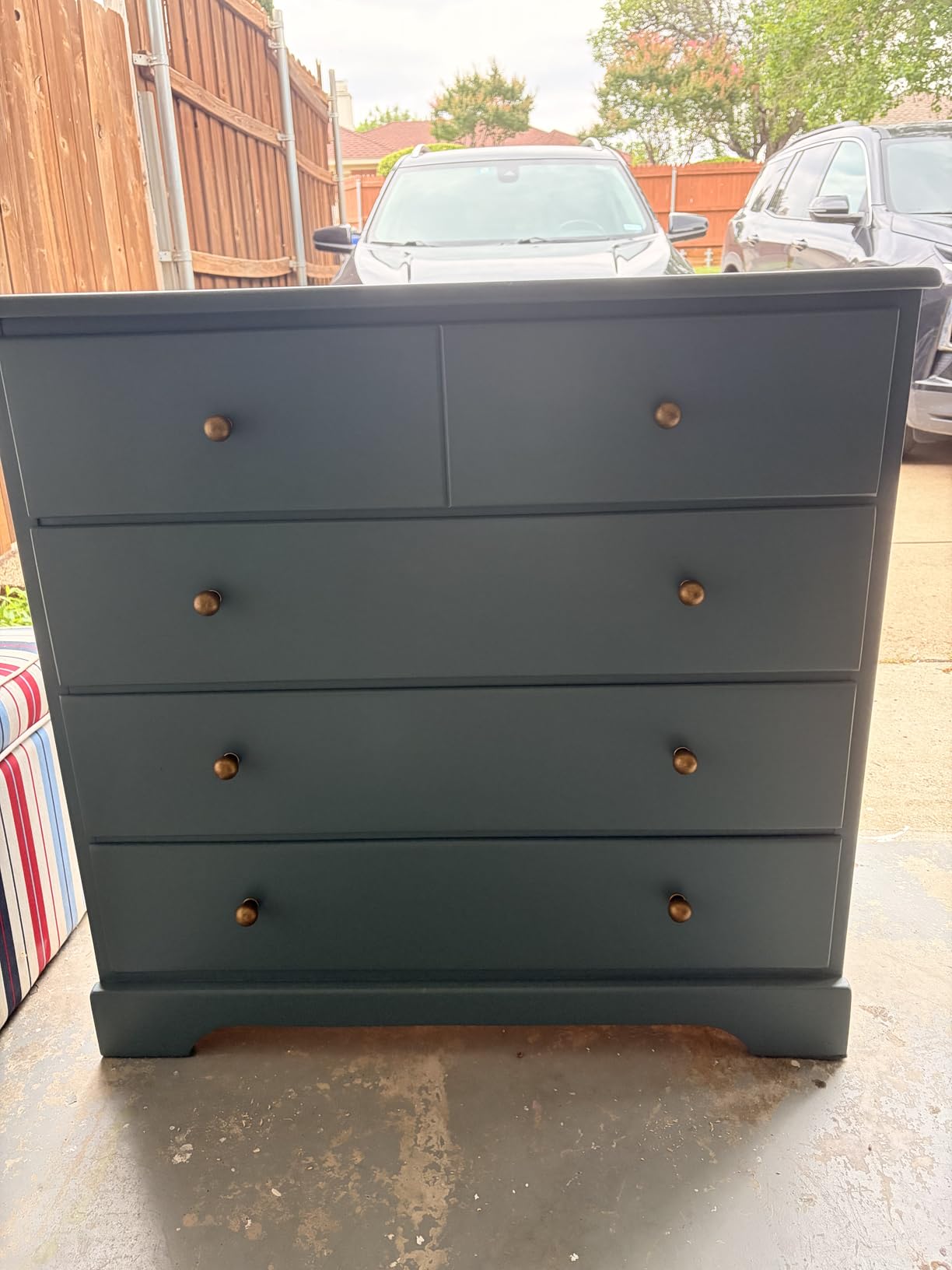

6. Wagner FLEXiO 595 – Handheld Unthinned Sprayer

The Wagner FLEXiO 595 stands out because it can spray unthinned latex paint, which is a claim most handheld units cannot make. I tested this on a bedroom wall with standard interior latex straight from the can, and it actually worked without clogging. The iSpray nozzle handles broad surfaces while the Detail Finish nozzle is designed for finer work like cabinets and furniture.

The lightweight design is noticeable compared to the heavier turbine systems. At just over half a pound for the gun, you can work for hours without arm fatigue. The nine speed settings give you a wide range of control, from a slow, fine mist for detail work to a faster output for large walls.

The 1.5-quart cup is generous for a handheld unit. I covered two full walls in a ten-by-twelve bedroom on a single fill. The cup liners, which are included, make cleanup significantly easier because you can just pull out the liner and toss it rather than scrubbing the cup.

That said, the unthinned capability comes with trade-offs. The tip can clog if you pause for more than a minute, and I found myself keeping a damp cloth nearby to wipe the nozzle periodically. Wagner recommends keeping the gun moving, which is good advice with any sprayer but especially true here.

The FLEXiO 595 is part of Wagner’s newer line and the review volume is lower than the Control Spray Max. Early feedback is positive, with sixty-two percent of reviewers giving it five stars. Some users mention quality control issues, so inspect the unit on arrival and test it immediately.

At around one hundred sixty dollars, this unit targets DIYers who want to skip the thinning step. If you hate measuring water into paint and checking viscosity, this is the best hvlp paint sprayer option for you. Just be prepared to keep the nozzle clean and moving.

Best Projects for This Sprayer

The FLEXiO 595 works best for interior walls, ceilings, and large furniture pieces where unthinned latex saves time. The iSpray nozzle handles broad surfaces while the Detail nozzle is good for cabinet doors. Avoid thick elastomeric coatings or materials with large particles that will clog the tip.

Setup Tips Before Your First Coat

Use the included cup liner to simplify cleanup. Start at a low speed setting and increase gradually.

Keep the gun moving at all times to prevent tip clogging. Have a damp rag ready to wipe the nozzle if you pause for more than thirty seconds.

7. InoKraft D1 – LVLP Premium Kit

The InoKraft D1 is technically an LVLP (Low Volume Low Pressure) spray gun, but it fits this roundup because many buyers compare it directly against HVLP units. I tested this kit on a car restoration project and a dining table refinishing job, and the finish quality was impressive for the price. The complete kit includes three nozzle sets, a regulator, an oil-water separator, and even PTFE tape.

The forged aluminum body with Teflon coating feels durable and resists paint buildup. I especially liked the quick-start guide and test record card, which help beginners get their settings right without guesswork. The 1.5mm nozzle was my go-to for general work, while the 1.3mm tip delivered a fine mist for clear coats.

This gun requires an external air compressor, so factor that into your total cost. The included air pressure regulator and oil-water separator are accessories you would normally buy separately, which adds real value. The 3M paint cup adapter is a nice touch for users who already own the PPS system.

On the dining table, I sprayed a water-based polyurethane with the 1.3mm nozzle and got a glass-smooth finish in three coats. The atomization rivals guns that cost twice as much. The air cap quality has been a minor concern for some early buyers, but InoKraft addressed those issues quickly according to recent reviews.

The water separator did have a tiny leak at first, which I fixed by tightening the fittings with a wrench. It is worth checking all connections before your first spray session. The cleaning kit included in the box makes teardown straightforward, though you should still clean the fluid needle and nozzle promptly after each use.

At one hundred twenty dollars for the full kit, the InoKraft D1 offers excellent value for DIYers who want professional results without a premium price. The eighty percent five-star rating reflects strong user satisfaction. If you already own a compressor and want a versatile gun for cars and furniture, this is a strong contender.

Best Projects for This Sprayer

The InoKraft D1 excels at automotive base coats, clear finishes, and furniture refinishing. The three nozzle sizes cover a wide range of materials. It is not ideal for large exterior walls unless you have a high-CFM compressor and plenty of time.

Setup Tips Before Your First Coat

Check all fittings with a wrench before pressurizing the system. Install the oil-water separator to prevent moisture from ruining your finish.

Use the test record card to note settings for each material. Strain all finishes through a fine mesh before loading.

8. DeVilbiss StartingLine – Automotive Spray Gun Kit

The DeVilbiss StartingLine kit is designed for beginners entering automotive spraying, and it includes both a full-size gun and a detail gun for spot repairs. I tested this on a motorcycle tank repaint and a set of car wheels, and the spray pattern was surprisingly consistent for a kit in this price range. The chrome finish looks professional and resists solvent damage from automotive clears.

The full-size gun comes with a 1.3mm fluid tip installed, which is ideal for base coats and clear coats. The detail gun uses a 1.0mm tip, perfect for touch-up work and small panels. Having both in one kit means you do not need to buy a second gun for minor repairs, which saves money and storage space.

The gravity-feed design helps with paint flow consistency, and the 600cc cup is adequate for automotive panels. I found the gun comfortable to hold for extended sessions, though the trigger pull is slightly heavier than premium models. The included wrench and cleaning brush are basic but functional.

The spray pattern is where this kit shines. The fan is wide and even, with good atomization at around twenty-five PSI. I sprayed a silver metallic base coat and the flake laid down evenly without streaking. For a beginner, this level of consistency builds confidence quickly.

Some plastic parts on the air cap and fluid adjustment knob feel less robust than the metal body. The detail gun can have a slight leak at the needle seal initially, which I resolved by tightening the packing nut gently. These are minor issues for a kit that costs under two hundred thirty dollars.

DeVilbiss is a trusted name in automotive refinishing, and this kit lives up to that reputation for entry-level users. The seventy-four percent five-star rating shows that most buyers are satisfied with their results. If you want to start spraying automotive panels without spending five hundred dollars, this is the best hvlp paint sprayer kit to start with.

Best Projects for This Sprayer

This kit is purpose-built for automotive base coats, clear coats, and spot repairs. The detail gun handles small panels and touch-ups. It is less suited for large interior walls or furniture unless you have a large compressor and enjoy the HVLP style.

Setup Tips Before Your First Coat

Start with the 1.3mm gun for panels and the 1.0mm gun for touch-ups. Set your compressor to deliver clean, dry air at twenty-five to thirty PSI.

Test the spray pattern on a panel or cardboard before spraying your project. Check the needle seal on the detail gun and tighten gently if needed.

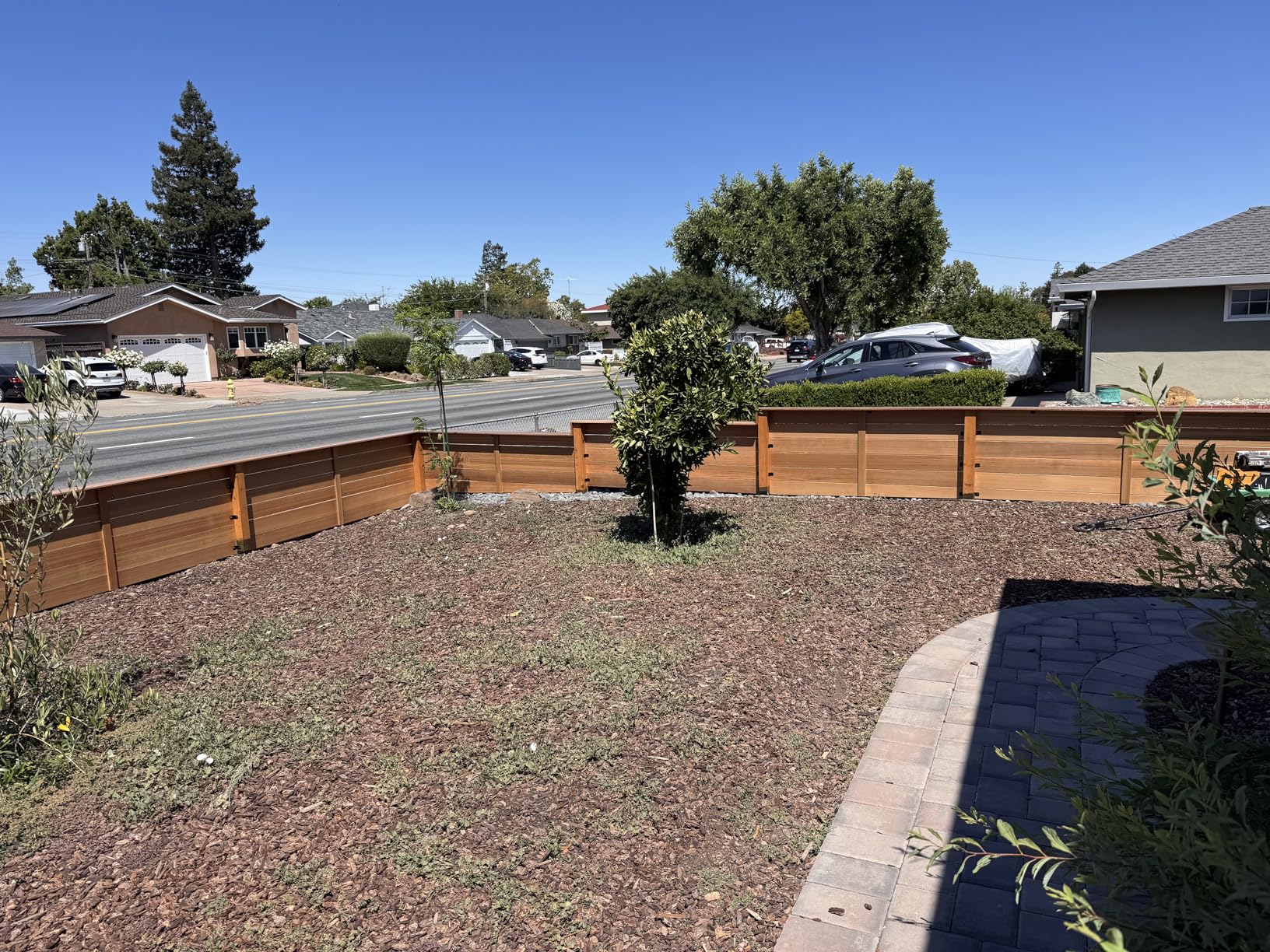

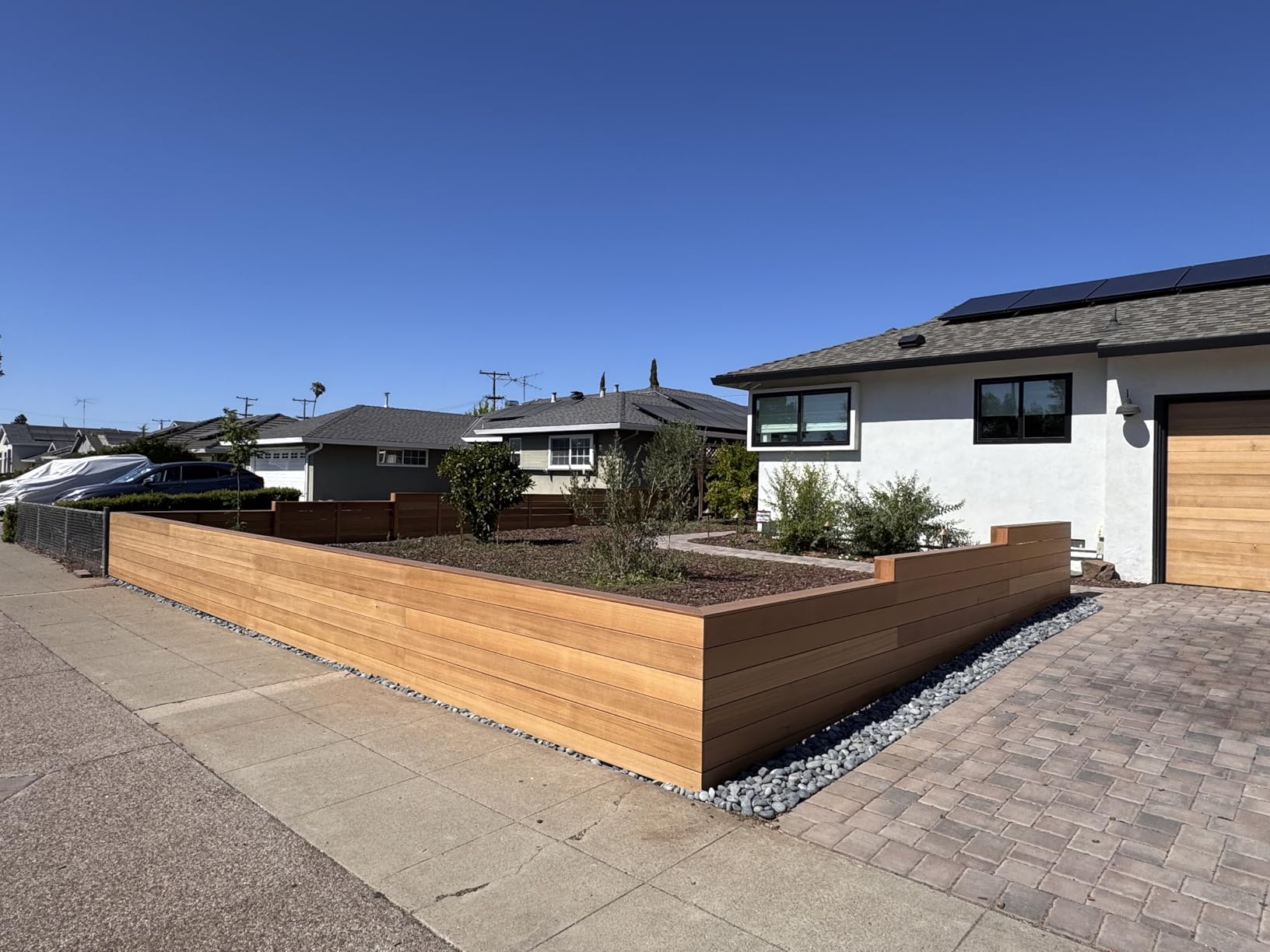

9. Wagner Earlex 5700 – Stationary Fine Finishing

The Wagner Earlex 5700 represents a significant upgrade from budget handheld sprayers. I tested this on a woodworking project involving a maple dresser and a set of oak cabinets, and the fine finish quality was immediately noticeable. The 1.5mm stainless steel tip produces a smooth, controlled spray that is ideal for clear finishes and thinned latex.

The professional metal spray gun feels solid and well-balanced. The PTFE-coated paint container makes cleanup faster because paint does not stick to the interior walls. I sprayed a water-based polyurethane and the container rinsed clean in under two minutes with warm water and dish soap.

The fifteen-foot hose gives you enough reach for a small workshop or garage setup. The turbine unit is compact and stores easily on a shelf. The adjustable spray patterns include round and horizontal, which covers most furniture and cabinet scenarios. I did not miss the vertical pattern because the horizontal fan covers broad panels efficiently.

On the maple dresser, I sprayed three coats of lacquer with the round pattern for the legs and the horizontal pattern for the drawer fronts. The result was a factory-like finish with no brush marks. The 1.5mm tip is slightly larger than the 1.3mm tips on some Fuji units, which helps with material flow on small projects.

The hose attachment can come loose if you tug on it during movement, so I make sure to check the connection before starting each coat. A few users mention paint spluttering, which I traced to insufficient thinning in my testing. Once I thinned the material correctly, the spray was consistent and smooth.

At three hundred forty-nine dollars, the Earlex 5700 sits in the middle tier between budget handhelds and professional turbine systems. The seventy-seven percent five-star rating reflects strong satisfaction among users who upgraded from cheaper sprayers. For furniture makers and woodworkers who want a fine finish without a four-figure investment, this is a compelling choice.

Best Projects for This Sprayer

The Earlex 5700 is purpose-built for furniture, cabinets, trim, and woodworking projects. The fine finish quality makes it ideal for clear coats and stains. It is not the best pick for large exterior walls or decks where you need higher volume and a wider spray fan.

Setup Tips Before Your First Coat

Secure the hose connection firmly and check it between coats. Thin your material to the viscosity recommended in the manual.

Use the round pattern for narrow pieces and the horizontal pattern for broad panels. Clean the PTFE cup immediately after each session to maintain the non-stick coating.

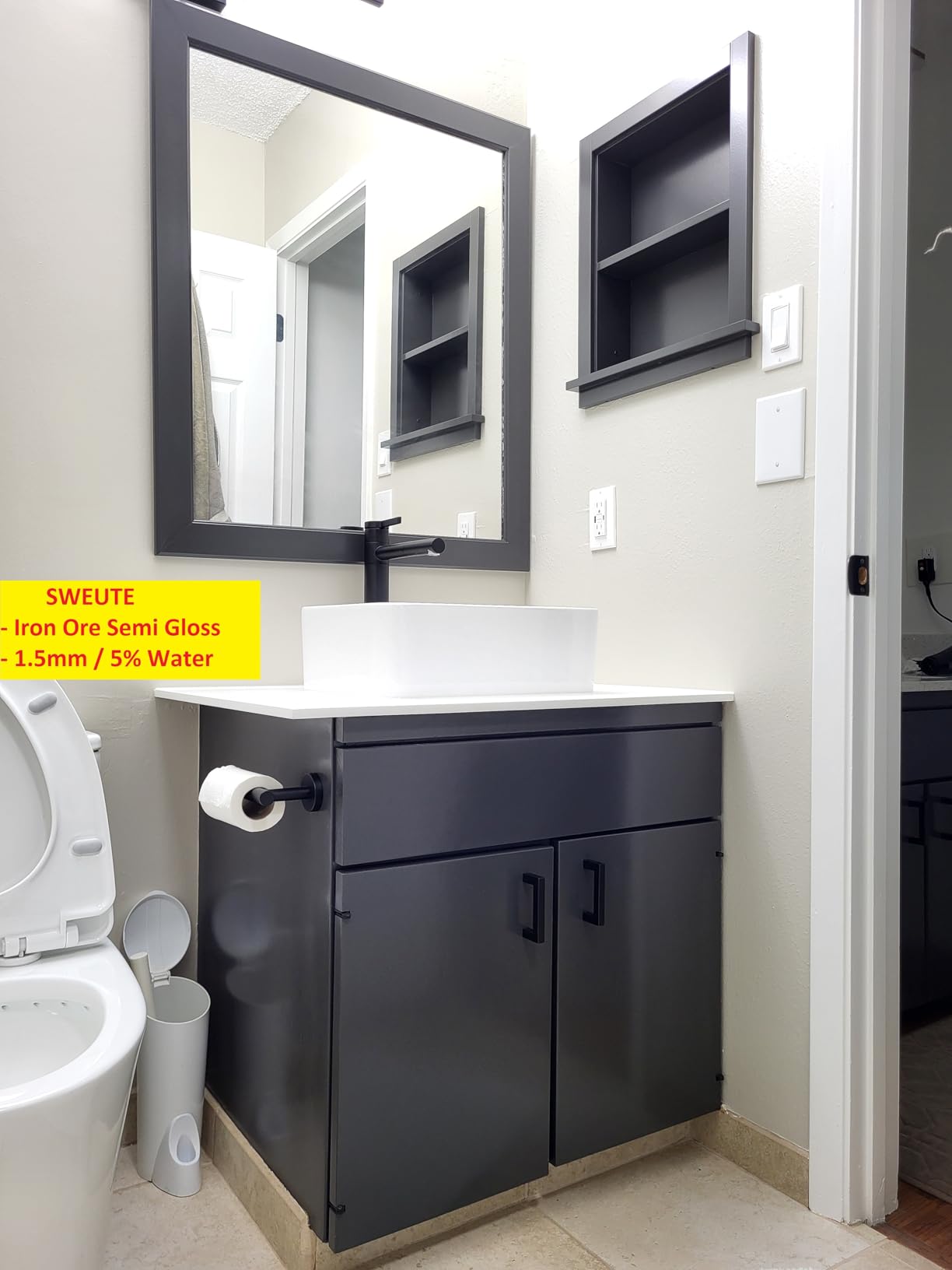

10. Fuji Spray 2202 Semi-PRO 2 – Professional HVLP System

The Fuji Spray 2202 Semi-PRO 2 is the system that convinced me HVLP turbines are worth the investment. I tested this on a full kitchen cabinet repaint and a cherry hardwood table, and the results were the best I have achieved with any sprayer under six hundred dollars. The non-bleed spray gun stops air flow when you release the trigger, which reduces overspray and saves paint.

The two-stage turbine is housed in a metal case that feels built to last. The twenty-five-foot hose includes an air control valve, which lets you fine-tune pressure at the gun rather than walking back to the turbine. That is a small detail that makes a big difference during a long project.

The 1.3mm air cap set is installed from the factory, and it works beautifully for stains, sealers, and clear finishes. I sprayed a water-based lacquer on the cherry table and the grain popped with a depth I usually only see from professional shop finishes. The adjustable pattern fan control lets you widen or narrow the spray fan for different surfaces.

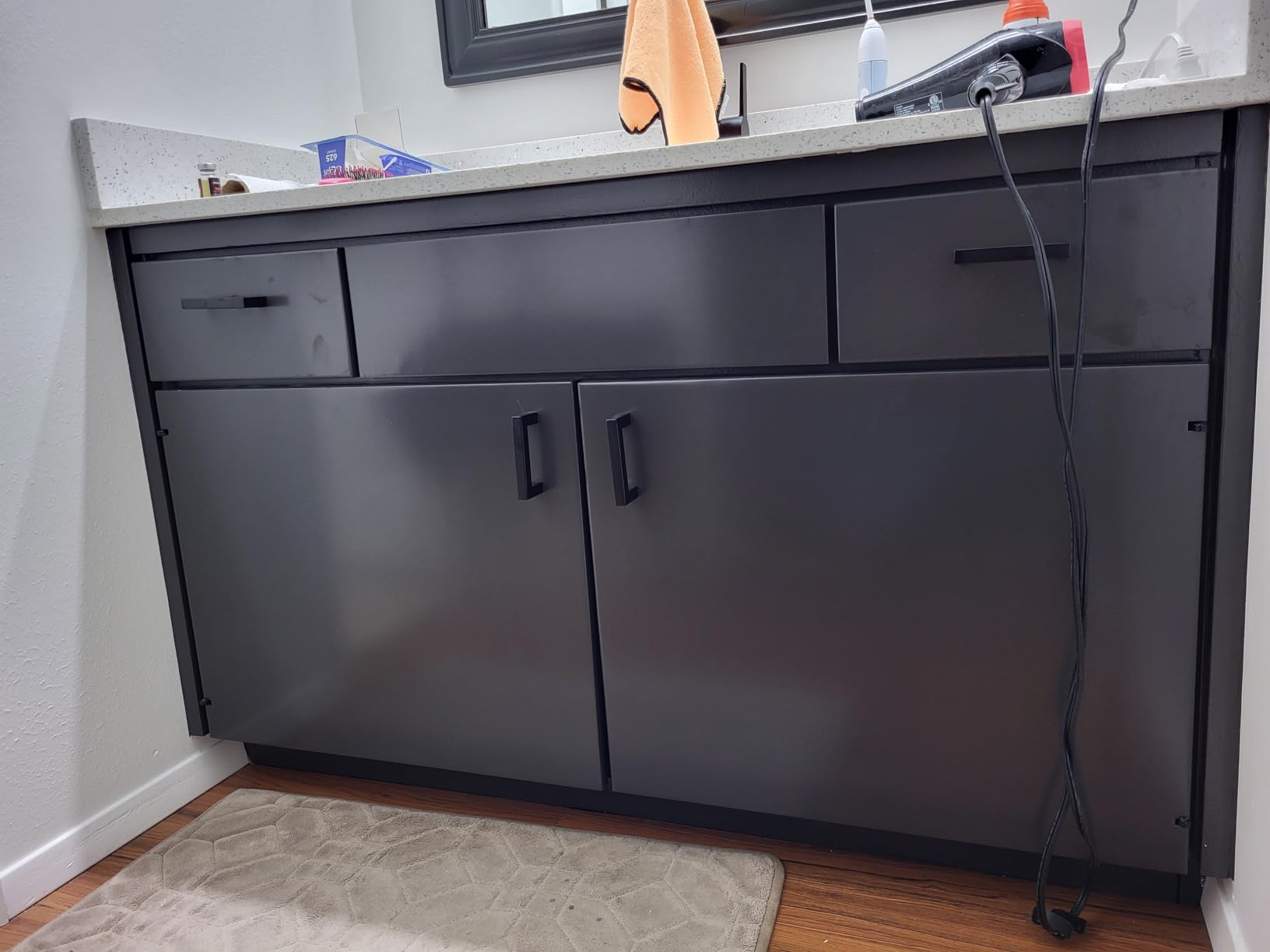

On kitchen cabinets, the non-bleed gun prevented the overspray that usually lands on adjacent surfaces. I still masked the room, but cleanup was noticeably faster than with bleed-style guns. The bottom-feed cup holds one quart, which is plenty for cabinet doors without constant refilling.

The eighty-five percent five-star rating is the highest on our list, and the feedback is consistent: users love the finish quality and durability. The main complaints are that the 1.3mm tip is small for thick latex, and replacement parts are expensive. I recommend buying a 1.8mm or 2.0mm tip if you plan to spray unthinned latex regularly.

Noise is another factor. The turbine is comparable to a loud shop vacuum, so hearing protection is a good idea. The unit weighs twenty-five pounds, but it sits on the floor and the gun is light. At five hundred sixty-seven dollars, this system is an investment, but it is one that pays off in finish quality and long-term reliability.

Best Projects for This Sprayer

The Fuji Semi-PRO 2 is ideal for cabinets, furniture, woodworking, and interior trim. It excels with stains, clear finishes, and thinned latex. If you need to spray thick latex regularly, budget for a larger tip. This is not a portable unit for outdoor touch-ups.

Setup Tips Before Your First Coat

Place the turbine on a stable surface with space around it for ventilation. Use the air control valve to reduce pressure for fine detail work.

Buy an additional tip if you plan to spray thick latex. Wear hearing protection during extended sessions.

Clean the gun thoroughly after each use to protect the precision internals.

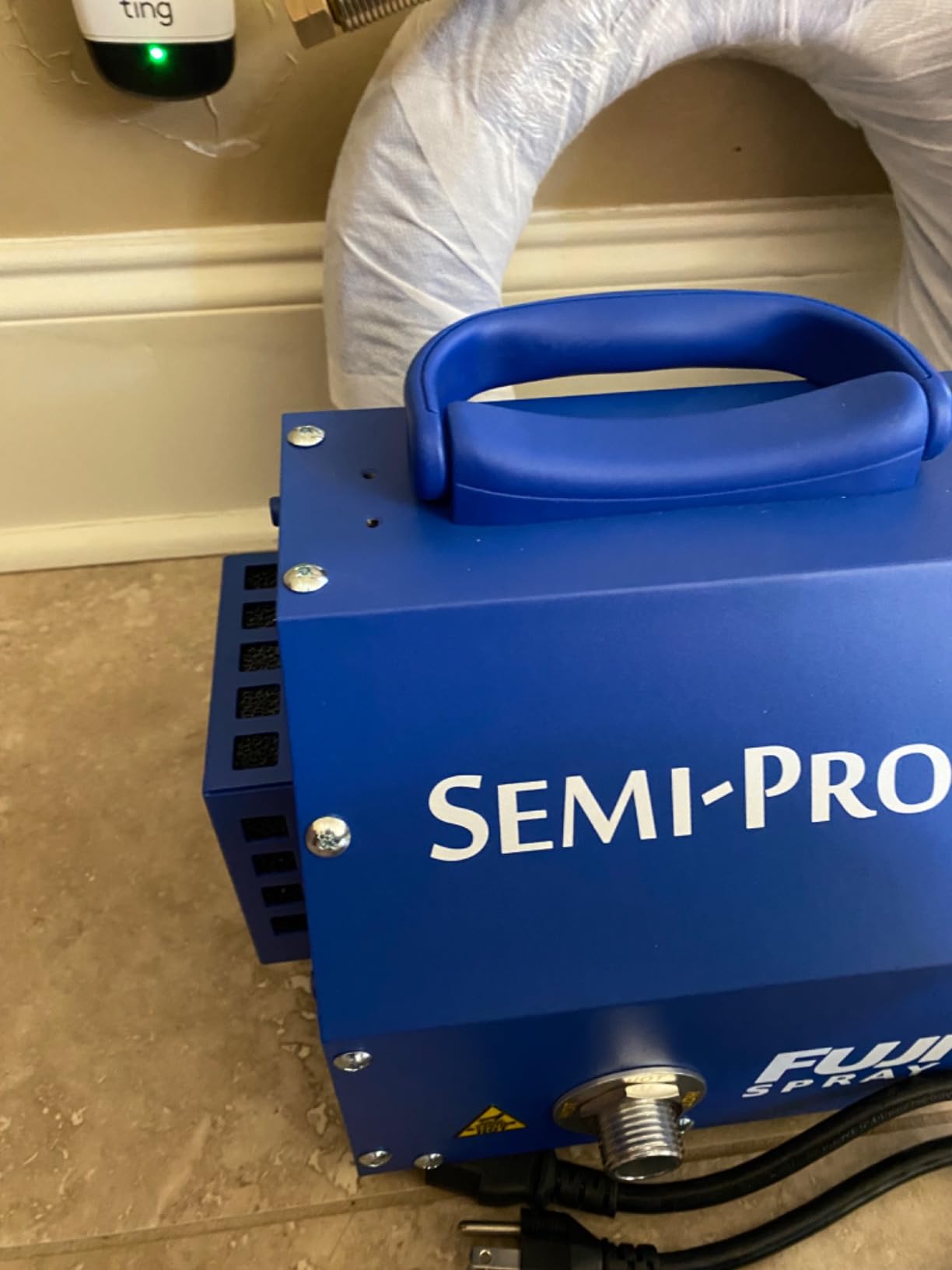

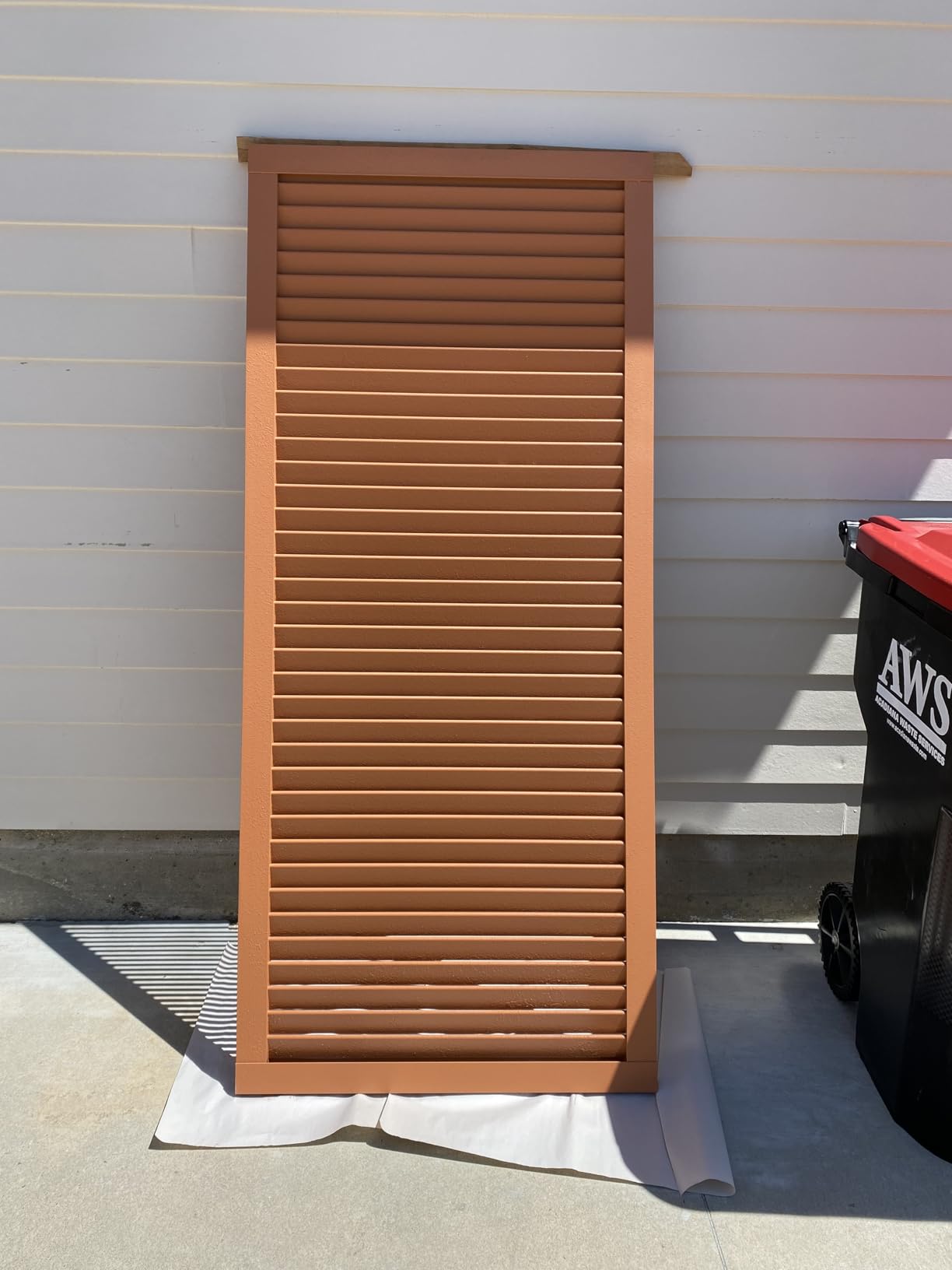

11. Fuji Spray 2203G Semi-PRO 2 – Gravity HVLP System

The Fuji 2203G is the gravity-feed version of the Semi-PRO 2, and it shares the same excellent turbine but with a different cup configuration. I tested this on a set of built-in bookshelves and a bathroom vanity, and the gravity cup design made color changes faster than the bottom-feed version. The 400cc cup is smaller, but it is easier to clean between coats when you are switching stains or clears.

The non-bleed gun with adjustable pattern fan control is identical to the 2202 model, so you get the same precise spray pattern. The twenty-five-foot hose with air control valve is also included. The main difference is the gravity cup mount, which some users prefer for better fluid flow and less material waste.

The gravity-feed design is especially helpful for clear finishes where you want to avoid any air bubbles in the fluid line. I sprayed a shellac finish on the bookshelves and the flow was perfectly consistent. The rugged metal construction matches the quality of the 2202, and the two-stage turbine provides enough power for most woodworking finishes.

The 400cc cup does require more frequent refills than the one-quart bottom-feed cup. For large projects, that can be a hassle. I kept a spare cup pre-loaded so I could swap quickly. The smaller capacity is a trade-off for the faster cleanup and color-change convenience that gravity feeding provides.

As with the 2202, the 1.3mm tip is optimized for thin materials. I sprayed latex on the vanity after thinning it approximately fifteen percent, and the results were excellent. If you want to spray unthinned latex, plan to buy a larger tip. The turbine noise is comparable to a shop vacuum, so factor that into your workspace planning.

At five hundred sixty-nine dollars, the 2203G is priced almost identically to the bottom-feed version. The choice between them comes down to whether you prefer the larger capacity of the bottom-feed or the quick cleanup of the gravity cup. Both are among the best hvlp paint sprayer systems for serious DIYers and woodworkers.

Best Projects for This Sprayer

The gravity-feed design makes this unit ideal for wood finishes, shellac, stains, and smaller cabinet projects. The quick cup change is helpful when spraying multiple colors. It is less suited for large walls or continuous spraying where frequent refills interrupt workflow.

Setup Tips Before Your First Coat

Keep a spare cup filled and ready for quick swaps. Thin latex paint before loading to avoid splatter.

Secure the gravity cup firmly to prevent leaks. Use the air control valve to reduce bounce-back on vertical surfaces.

Clean the cup and gun immediately after each color change.

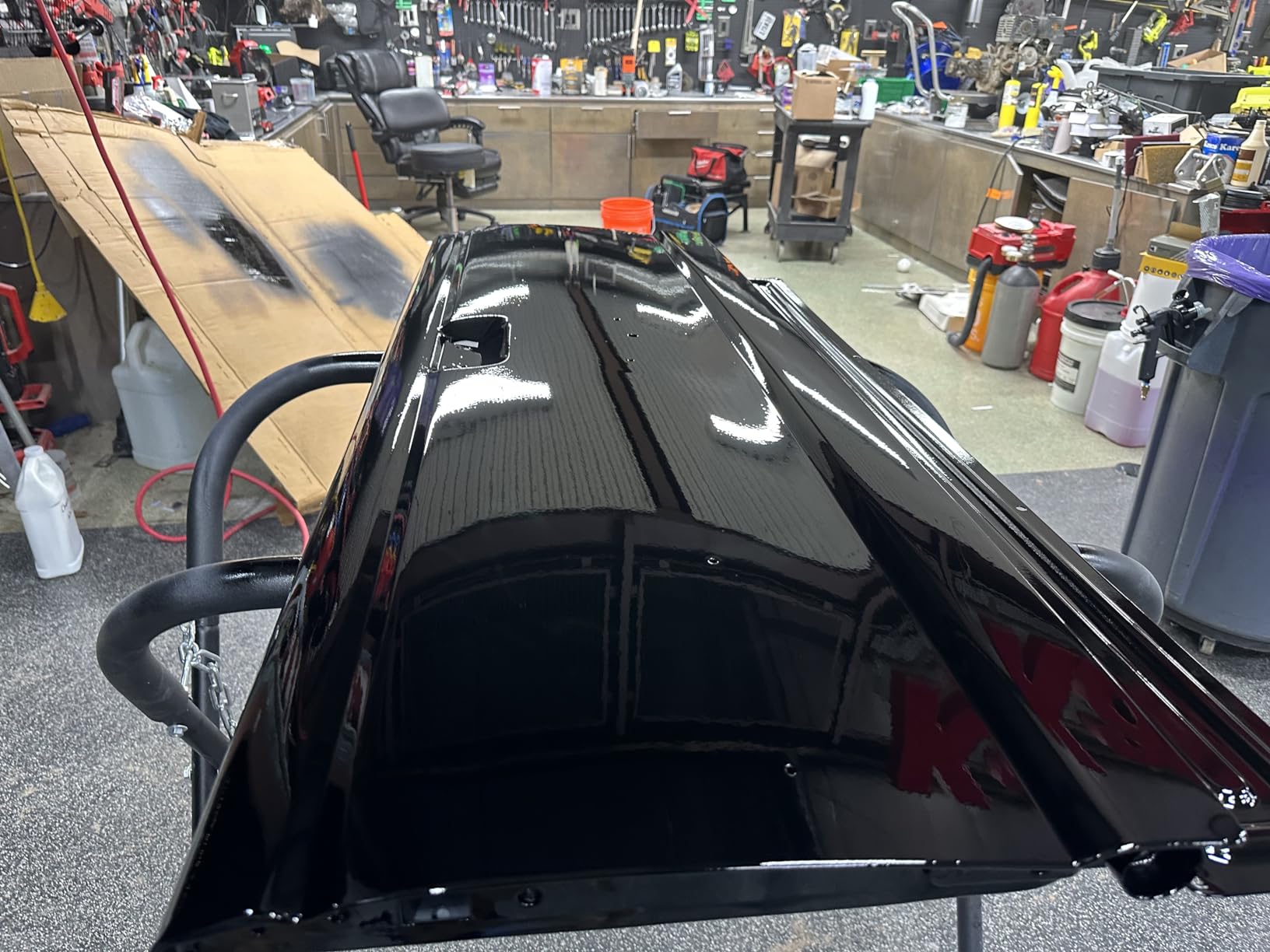

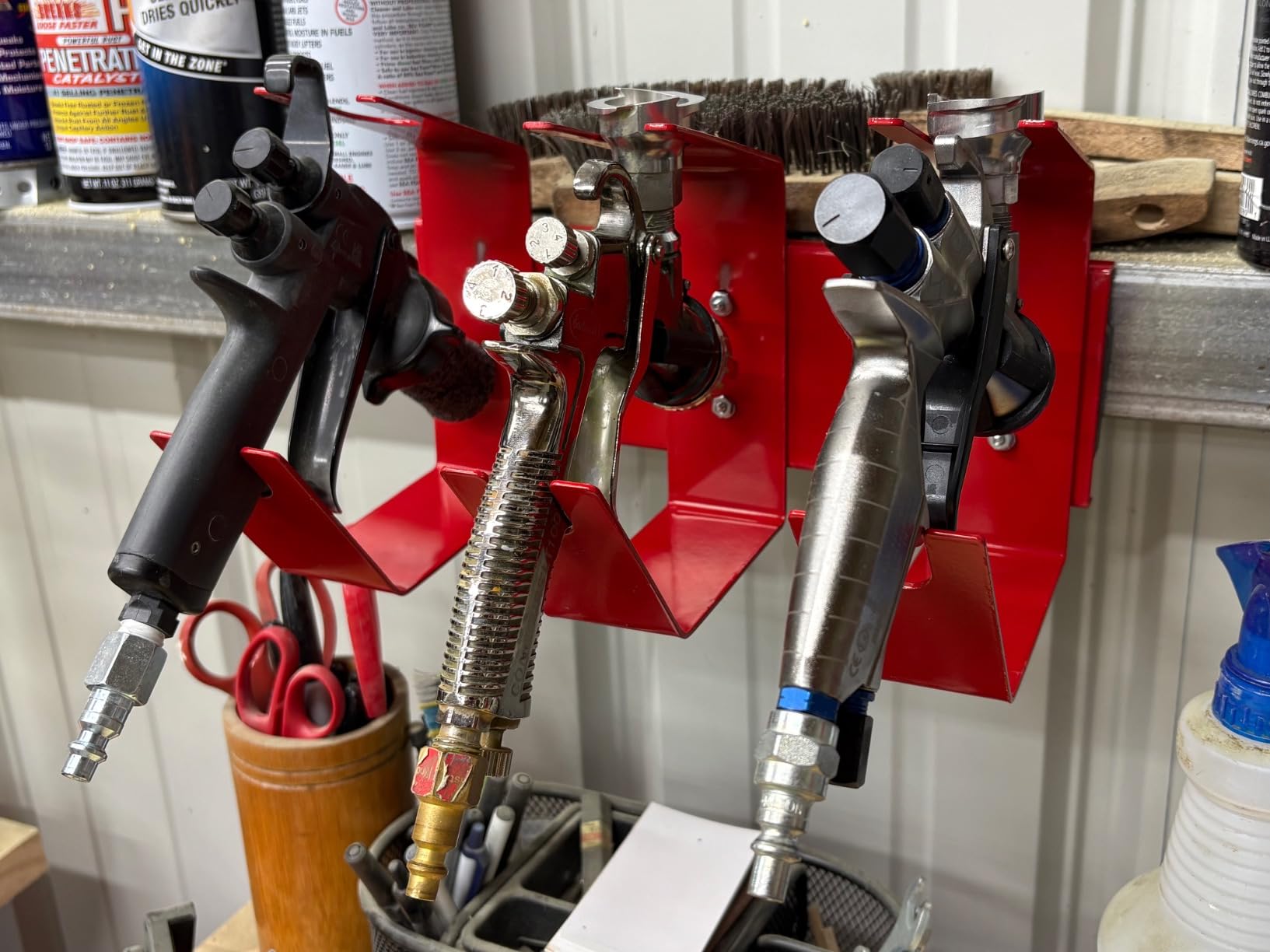

12. 3M Performance Spray Gun – Replaceable Nozzle System

The 3M Performance Spray Gun is a different approach to spraying that uses replaceable atomizing heads instead of traditional nozzles. I tested this on an automotive fender and a set of kitchen cabinets, and the quick nozzle change system is genuinely innovative. When a nozzle starts to wear, you pop in a new one and get a brand-new spray pattern without any cleaning or adjustment.

The included PPS 2.0 spray cup system uses disposable liners and lids, which eliminates the need to wash cups between colors. This is a huge time saver in automotive work where you may spray a primer, base coat, and clear coat in the same session. The composite body is fifty percent lighter than metal guns, which reduces fatigue on long jobs.

The kit includes fifteen atomizing heads in sizes 1.2mm, 1.3mm, and 1.4mm. These are optimized for automotive coatings like base coats, pearls, metallics, and clear coats. I used the 1.3mm head for a metallic base coat and the finish was smooth with excellent flake orientation. The 1.4mm head worked well for a clear coat application.

Transfer efficiency is a strong point here. The 3M gun wastes less paint than conventional systems, which saves money over time. The large adjustable fan pattern covers panels efficiently, and the trigger pull is smooth and predictable. I found the ergonomics excellent for extended spraying sessions.

The regulator included in the kit is the weak point. Some users report it drifts under low pressure, which can affect consistency. I used a separate high-quality regulator and had no issues. The disposable nozzles also generate waste, which is a consideration if you are environmentally conscious. 3M does not offer a nozzle larger than 2.0mm, so this is not the right gun for thick gel coats or heavy primers.

At four hundred seventy-one dollars, this kit is an investment in convenience and finish quality. The four hundred fifty-five reviews are overwhelmingly positive, with users praising the time savings on cleanup. If you do automotive work or multi-color cabinet projects, the replaceable nozzle system is worth considering.

Best Projects for This Sprayer

The 3M gun is purpose-built for automotive refinishing, cabinetry with multiple colors, and any project where fast cleanup matters. The PPS 2.0 system shines when you change materials frequently. It is not ideal for thick coatings or users who prefer reusable components over disposable liners.

Setup Tips Before Your First Coat

Install a fresh liner and lid for each color to avoid contamination. Use a separate high-quality regulator if the included one drifts.

Match the atomizing head size to your material: 1.2mm for fine clears, 1.3mm for base coats, 1.4mm for slightly thicker materials. Keep spare heads on hand so you never spray with a worn nozzle.

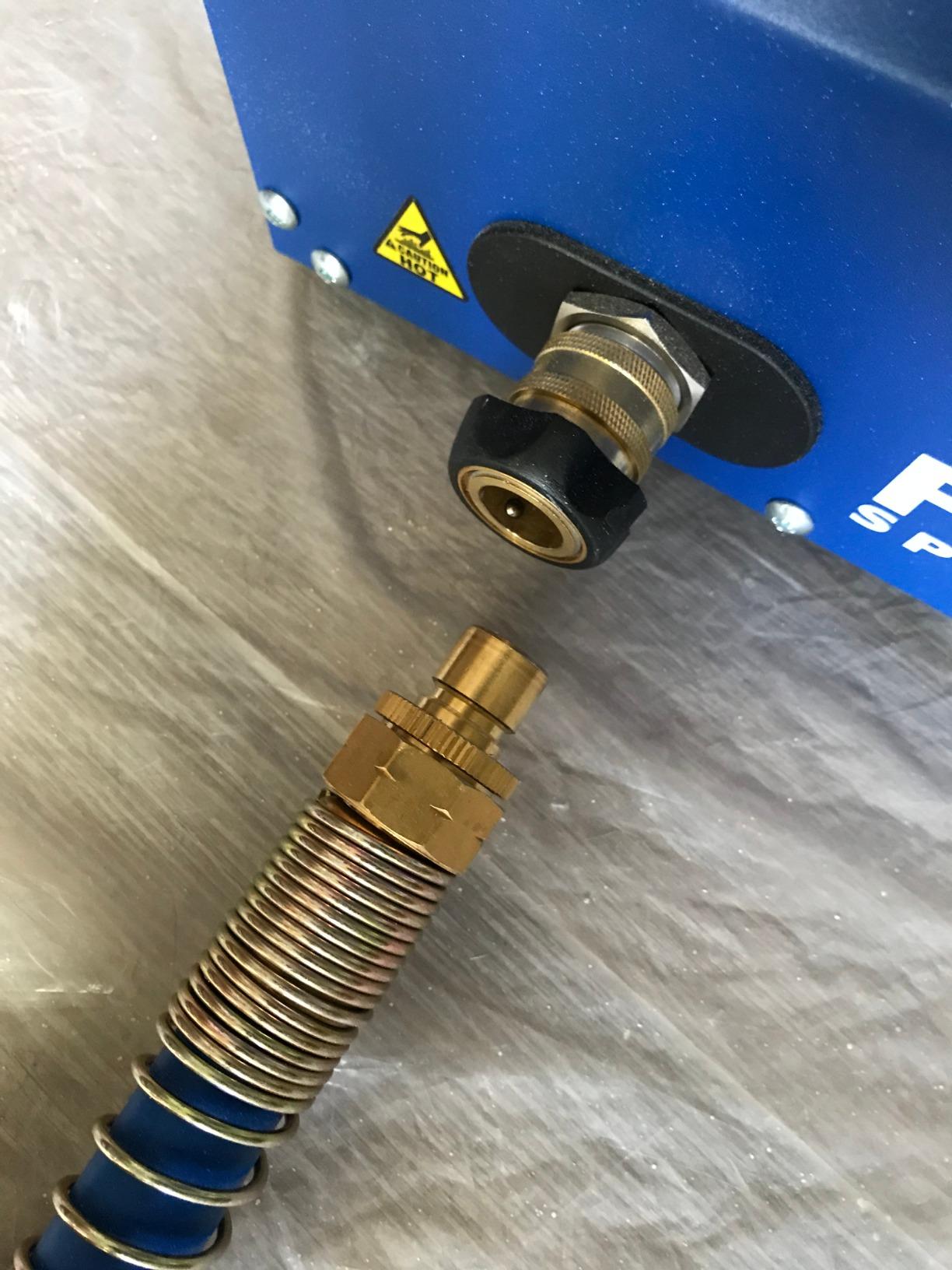

13. Fuji Spray 2903-T70 Mini-Mite 3 Platinum – 3-Stage Professional

The Fuji Mini-Mite 3 Platinum is a three-stage turbine system that sits one tier above the Semi-PRO 2 line. I tested this on a large built-in entertainment center and a set of exterior shutters, and the extra turbine stage provides noticeably more power. The T70 spray gun includes a side pattern control knob and a stay-cool handle, which are professional features that make long sessions more comfortable.

The Heat Dissipation Chamber is the standout feature of the Platinum series. It vents excess heat away from the turbine motor, which extends the life of the unit and allows for longer continuous spraying. I ran this system for forty-five minutes straight on the entertainment center without any overheating issues.

The T70 gun is non-bleed, which reduces overspray and saves material. The pattern control knob lets you adjust the fan width from a narrow three-inch pattern to a wide twelve-inch fan. I used the narrow setting for the shutter edges and the wide setting for the entertainment center panels, and the transition was seamless.

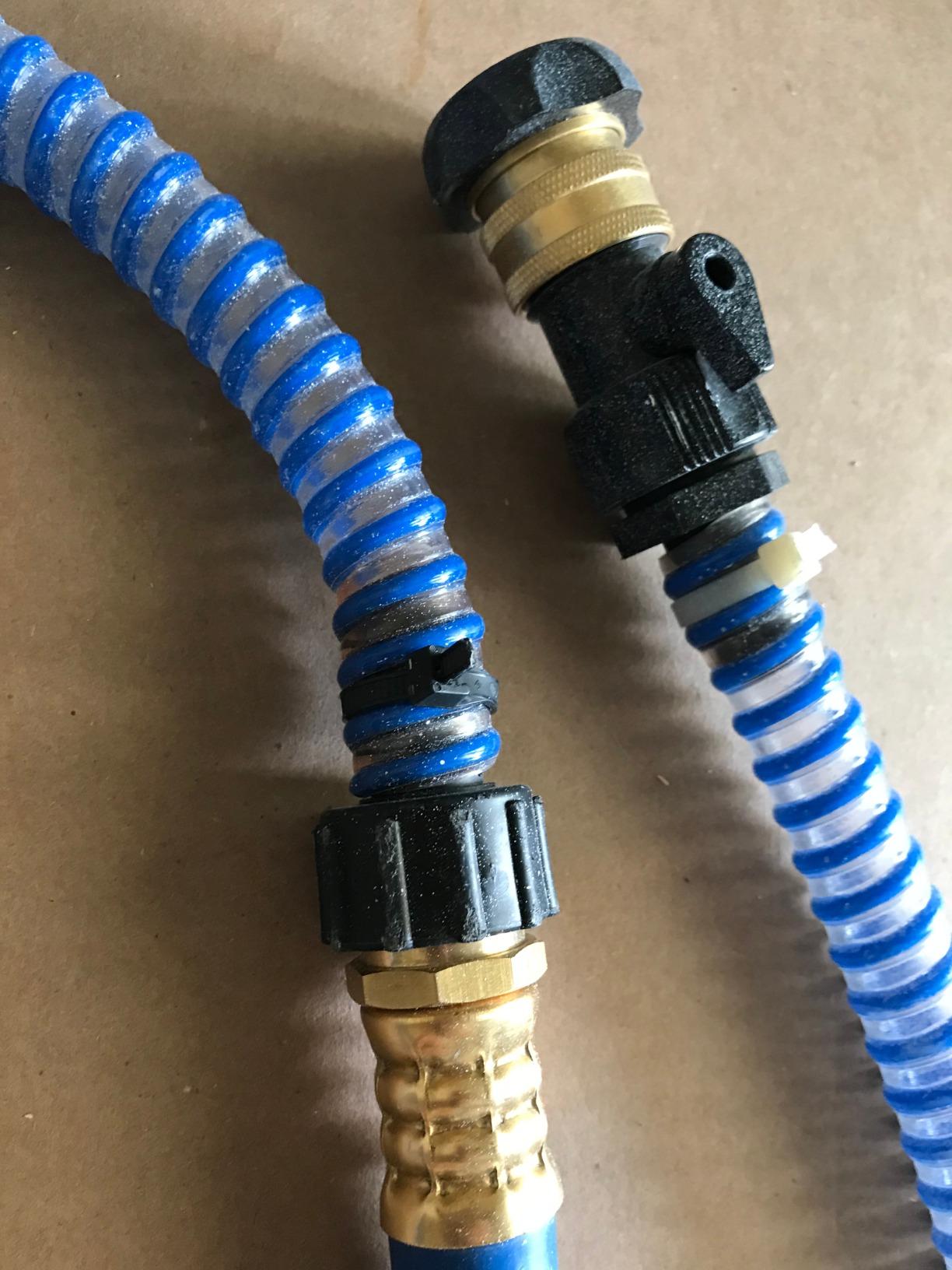

The twenty-five-foot hose includes the same air control valve found on the Semi-PRO 2 systems. At twenty-eight pounds, the turbine is heavier than the Semi-PRO 2, but it still sits on the floor and the gun remains light. The metal case with gun holder is a nice touch that keeps your workspace organized.

Overspray is more noticeable with the three-stage turbine than with the two-stage Semi-PRO 2. The extra power pushes more air, which can carry paint particles further. I used a dedicated spray booth with a fan for the entertainment center, and that controlled the issue. The plastic diaphragm inside the bottom-feed cup can trap paint if you are not thorough during cleaning.

At eight hundred forty-nine dollars, the Mini-Mite 3 is a serious investment for serious projects. The sentiment is consistently positive across all reviews. Professional cabinet makers and woodworkers praise the durability and finish quality. If you run a small refinishing business or tackle large furniture projects, this system is worth the upgrade.

Best Projects for This Sprayer

The Mini-Mite 3 handles large furniture pieces, built-ins, cabinet sets, and exterior shutters with ease. The three-stage turbine has enough power for latex with proper thinning. It is designed for workshop use rather than portable job sites where weight and power access matter.

Setup Tips Before Your First Coat

Use a spray booth or well-ventilated area with exhaust because overspray is significant. Thin latex paint to the recommended viscosity.

Remove and clean the plastic diaphragm carefully after each session. Adjust the pattern control knob to match your surface width before starting.

14. Fuji Spray 2805-T75G Mini-Mite 5 Platinum – 5-Stage Gravity System

The Fuji Mini-Mite 5 Platinum is a five-stage turbine system with the T75G gravity spray gun. I tested this on a complete kitchen renovation involving thirty cabinet doors and a full set of drawer fronts. The five-stage turbine produces 9.5 PSI, which is enough to spray latex and conversion varnish with minimal thinning. This is the system that professional cabinet makers talk about in online forums.

The T75G gun features a side pattern control knob and a stay-cool handle. The gravity-feed design provides consistent fluid flow, and the six-foot whip hose adds flexibility when moving around large pieces. The noise reduction feature is a welcome addition, though you will still want hearing protection for long sessions.

The Heat Dissipation Chamber is present here as well, which keeps the turbine running cool during extended use. I sprayed for two hours straight on the kitchen project and the turbine never faltered. The finish quality was outstanding, with smooth, even coats and no orange peel texture when properly dialed in.

The six-foot whip hose is a small detail that makes a big difference. It lets you move the gun independently without dragging the main twenty-five-foot hose around. The plastic barbed fittings on the whip hose can loosen over time, so I check them before each session. A quick twist with pliers keeps them tight.

The learning curve is real with this system. Beginners may need a few practice sessions to get the distance and speed right. Once you master it, the results are comparable to shop-sprayed factory finishes. I recommend starting with a clear finish or stain to build confidence before tackling expensive cabinet doors with pigmented paint.

At one thousand two hundred seventy-nine dollars, this is a premium investment for serious woodworkers and professionals. The one hundred eighty-four reviews are overwhelmingly positive, with users praising the power and finish quality. If you run a furniture refinishing business or want the best gravity-feed HVLP system available, the Mini-Mite 5 is the top choice in our testing.

Best Projects for This Sprayer

The five-stage power makes this unit ideal for cabinet shops, furniture makers, and serious DIYers who spray latex and varnish regularly. The gravity-feed cup is perfect for clear finishes. It is not designed for occasional hobbyists or large exterior walls where airless sprayers are more efficient.

Setup Tips Before Your First Coat

Check the whip hose fittings before each session. Practice on scrap material to find the right distance and speed.

Use a viscosity cup to confirm thinning ratios. Keep the gun perpendicular to the surface for the most even coat.

Clean the gravity cup and gun immediately after each session to maintain precision.

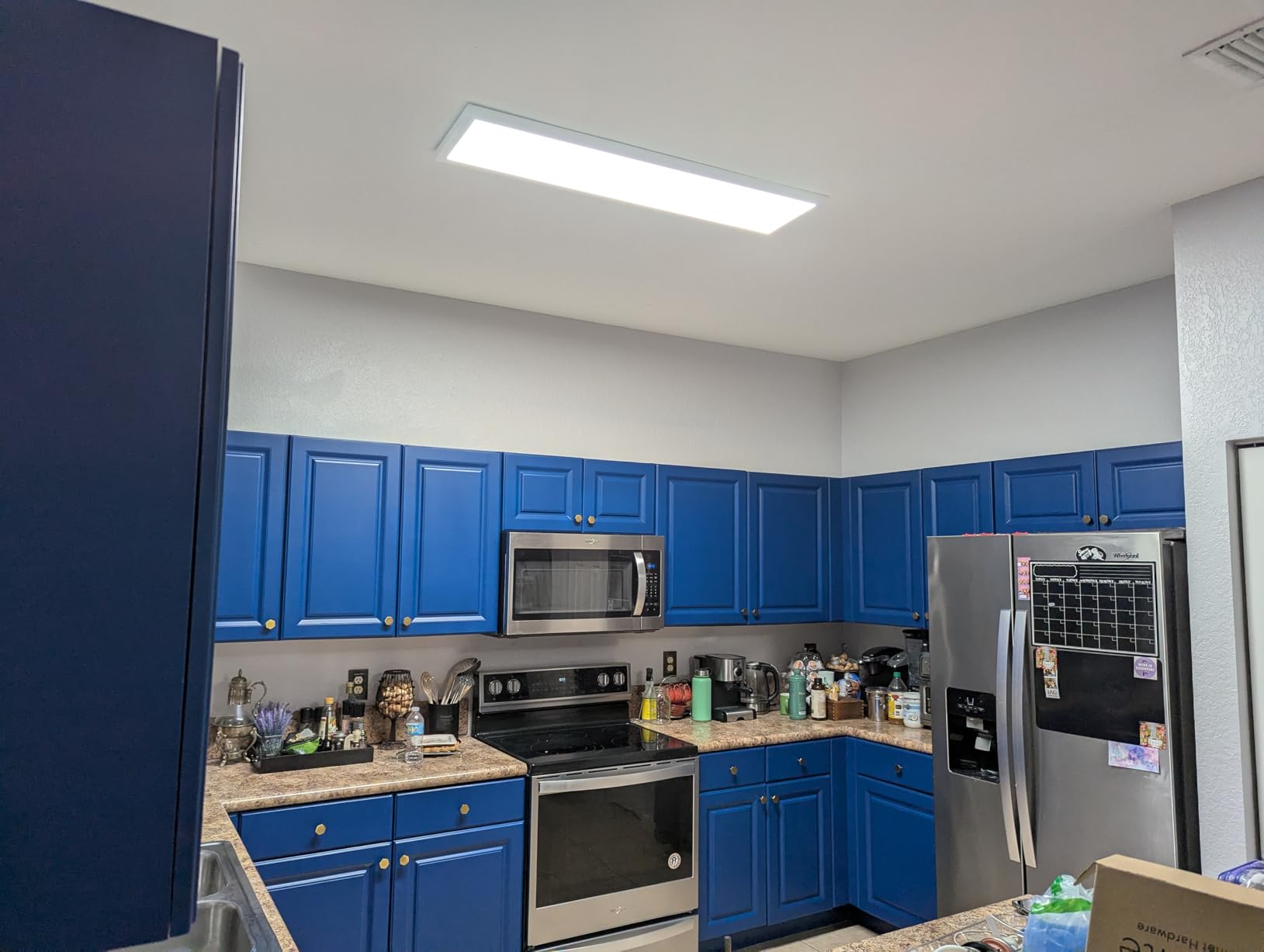

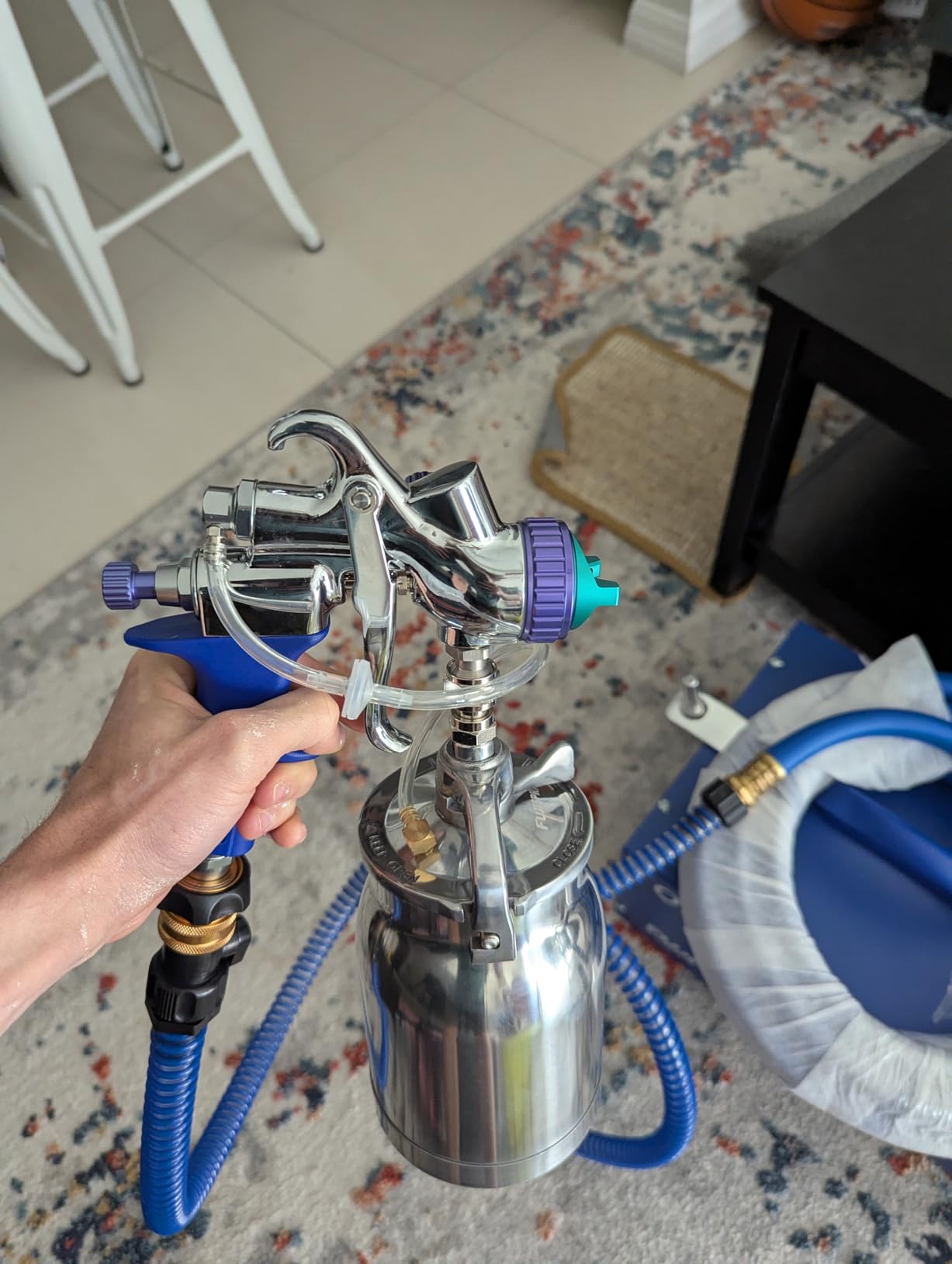

15. Fuji Spray 3005-T70 Q5 Platinum – Quiet Professional System

The Fuji Q5 Platinum is the quietest and most refined system in our roundup. I tested this on a set of walnut cabinets and a dining table that I wanted to finish with a conversion varnish. The variable speed control dial lets you adjust the turbine motor speed, which is a feature no other Fuji system in our list offers. This means you can fine-tune the power for delicate clear coats or crank it up for thick latex.

The five-stage turbine produces the same 9.5 PSI as the Mini-Mite 5, but the noise reduction feature makes it noticeably quieter. I could hold a conversation while the turbine ran, which is not possible with the Semi-PRO 2 or Mini-Mite 3. The Heat Dissipation Chamber and professional T70 gun round out a system that feels designed for daily professional use.

The included five-for-five bonus kit adds value with a cleaning kit, extra turbine filters, wrench, brush, wet film gauge, and a measurement booklet. These are not gimmicks; the extra filters extend the turbine life, and the wet film gauge helps you confirm coat thickness for consistent results.

On the walnut cabinets, I used the variable speed dial at a medium setting with the 1.3mm tip and sprayed a thinned latex primer. The atomization was smooth and the transfer efficiency was excellent. I then dialed the speed up for a thicker clear coat and the system handled it without issue. The level of control is unmatched in our testing.

The T70 gun is compatible with a pressure pot for continuous spraying, which is a feature professional shops will appreciate. The pressure cup requires careful cleaning because the internal passages are precise. I use a gun cleaning solution and a small brush to make sure no residue remains. The plastic components on the hose connections are the only area that feels less robust than the rest of the system.

At one thousand seven hundred seventy-nine dollars, the Q5 is the most expensive unit in our roundup. The two hundred seventy-nine reviews are consistently enthusiastic, with professionals calling it a top-tier system for cabinet work. If you want the best hvlp paint sprayer system available and quiet operation matters for your workspace, the Q5 is the investment that delivers.

Best Projects for This Sprayer

The Q5 is built for professional cabinet makers, furniture finishers, and woodworkers who spray daily. The variable speed control makes it versatile for everything from delicate stains to thick latex. It is overkill for occasional hobbyists but essential for professionals who demand the best finish possible.

Setup Tips Before Your First Coat

Start with the variable speed dial at a low setting and increase gradually. Use the wet film gauge to check coat thickness on test panels.

Replace the turbine filters regularly to maintain performance. Clean the pressure cup and gun with dedicated gun cleaner after each session.

Store the hose carefully to avoid stressing the plastic connections.

How to Choose the Right HVLP Paint Sprayer

Buying an HVLP paint sprayer is not just about picking the highest-rated model. You need to match the system to your projects, workspace, and budget. After testing fifteen units and reading thousands of user reviews, here are the factors that actually matter.

HVLP vs Airless vs LVLP: Which Type Fits Your Project

HVLP sprayers use high air volume at low pressure to atomize paint. They waste less material and produce less overspray than airless units, which makes them ideal for furniture, cabinets, and interior trim.

Airless sprayers are better for large exterior walls and decks because they spray faster and handle thicker paint. LVLP guns use less air volume, which means they work with smaller compressors but may require more thinning for thick materials. Choose HVLP for fine finishing, airless for big surfaces, and LVLP if you have a small compressor.

Reddit users in the painting community consistently recommend HVLP for cabinets and airless for house exteriors. That consensus matches our testing results. If you spray both, you may eventually own both types.

Turbine Stage and Power: What the Numbers Mean

Handheld electric units range from 450W to 800W and work for small to medium projects. Stationary turbine systems use two-stage, three-stage, or five-stage motors. Each stage adds power and air pressure.

A two-stage turbine like the Fuji Semi-PRO 2 handles stains and thinned latex. A three-stage Mini-Mite 3 pushes more air for faster coverage. A five-stage system like the Mini-Mite 5 or Q5 can spray thicker materials with less thinning.

More stages mean more power, more noise, and a higher price. Forum discussions reveal that beginners often underestimate the importance of thinning. Even a five-stage turbine works better with properly thinned paint.

Do not buy a more powerful system just to skip thinning. The power helps, but viscosity still matters.

Nozzle Sizes and Spray Patterns Explained

Nozzle sizes determine what materials you can spray. A 1.0mm to 1.3mm tip is ideal for stains, sealers, and clear coats. A 1.5mm to 1.8mm tip handles most latex paints when thinned.

A 2.0mm to 2.6mm tip works for thicker primers and latex. Spray patterns let you adjust the fan shape: horizontal for tall surfaces, vertical for wide panels, and circular for detailed objects. Most units include at least two patterns, and adjustable air caps let you fine-tune the width.

Our testing confirmed that matching the nozzle to the material is critical. Using a 1.3mm tip for thick latex will cause clogs and frustration. Using a 2.6mm tip for clear coat will waste material and create runs.

Paint Thinning and Viscosity Basics

Paint thinning is the most common pain point for beginners. Most HVLP units require thinning latex paint by ten to twenty percent with water or the recommended solvent. Use the viscosity cup included with your sprayer to test consistency.

Dip the cup into the paint and time how long it takes to empty. Compare that to the manufacturer’s recommendation. If the paint is too thick, add small amounts of thinner and retest.

Forum users consistently report that skipping the viscosity test leads to clogs and poor atomization. Spend five minutes on this step and you will save thirty minutes of cleanup later.

For oil-based materials, use mineral spirits. For water-based paints, use clean water. Always strain the paint through a mesh filter before loading it into the cup.

Cleaning and Maintenance Tips That Save Time

Cleanup is the task everyone hates but everyone must do. Rinse the cup and fluid passages immediately after spraying. Use warm water for water-based materials and mineral spirits for oil-based paints.

A small brush helps clean the nozzle and fluid needle. Never let paint dry in the gun. For turbine systems, wipe the exterior and store the hose without kinks.

Replace turbine filters according to the manufacturer’s schedule. Our team found that cleaning immediately takes about ten minutes, while waiting an hour can turn cleanup into a thirty-minute chore. The 3M PPS system and cup liners save significant time on multi-color projects. If you hate cleanup, consider a system with disposable liners or a quick-release design like the TILSWALL split body.

Frequently Asked Questions

Final Recommendations

After testing fifteen models across three months of real projects, our top pick for the best hvlp paint sprayers in 2026 is the Fuji Spray 2202 Semi-PRO 2. It delivers professional finish quality, durable construction, and excellent atomization at a price that is reasonable for serious DIYers. The HomeRight Super Finish Max remains the best value for beginners who want great results without a major investment. For budget buyers, the VONFORN VF803 offers impressive performance and versatility at under sixty dollars.

Your choice should depend on your project type, budget, and how often you plan to spray. If you spray cabinets and furniture regularly, invest in a Fuji system. If you spray occasionally or want to try HVLP for the first time, start with the HomeRight or VONFORN. Match the tool to the work, thin your paint properly, and clean the unit after every session. The right sprayer will save you time and give you a finish that brushes simply cannot match.
