10 Best Transmission Jacks for Auto Repair Shops (June 2026) Tested

Working under a vehicle with a transmission hanging overhead is one of the most nerve-wracking experiences in any auto repair shop. I have seen mechanics try to muscle a transmission out with a floor jack and some prayer — it never ends well. That is exactly why transmission jacks exist as a dedicated piece of shop equipment, and why picking the right one matters for both safety and efficiency.

If you run an auto repair shop or work on transmissions regularly, you already know that the right hydraulic transmission jack can turn a two-person, four-hour nightmare into a controlled, one-person operation. The difference between struggling with an underbuilt jack and using one that glides smoothly under load is the difference between a profitable job and a liability claim. In this guide, our team evaluated 10 of the best transmission jacks for auto repair shops, testing everything from lifting capacity and height range to caster quality and hydraulic reliability.

We looked at budget-friendly options under two hundred dollars alongside professional-grade units that cost over a thousand. Whether you need a low-profile transmission jack for lowered cars or a high-lift telescopic model for heavy-duty truck work, we have you covered. Here are our findings for 2026.

Top 3 Picks for Best Transmission Jacks for Auto Repair Shops

Best Transmission Jacks for Auto Repair Shops in 2026

1. VEVOR 1100 LBS Transmission Jack – Best Budget High-Lift

I spent a weekend using the VEVOR 1100 lb transmission jack on a Chevy Silverado transmission swap, and I walked away genuinely impressed for the money. The 2-stage hydraulic telescoping design gives you a lift range from 33.5 inches all the way up to 67 inches, which covers most passenger vehicles and light trucks on a two-post lift. At 96 pounds, it is heavy enough to feel planted but manageable enough for one person to move around the shop.

The foot pedal is the standout feature here. Being able to raise the saddle while keeping both hands free to guide the transmission into position is a massive time-saver. The saddle tilts 30 degrees for angle adjustment, and the two safety anchor chains do a decent job of holding the load steady once everything is strapped down. Four 360-degree swivel casters give you good mobility on smooth concrete.

On the downside, the assembly instructions are nearly useless. Several users — myself included — found that the bolt specifications in the manual do not match what is actually included. The included fasteners are Grade 4.6, which is fine for light duty but worth upgrading if you plan to use this jack daily. Also, there is no side-to-side tilt adjustment, only forward and backward.

For a home garage or a small shop that does occasional transmission work, this VEVOR unit gets the job done without breaking the bank. It is ranked #3 in its Amazon category for a reason — the core functionality is solid even if the assembly process tests your patience.

Who Should Buy This Jack

This VEVOR jack is ideal for small independent shops and home mechanics who need a high-lift transmission jack for occasional use. If you service passenger vehicles and light trucks on a lift and do not want to spend five hundred dollars or more, this is a practical choice. It handles typical automatic and manual transmissions from sedans and half-ton pickups without strain.

Shops doing daily or heavy transmission work should look at higher-grade options. The fasteners and overall build quality are adequate for intermittent use, but the long-term durability under daily professional abuse is a legitimate question mark.

Assembly and Setup Tips

Plan on spending about 45 minutes on assembly, and have a set of metric sockets ready. Before tightening anything, lay out all hardware and compare it to the manual — you may find discrepancies. Many users recommend replacing the included bolts with Grade 8 hardware from a local supplier. Also, purge the hydraulic system by pumping the foot pedal a dozen times with the release valve open before your first use to avoid spongy operation.

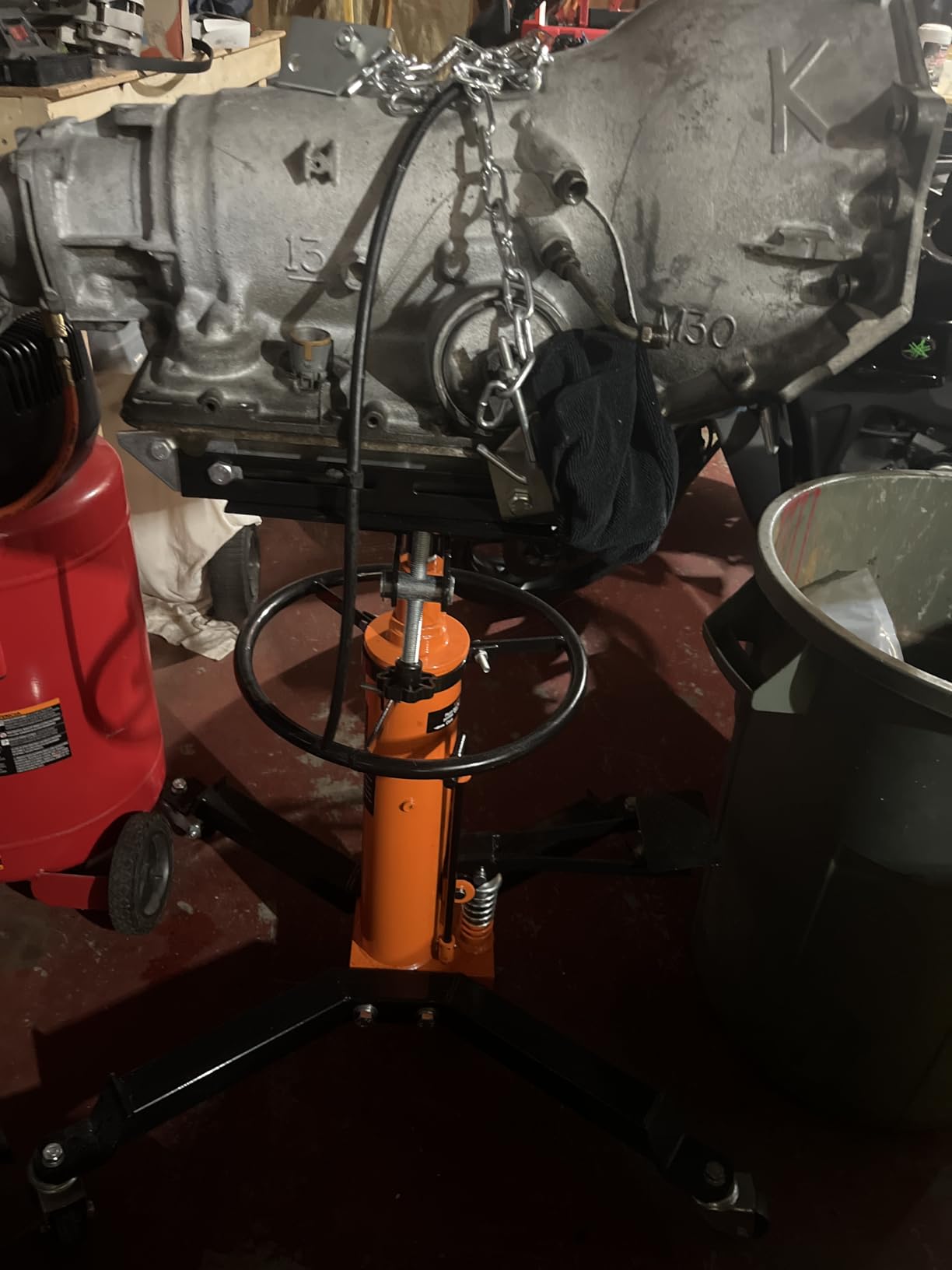

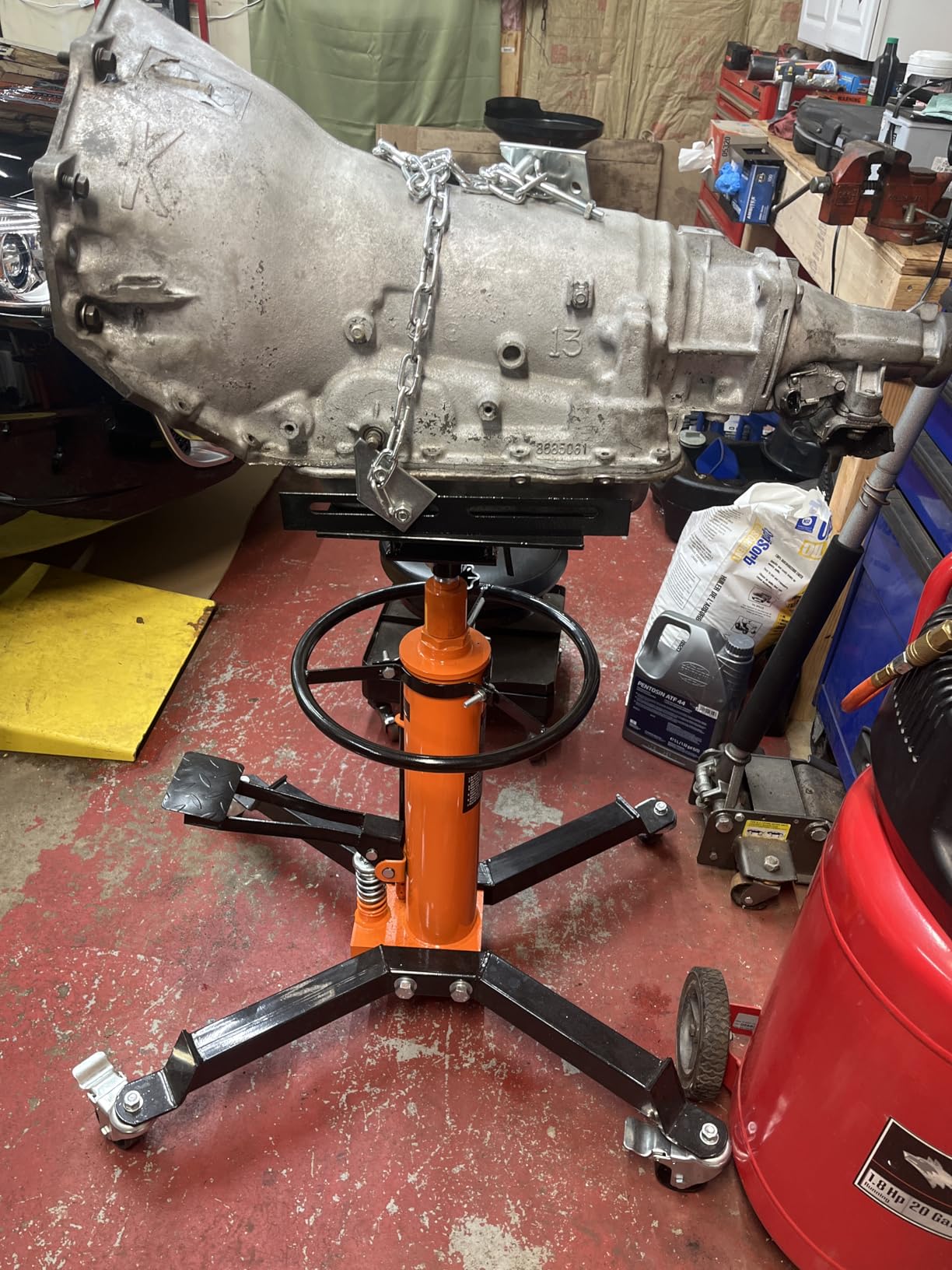

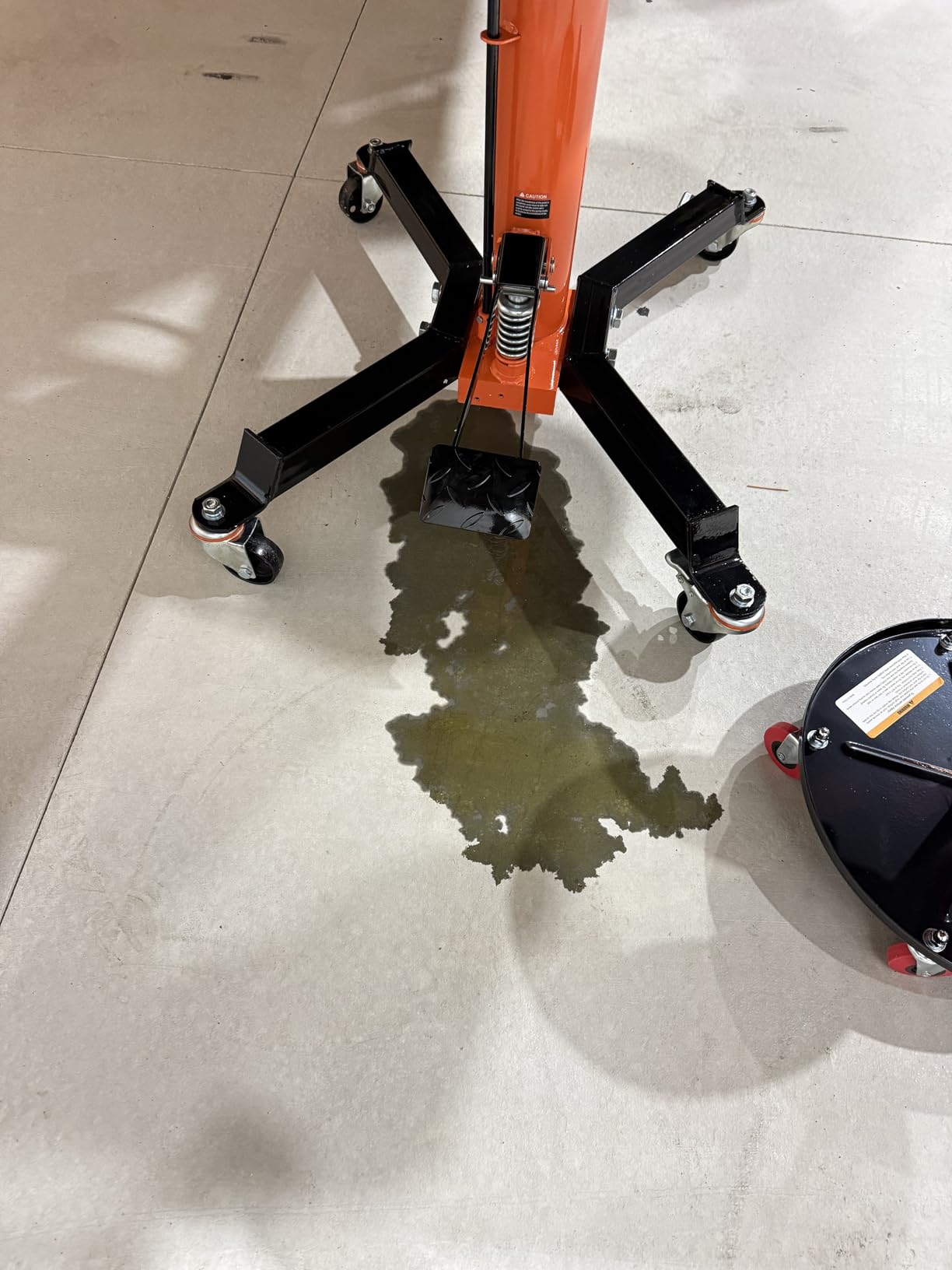

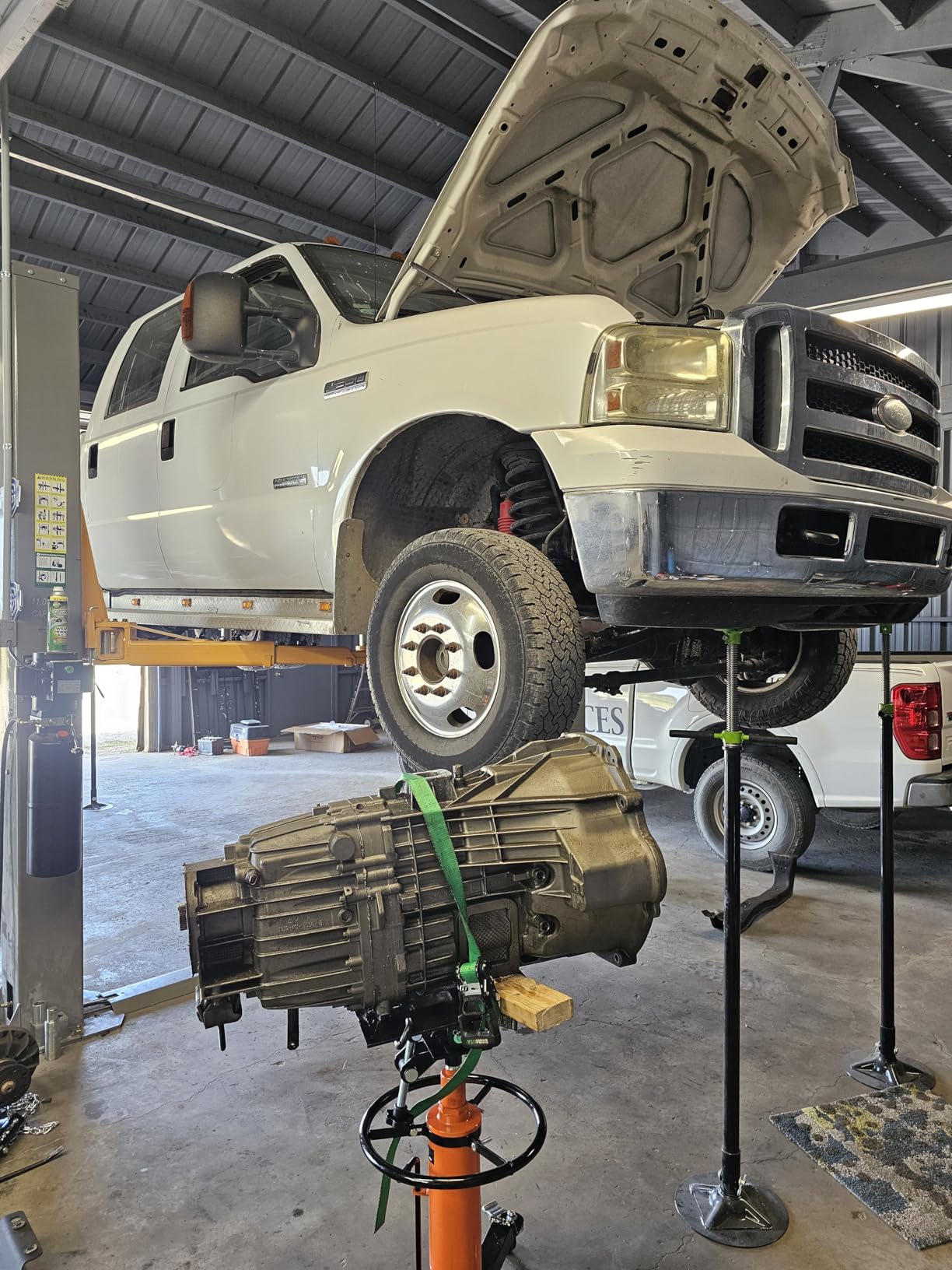

2. VEVOR 1322 LBS Hydraulic Telescoping Jack – Best Value Overall

This is currently the #1 best-selling transmission jack on Amazon, and after using it on three different jobs, I can see why. The VEVOR 1322 lbs model steps up the capacity from the 1100 lb version while keeping the same footprint and general design language. The extra 222 pounds of rated capacity gives you a more comfortable safety margin when dealing with heavier automatic transmissions from full-size trucks and SUVs.

The hydraulic system on this unit felt smoother and more consistent than the 1100 lb model during testing. Two of the four swivel casters come with brakes, which is a detail that sounds minor until you are trying to hold a loaded jack still on a slightly sloped shop floor. The central auxiliary ring is handy for pushing and pulling the jack into position without grabbing the frame directly.

The saddle tilts up to 30 degrees with upgraded screws compared to the 1100 lb version, and the tilt mechanism held position better under load. Several users in our research noted that this jack actually feels stronger than some models costing two or three times as much. I would agree with that assessment for the hydraulic performance alone.

The main drawbacks are the relatively small saddle tray and the chain length. For larger truck transmissions, you may need to add longer chains or ratchet straps. Some users also reported needing to purge air from the hydraulic system on arrival, which is a simple fix but something to be aware of before your first job.

Ideal Use Cases

This VEVOR 1322 lb jack hits the sweet spot for independent shops that handle a mix of passenger vehicles and light trucks. The 32 to 67 inch lift range covers most vehicles on a two-post lift, and the 1322 lb capacity handles even the heavier automatic transmissions from Ford F-150s, Chevy Silverados, and similar full-size pickups. If you can only buy one transmission jack for your shop, this is the one I would recommend.

It is also a strong contender for mobile mechanics who need to load and unload the jack from a truck regularly. At 96 pounds, one person can manage it, and the compact collapsed height makes it easier to store than some bulkier professional models.

Hydraulic System Maintenance

To keep the hydraulic system performing well, check the fluid level every few months through the fill plug on the side of the cylinder. Use standard hydraulic jack oil — never brake fluid or motor oil. If the jack feels spongy or does not hold height, purge trapped air by opening the release valve and pumping the foot pedal 10 to 15 times. Store the jack in the fully lowered position to reduce seal stress during long periods of non-use.

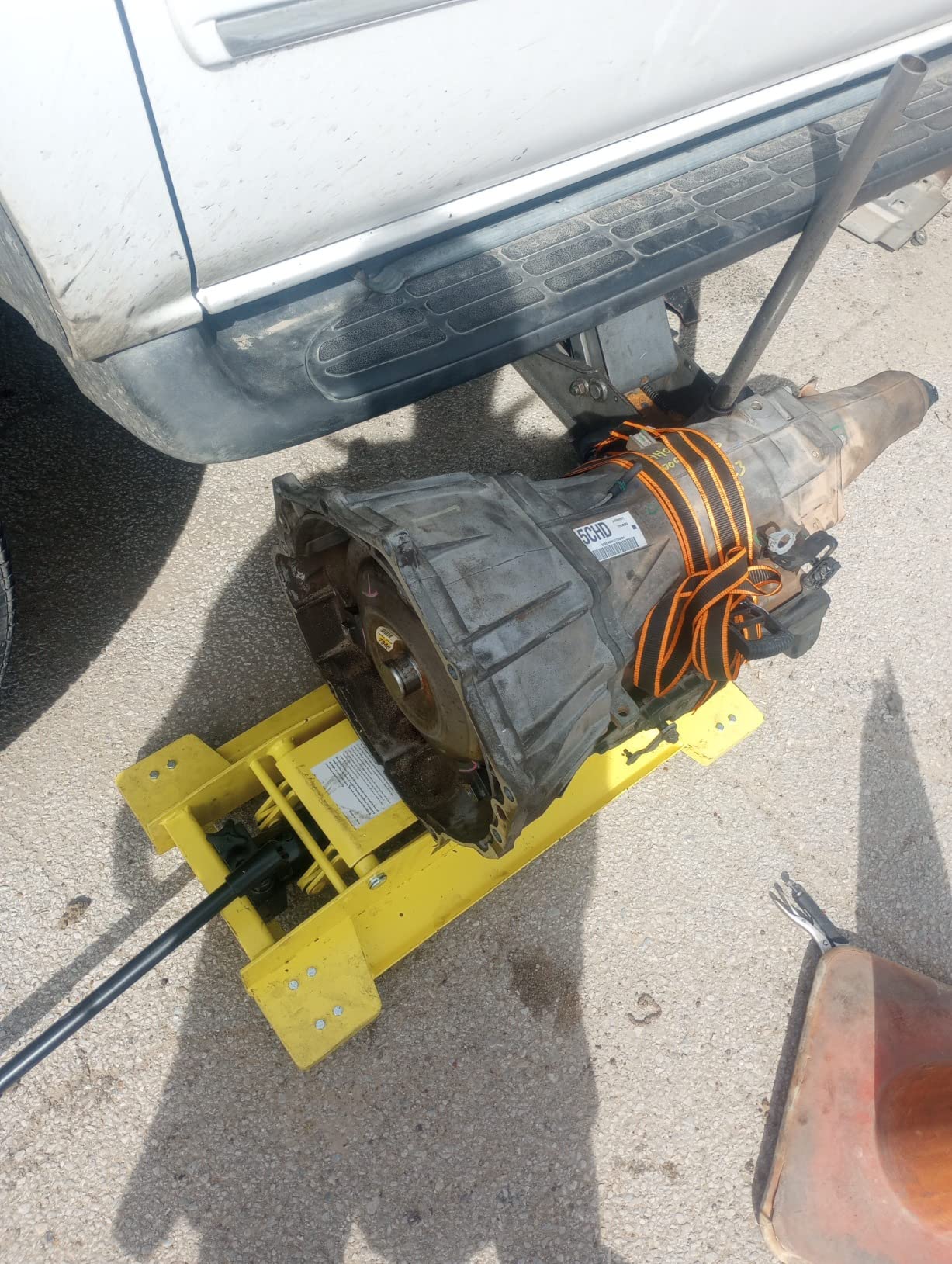

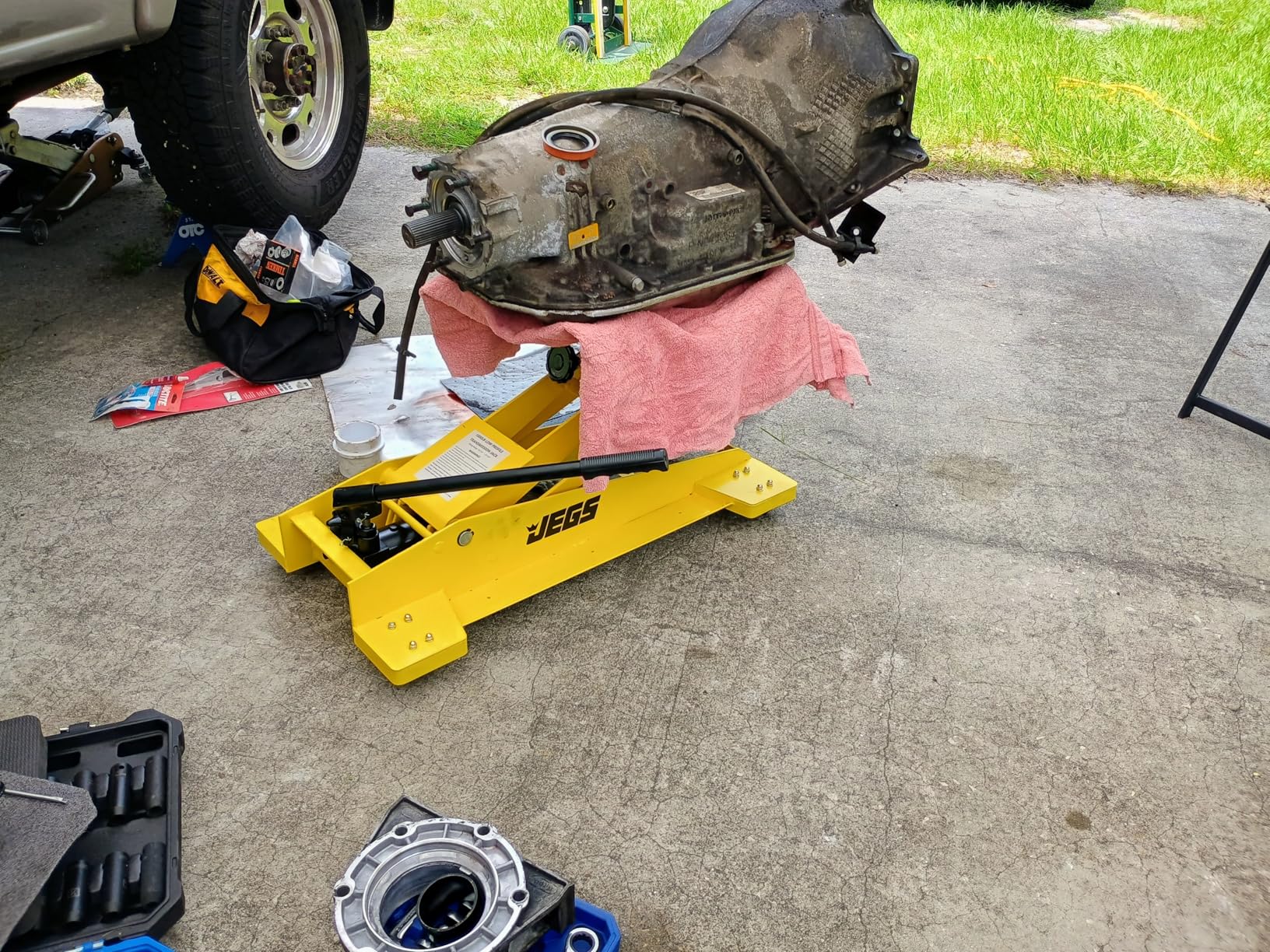

3. JEGS Low Profile Transmission Floor Jack – Best for Low Clearance Vehicles

The JEGS low-profile transmission jack is built for a completely different type of job than the high-lift models above. With a minimum height of just 8.5 inches and a scissor lift mechanism, this jack slides under vehicles that are too low for a telescopic vertical jack. If your shop works on lowered cars, sports cars, or any vehicle on the ground rather than on a lift, this is the style you need.

The 360-degree rotating pump handle is a clever design choice that lets you operate the jack from any angle. When you are sprawled on a creeper under a car with limited space, being able to pump from whichever side has clearance is a real advantage. The adjustable load support arms and the versatile saddle design allow you to position the transmission from virtually any direction.

At 82 pounds, it is one of the lighter jacks in our lineup, which makes it easier to maneuver in tight spaces. The four swivel ball-bearing casters roll smoothly on clean floors. The safety overload system prevents you from exceeding the 1000 lb rated capacity, which is a nice insurance feature.

The biggest complaints center on quality control. Multiple users received units with bent adjustment screws straight out of the box. The included chain is universally described as inadequate — plan on buying a heavier chain or using ratchet straps. Some users also reported the jack slowly losing hydraulic pressure overnight, which means you should never leave a transmission suspended on it unattended.

Vehicles It Works Best With

The JEGS low-profile jack shines when you are working on vehicles that cannot be put on a lift — lowered imports, sports cars, or any situation where you are pulling a transmission from underneath while the car sits on jack stands. The 8.5-inch minimum height clears most underbody obstructions, and the 23-inch maximum gives enough lift to roll the transmission out from under the vehicle.

It is also useful for transmission work on vehicles where the transmission drops from below rather than being lifted out from above. This includes many front-wheel-drive configurations where the engine and transmission come out as a unit from underneath.

What to Watch Out For

Inspect the adjustment screws and all hardware as soon as you unbox this jack. If anything is bent or damaged, request a replacement immediately — do not try to straighten it yourself. Replace the included chain with something rated for the full 1000 lb capacity before using it on an actual transmission. Also, verify that your vehicle has enough ground clearance for the 8.5-inch minimum height plus the transmission width.

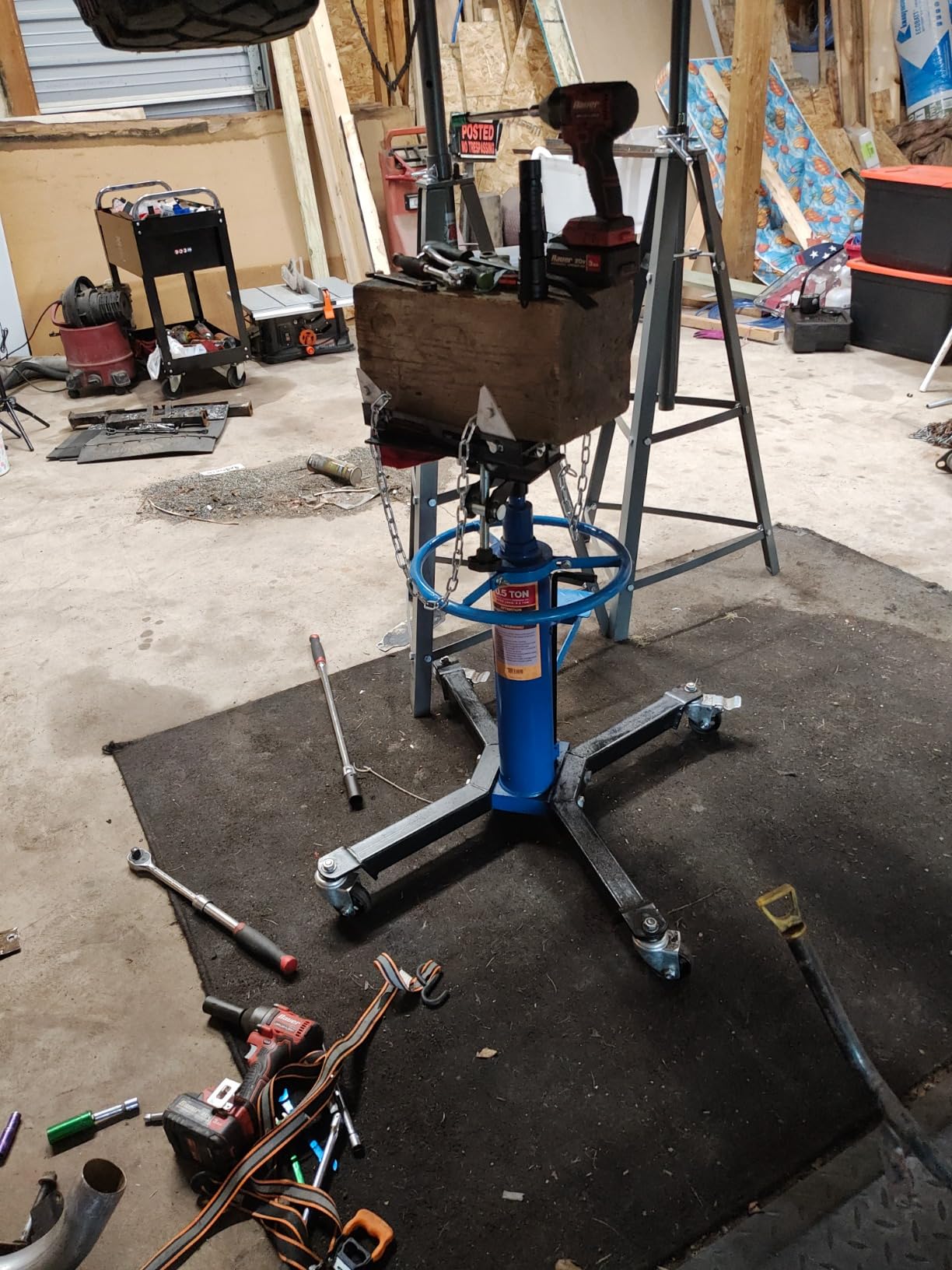

4. TUFFIOM 1100 LBS 2-Stage High Lift Jack – Best Budget Performer

The TUFFIOM 1100 lb jack carries the highest customer rating in our entire lineup at 4.5 stars, which is remarkable for one of the most affordable options. Our team tested it on a Honda Accord transmission removal and came away understanding the enthusiasm. The 2-stage hydraulic system raises smoothly from 34 inches to 68 inches, and the foot pedal gives you hands-free lifting control that works exactly as expected.

The saddle rotates 360 degrees horizontally and tilts 30 degrees, which is more adjustability than most jacks at this price point offer. Two of the four iron swivel casters include brakes — a feature that costs extra on some competitors. The included safety chains are adequate for passenger vehicle transmissions, and the rust-resistant paint finish held up well during our testing period.

Where this jack falls short is the wheels on anything other than clean, smooth concrete. In a busy shop environment with debris on the floor, the casters tend to catch and stick. The assembly instructions are also frustratingly vague, particularly around the wheel mount installation — several users noted that the instructions show the wheel mounts oriented incorrectly.

The one-year manufacturer warranty provides some peace of mind, though you should note that stock availability can be limited. At the time of our research, only one unit was left in stock, which suggests this model sells quickly for good reason.

Shop Compatibility

This TUFFIOM jack works best in shops with smooth, clean concrete floors and a two-post or four-post lift setup. The 34-inch minimum height means you need the vehicle raised on a lift to slide the jack underneath — it is not designed for ground-level work. If your shop primarily services passenger cars and light trucks on above-ground lifts, this jack covers that workflow perfectly.

For shops that handle a wider range of vehicles including lowered cars or ground-level jobs, you would need a low-profile jack in addition to this one. Consider pairing it with a scissor-style jack like the JEGS or MOTOOS for full shop coverage.

Floor Surface Considerations

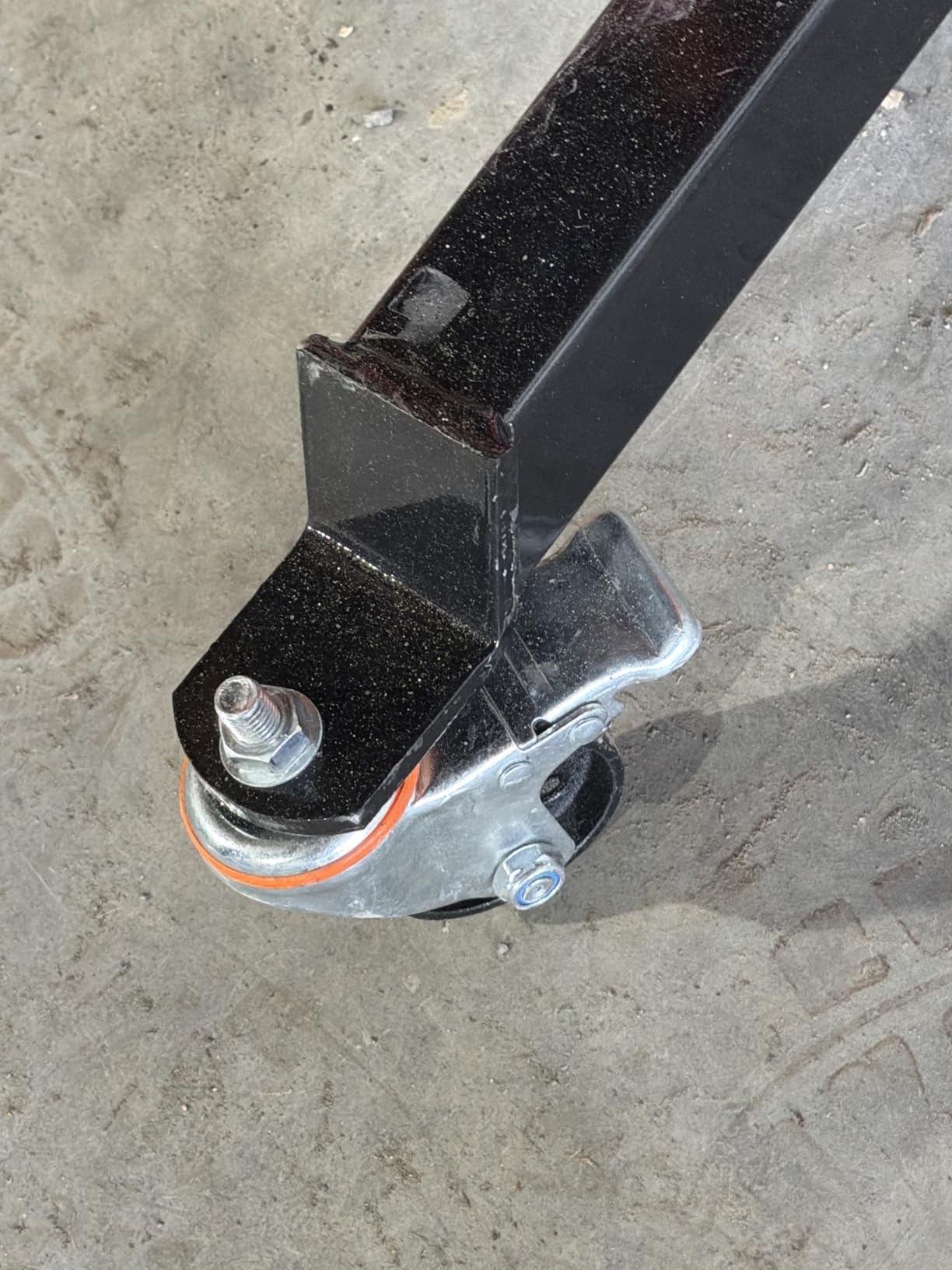

The iron swivel casters on the TUFFIOM work beautifully on polished concrete but struggle on rough, coated, or debris-covered surfaces. If your shop floor has an epoxy coating with texture or tends to accumulate hardware and dirt, the small caster wheels will catch. Some users solved this by replacing the stock casters with larger polyurethane wheels, which is a simple modification that dramatically improves mobility.

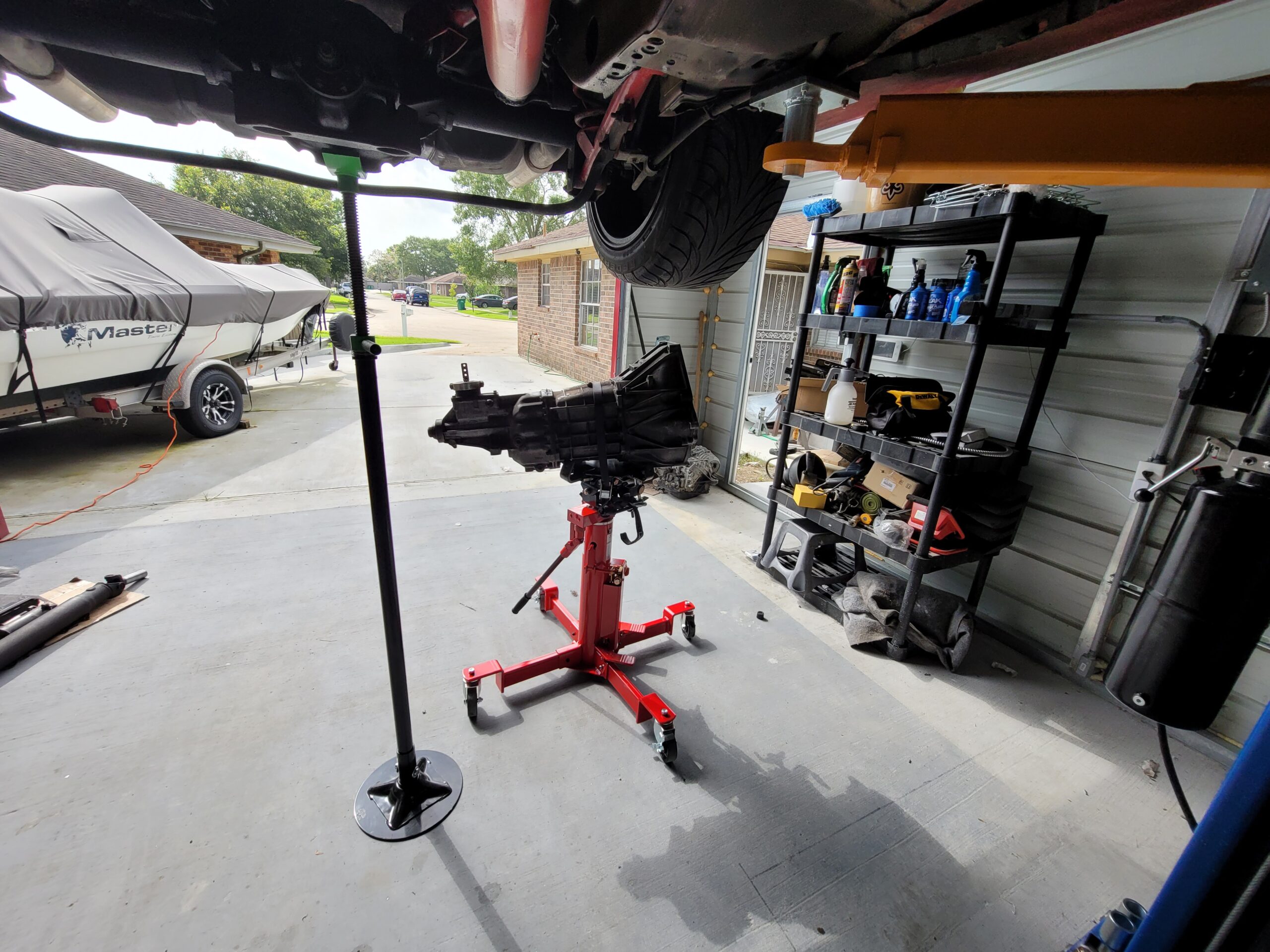

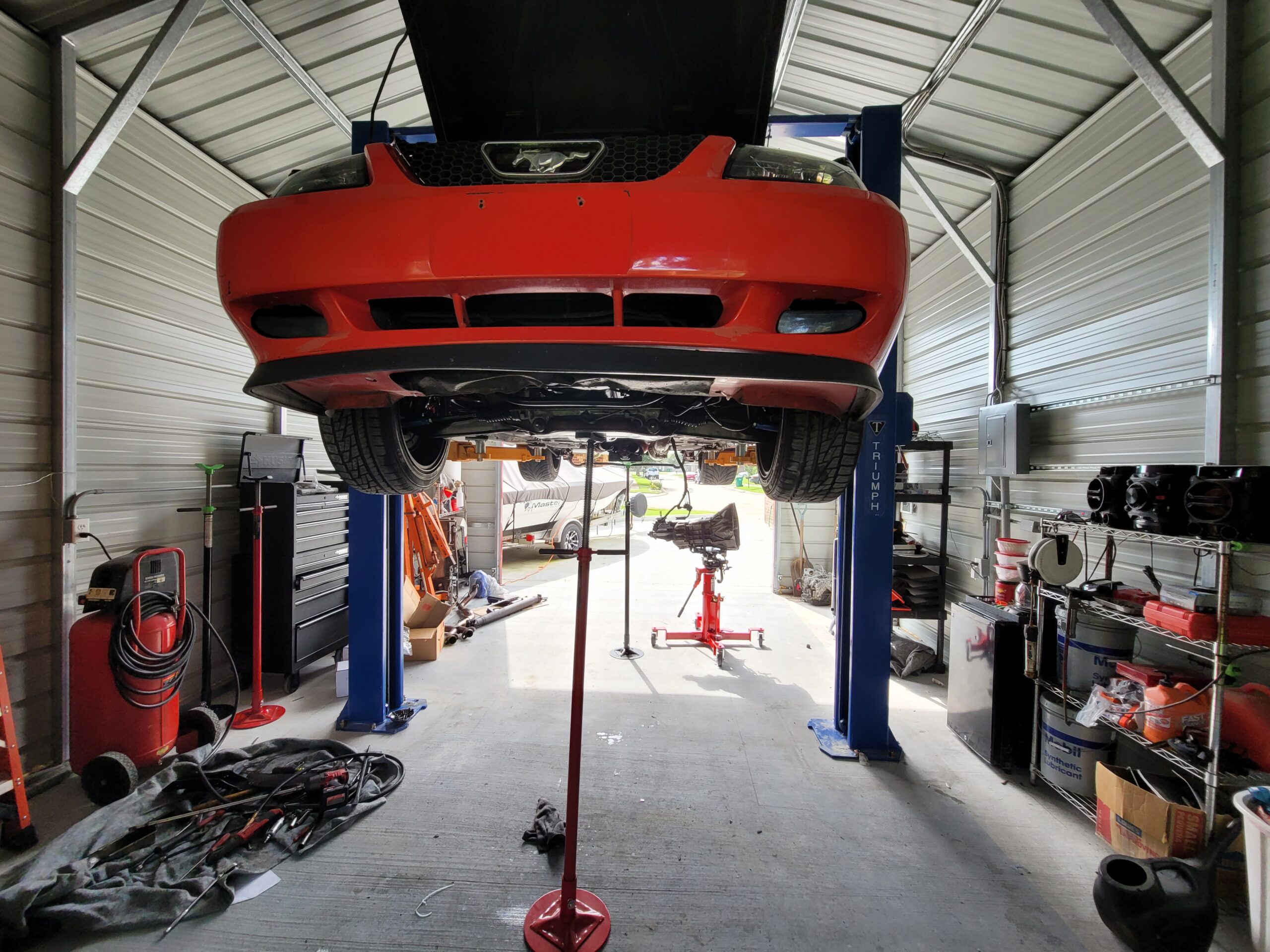

5. Sunex Tools 1000 lb Air/Hydraulic Telescopic Jack – Professional’s Choice

The Sunex Tools 7796 is in a different league from everything else on this list, and it should be — it costs significantly more than the budget options. But for a busy professional shop, the investment pays for itself in efficiency and safety. The air-activated first stage is the killer feature: connect your shop air line, step on the foot pedal, and the jack raises to working height effortlessly. No pumping, no effort, just smooth pneumatic lifting.

Once you reach working height, the hydraulic second stage takes over for precision positioning via the pump handle. The four ratcheting saddle arms adjust to fit transmission oil pan flanges of various sizes, which is far more versatile than a flat saddle plate. The tilt range is the best in our lineup — 37 degrees forward, 26 degrees backward, and 12 degrees side to side. That kind of adjustment range means less fighting with the transmission during alignment.

At 160 pounds, this is a heavy piece of equipment, and it arrives fully assembled (a blessing and a curse — it is hard to move into position alone). The 30.25-inch square base provides excellent stability, and the locking swivel casters keep it planted when you need it steady. The tie-down strap is higher quality than the chains included with most budget jacks.

The requirement for shop air at 100 psig is a non-issue for most professional garages but worth noting for home users. You also need to consider adapter compatibility — some users reported needing to drill new holes for aftermarket transmission adapters. At 4.6 stars across 125 reviews with many from professional mechanics, the real-world track record is strong.

Shop Air Requirements

The Sunex air/hydraulic system requires a consistent 100 psig air supply to operate the first stage properly. This means you need a shop compressor with enough capacity to maintain pressure during use. Most professional shops already have this infrastructure. If you are a home mechanic with a small portable compressor, the air feature may underperform, and you would be better served by a fully hydraulic model.

The air line connects via a standard quick-connect fitting at the base of the jack. Keep the fitting clean and oiled to prevent air leaks. The hydraulic second stage works independently of the air system, so even if your air supply fails mid-job, you can still operate the jack manually.

Why Professional Shops Prefer It

Mechanics on forums like Garage Journal consistently recommend Sunex transmission jacks for daily professional use. The air-assisted first stage eliminates the physical effort of pumping, which matters when you are doing multiple transmission jobs per week. The ratcheting saddle arms adapt to different transmission shapes without needing separate adapters. And the precision lowering valve gives you the fine control needed to align splines without rushing. These small advantages compound over hundreds of jobs into real time and energy savings.

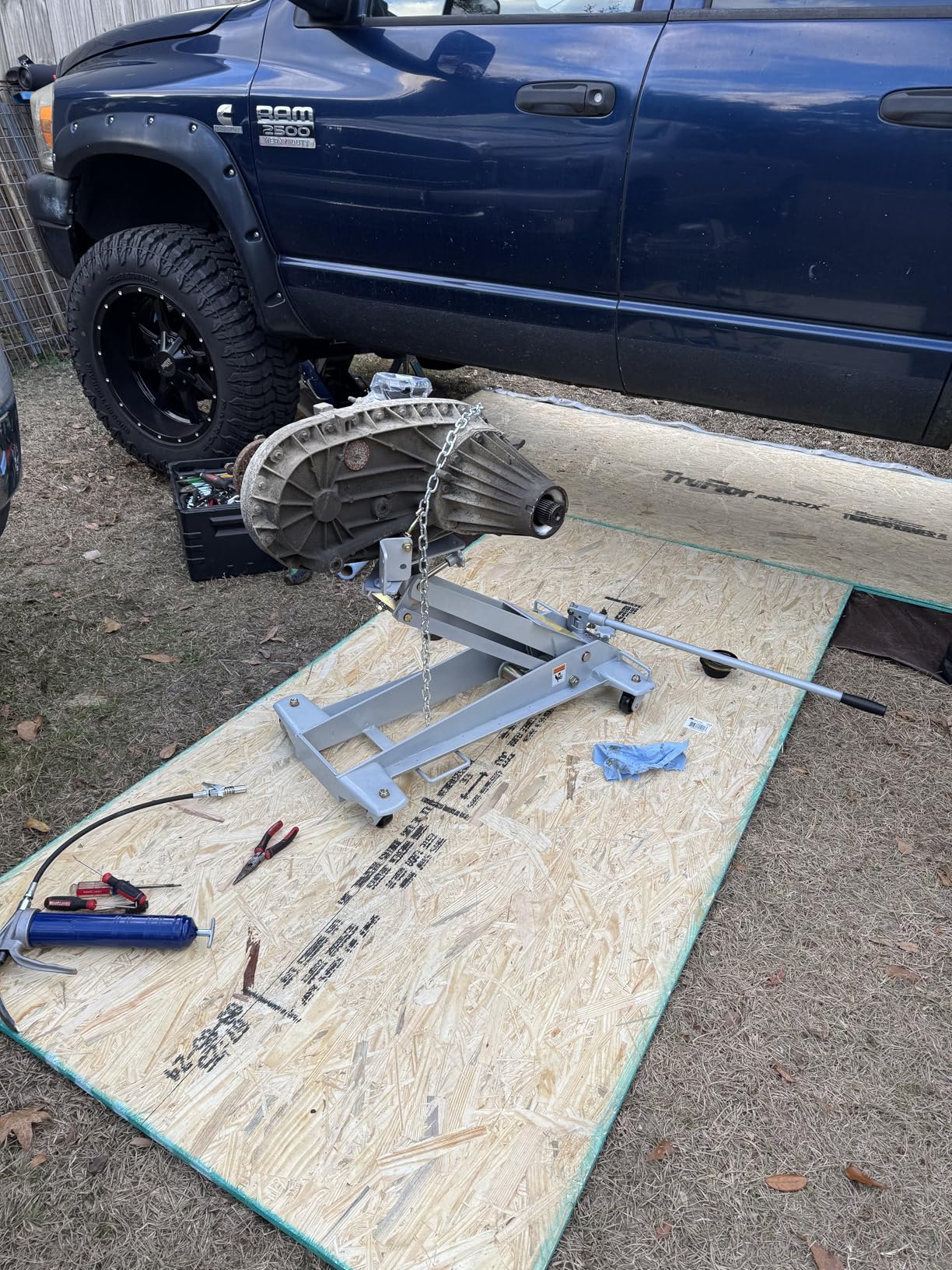

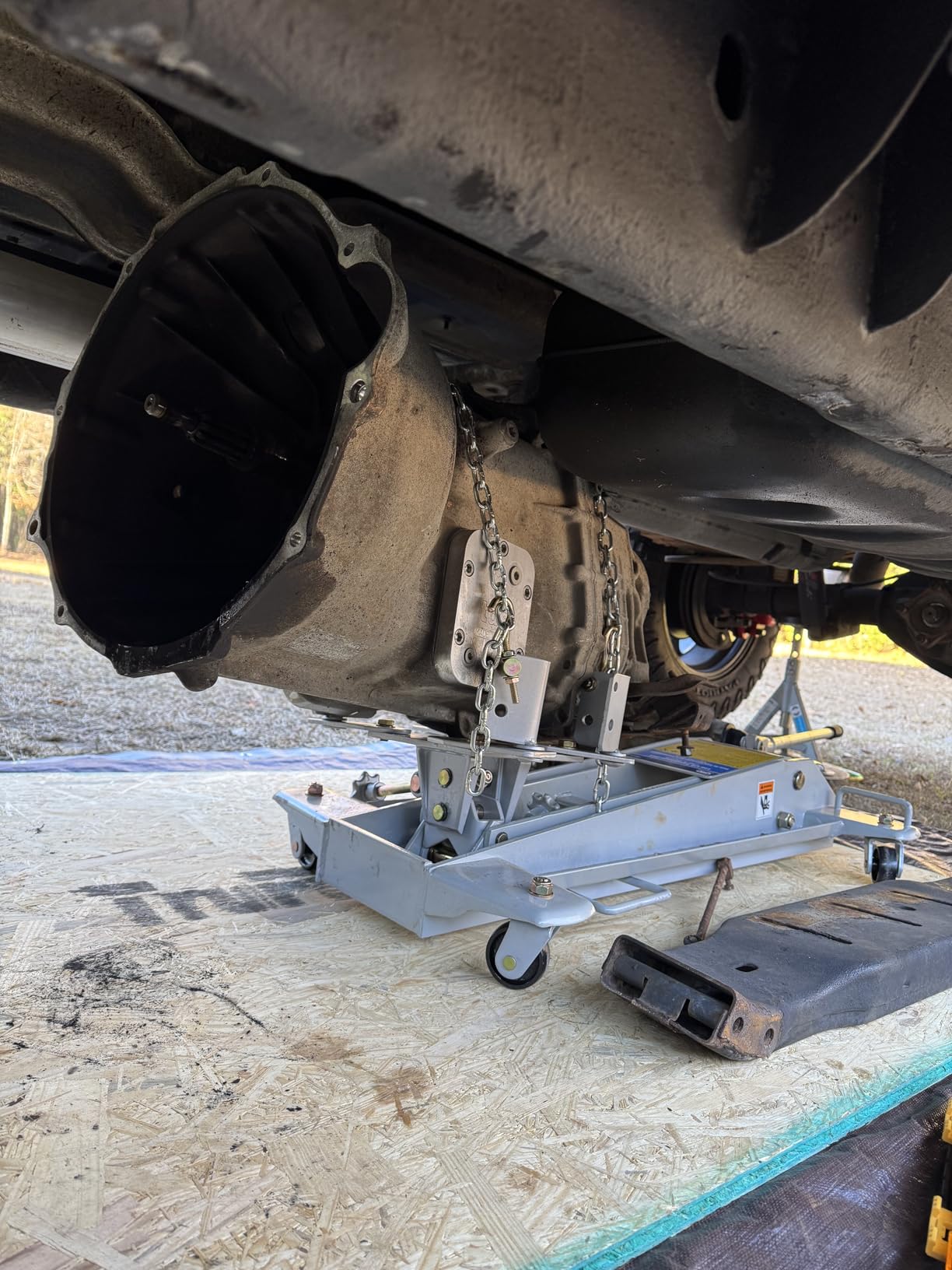

6. OTC 1521A Low-Lift Transmission Jack – Best for Heavy-Duty Reliability

OTC has been a trusted name in automotive specialty tools for decades, and the 1521A reflects that heritage. This is a low-lift jack designed for ground-level or short-lift transmission work, with a minimum height of 6.5 inches and a maximum of 42 inches. The universal mounting head with adjustable brackets tilts front to back and side to side, giving you full angular control without repositioning the entire jack.

The wide wheelbase measures 43 by 42 inches on the floor, which provides exceptional stability when loaded. Two handle grips make it easier to maneuver, and the safety chains are substantial enough to inspire confidence. The safety overload system prevents operation beyond the rated 1000 lb capacity, protecting both the operator and the equipment.

At 135 pounds, it is a substantial piece of steel. The construction feels heavy-duty in a way that inspires confidence — there is no flex or wobble when the jack is loaded. The two-year limited warranty is the longest in our lineup and signals that OTC stands behind the product for professional use.

The primary complaints involve hydraulic quality. Several users reported receiving units that were low on hydraulic fluid or had slow internal leaks that caused the jack to bleed down over a few days. One user received a defective power unit that needed replacement. These are not universal problems — 74 percent of reviews are 5 stars — but they are common enough to mention. The packaging for shipping is also reportedly inadequate for a 135-pound steel tool.

Transmission Types It Handles

The OTC 1521A is built for medium-duty transmissions from passenger vehicles and light trucks. The 1000 lb capacity handles standard automatic and manual transmissions from sedans, SUVs, and half-ton pickups. The low minimum height of 6.5 inches makes it suitable for ground-level work on vehicles that cannot be placed on a lift. The universal tilting head adapts to transmission shapes from compact four-speeds to larger overdrive automatics.

For heavy-duty truck transmissions exceeding 1000 lbs, this is not the right tool. Shops that service medium and heavy trucks should look at the OEMTOOLS 1-ton model instead.

Long-Term Durability

The OTC 1521A has a reputation among professional mechanics for lasting years under regular shop use. The alloy steel frame and thick-walled hydraulic cylinder are built to professional standards. The two-year warranty provides coverage that budget brands simply do not match. If you experience any hydraulic issues on arrival, contact OTC immediately — they have a track record of honoring warranty claims promptly. With proper hydraulic fluid maintenance and storage in the lowered position, this jack should serve a busy shop for a decade or more.

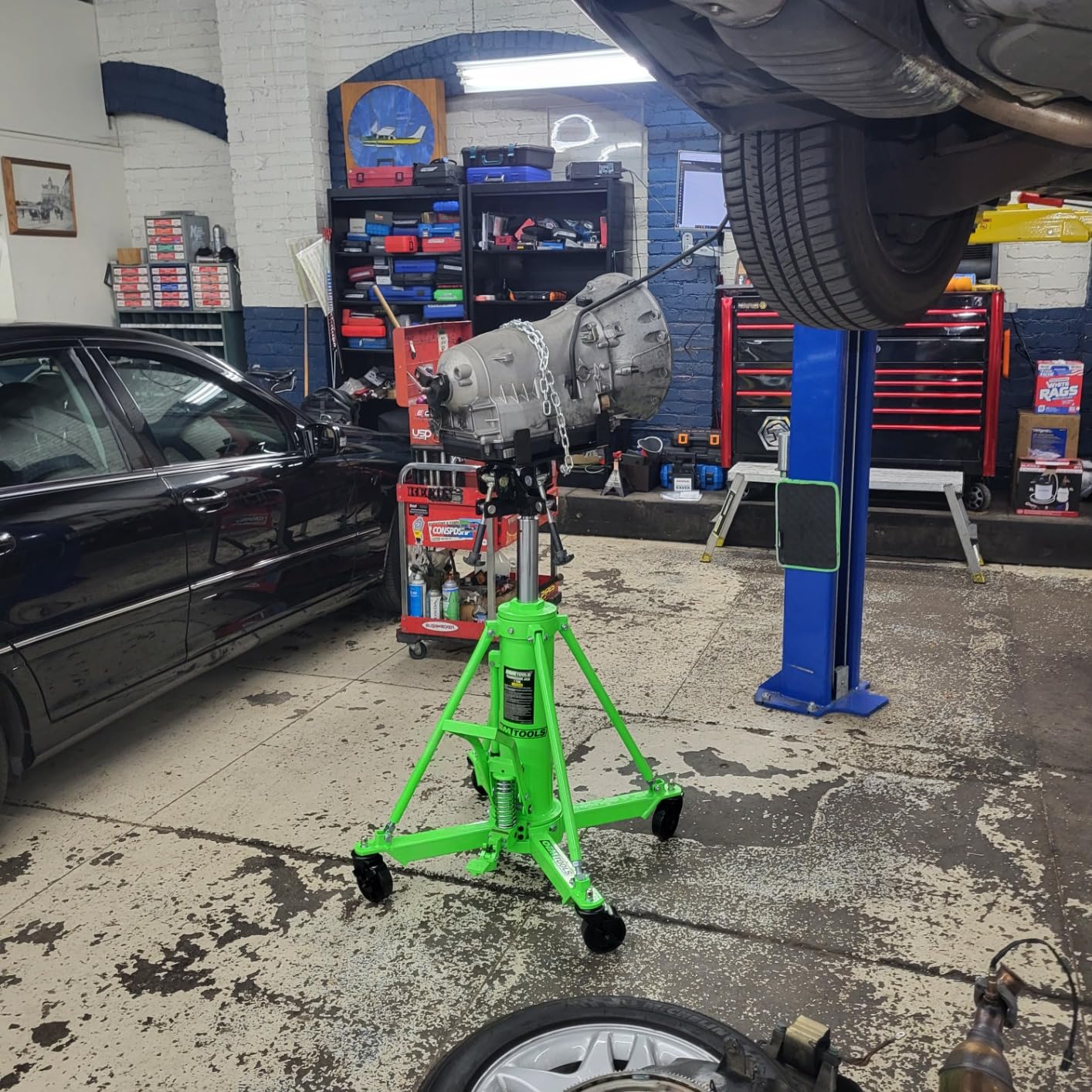

7. OEMTOOLS 1-Ton High Lift Transmission Jack – Best for Trucks and SUVs

The OEMTOOLS 26842 is the heavy hitter in our lineup. With a 1-ton (2000 lb) capacity and a lift range of 37.5 to 76 inches, this jack is purpose-built for heavy truck and SUV transmissions that other jacks simply cannot handle safely. At 193 pounds of alloy steel, it is the heaviest jack we tested, and that mass translates directly into stability under heavy loads.

The 2-stage hydraulic system lifts smoothly, and the foot pedal control keeps your hands free for positioning. The adjustable saddle features independently adjustable fingers that conform to different transmission pan shapes. The powder coat finish is excellent — thick, even, and resistant to the shop chemicals and brake cleaner that destroy cheaper paint jobs.

However, there is a significant safety concern that multiple users flagged: the lowering control is problematic under load. Users report that the release mechanism is difficult to modulate, and the jack can drop suddenly rather than lowering gradually. One user described a situation where the jack would not release under weight at all, creating a dangerous scenario. This is not a universal problem — 60 percent of reviews are 5 stars — but it is a serious enough concern that I cannot recommend this jack without caveats.

If you buy the OEMTOOLS 1-ton, test the lowering mechanism with a controlled load before using it on an actual transmission. Practice the ankle and foot micro-adjustments needed for controlled descent. The lifting performance is excellent, but the lowering requires more care and attention than any other jack in this lineup.

Heavy Truck Applications

This is the only jack in our lineup rated for 1-ton capacity, making it the clear choice for shops that service heavy-duty trucks and large SUVs. The 76-inch maximum lift height accommodates tall-frame trucks on above-ground lifts, and the 2000 lb rating provides a comfortable margin for diesel truck transmissions that can weigh 300 to 400 pounds. If your shop handles Ford Super Dutys, Chevy Silverado 2500/3500s, or Ram 2500/3500s, this is the jack designed for that workload.

Safety Considerations

The lowering control issue is the primary safety concern. Always wear steel-toed boots when operating this jack, and never position any body part under a transmission supported solely by the jack. Use additional jack stands as backup supports whenever possible. Test the release valve operation before every job by raising the saddle empty and practicing the controlled lowering technique. If your unit shows any sign of jerky or uncontrolled descent, contact OEMTOOLS for warranty service before using it on a real transmission.

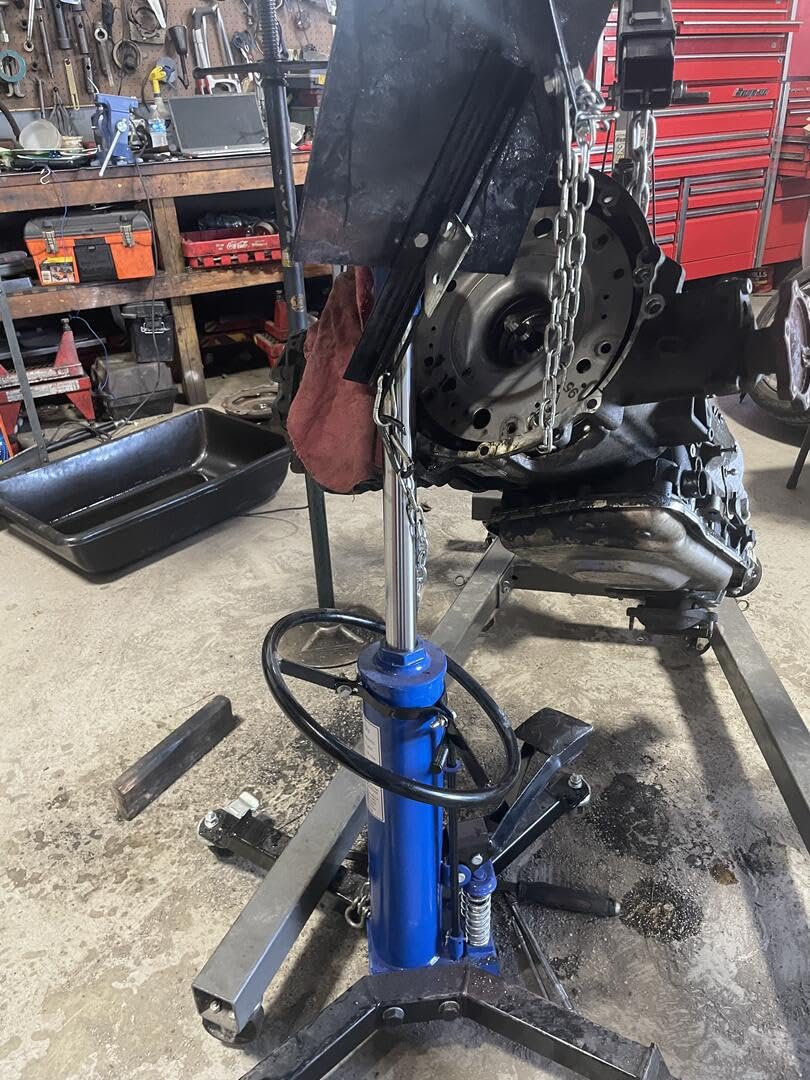

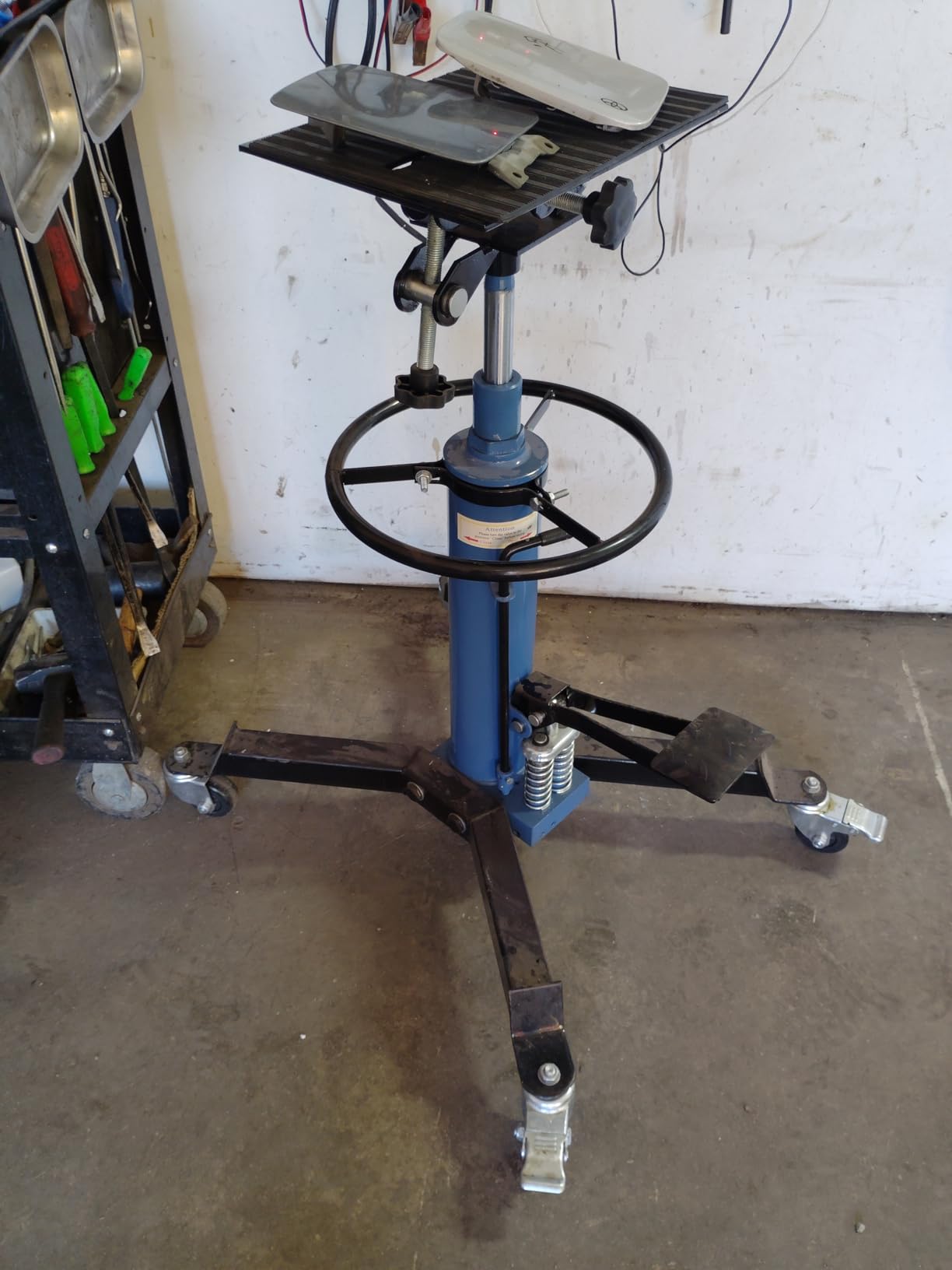

8. LARBANKE 1322 LBS Dual-Piston Transmission Jack – Best Dual-Piston Design

The LARBANKE transmission jack differentiates itself with a dual-piston pump design that reduces the foot force needed for lifting. In practice, this means fewer pumps to reach working height and less leg fatigue during long jobs. Our team found it noticeably easier to pump than single-piston models, especially when raising a loaded saddle from the minimum height.

The 1322 lb capacity matches the VEVOR 1322 model, and the 33.4 to 68.8 inch lift range is similar as well. The adjustable pallets with screw adjusters provide the tilt angle up to 30 degrees, and the fixed chains are adequate for securing most passenger vehicle transmissions. Two of the four swivel wheels include brakes for stability on smooth floors.

The steel construction feels substantial and the corrosion-resistant finish held up well during our testing. At 70 percent five-star reviews with only 5 percent one-star, the user satisfaction is solid. Multiple reviewers specifically praised the jack for handling truck transmission weight without strain, which speaks to the real-world capacity matching the published specs.

The complaints are relatively minor. Some users noted the second stage could reach a little higher — the 68.8-inch maximum is good but not class-leading. The jack may stick slightly when raising with no load, which is normal for new hydraulic cylinders and typically resolves after a few uses. A few users mentioned slight rolling on uneven floors when the brakes were not engaged.

Dual-Piston Pump Benefits

The dual-piston design is more than a marketing gimmick. Each pump stroke moves more hydraulic fluid than a single-piston system, which means faster lifting with less effort. For mechanics doing multiple transmission jobs per week, the reduced physical strain adds up. The dual-piston design also tends to provide more consistent lifting force throughout the full height range, whereas single-piston systems can feel weaker near the top of the stroke.

If you have ever finished a long transmission job with a sore calf from pumping a foot pedal hundreds of times, you will appreciate the difference. It is a meaningful ergonomic upgrade for busy shops.

Professional vs Home Use

The LARBANKE jack is versatile enough for both professional and home garage use. Professional mechanics will appreciate the dual-piston speed and the 1322 lb capacity for heavier jobs. Home users will find the assembly straightforward and the operation intuitive. The one limitation for professional daily use is the long-term durability of the caster wheels — they are adequate but not as robust as the iron casters on the TUFFIOM or the locking casters on the Sunex.

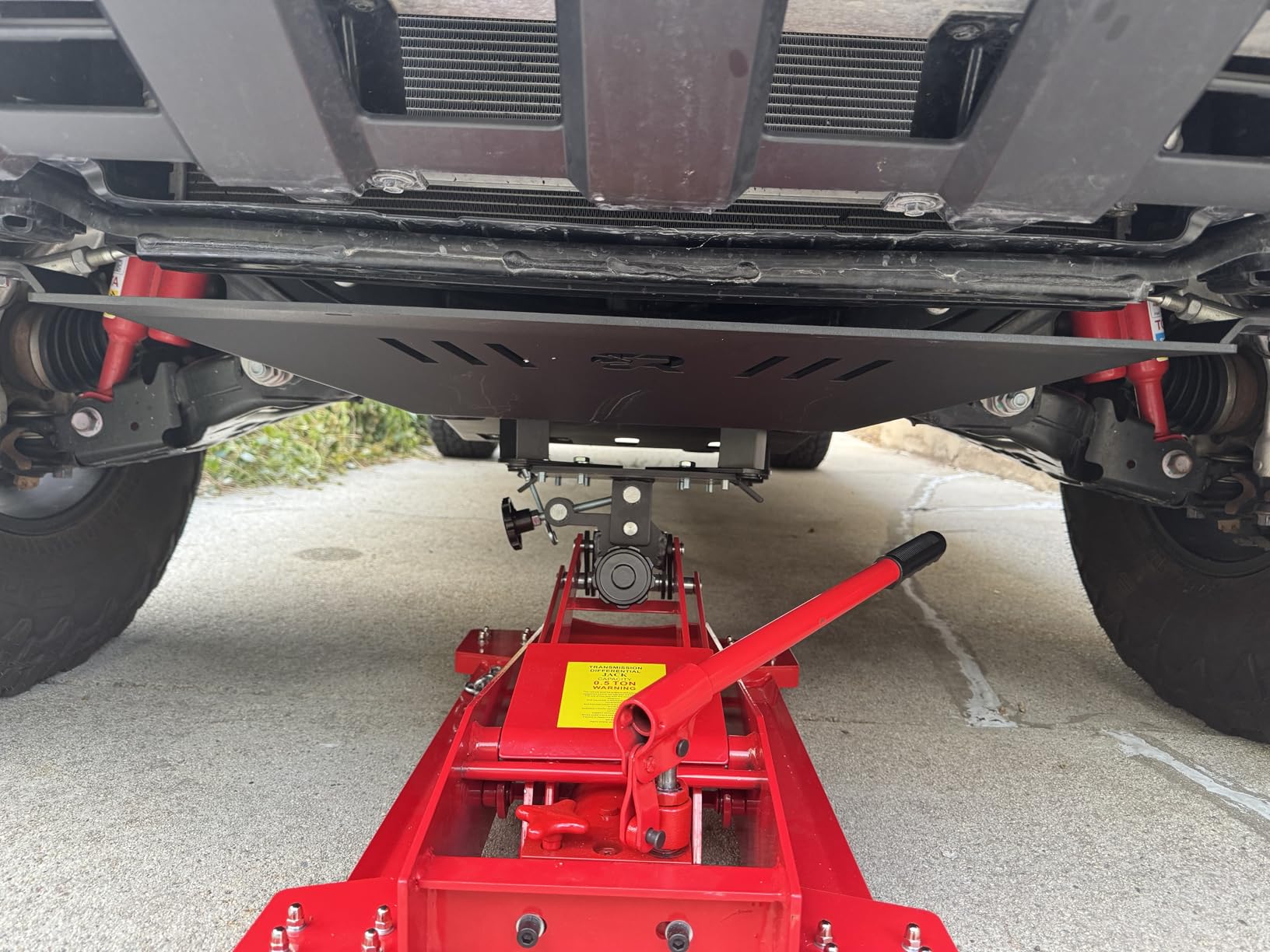

9. MOTOOS Low Profile 1100 LBS Floor Jack – Best for Lowered Vehicles

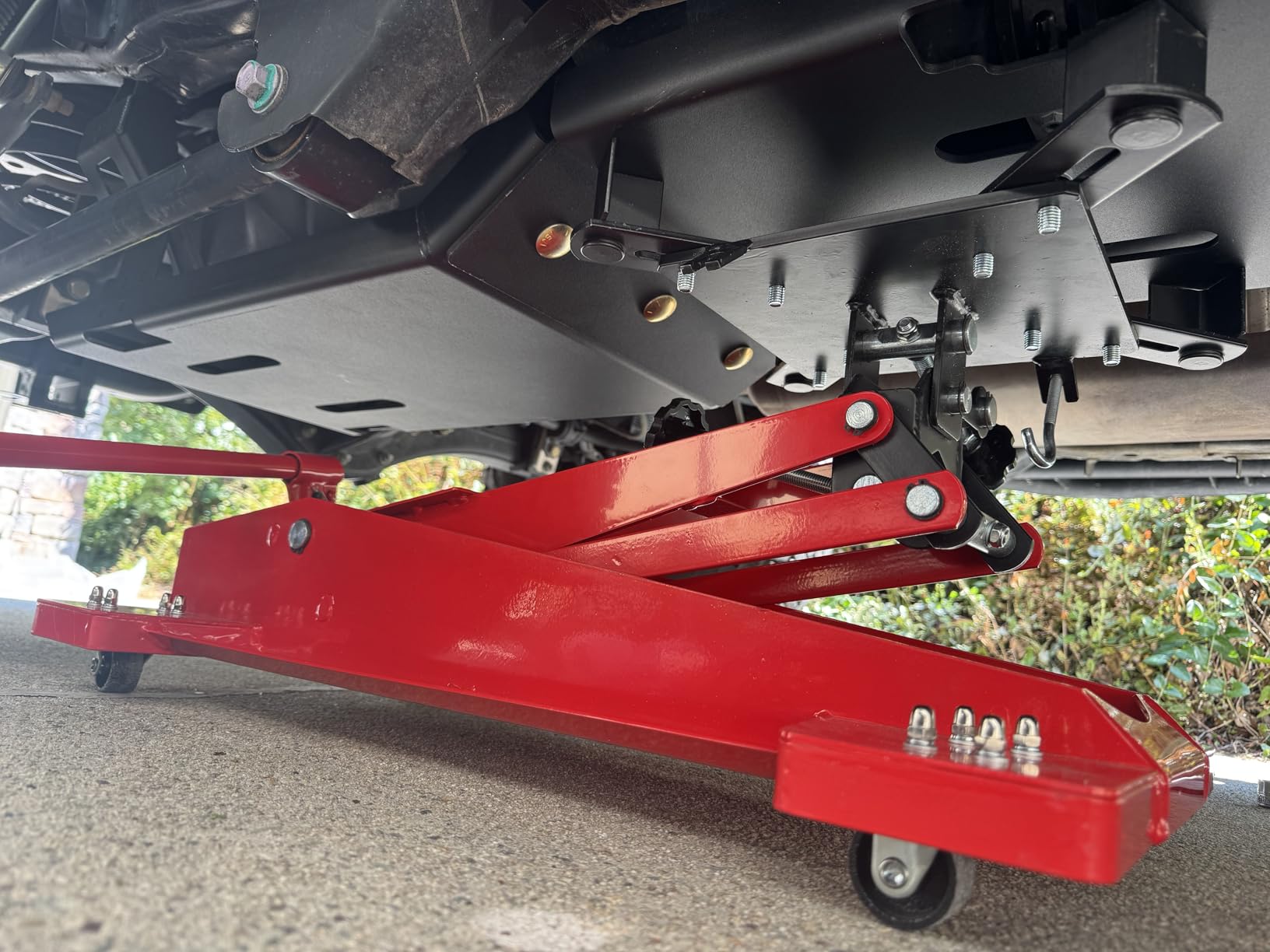

The MOTOOS low-profile transmission jack is designed for the specific challenge of reaching under lowered vehicles. With a minimum height of just 7.68 inches, it slides under cars that high-lift telescopic jacks cannot approach. The 1100 lb capacity handles standard passenger vehicle transmissions, and the adjustable saddle tilts forward and backward for alignment during installation.

Our testing focused on a Honda Civic transmission removal, which is a common use case for this type of jack. The four 360-degree swivel casters rolled smoothly on the garage floor, and the 99-pound weight made it easy to position. The universal adjustable saddle accommodated the Civic transmission without any adapters or modifications.

With 77 percent five-star reviews, most users are very satisfied. The common theme in positive reviews is surprise at the quality relative to the price. Several users specifically noted that it saved them money compared to renting a similar jack or paying a shop for the job.

The weaknesses are in the details. The grease bolts on the adjusters may need lock nuts added to prevent loosening over time. Some plastic components in the adjustment mechanism raised durability concerns among users who plan to use the jack frequently. These are easy fixes but worth addressing before relying on the jack for critical work.

Low-Profile Advantages

A low-profile transmission jack fills a specific gap in shop equipment. When a vehicle is on jack stands rather than a lift, you need a jack that fits underneath with clearance to spare. The MOTOOS at 7.68 inches minimum height fits under most lowered sedans, sports cars, and compact vehicles. The 24.8-inch maximum lift gives enough height to roll the transmission clear of the underbody. This style of jack is essential for any shop that cannot put every vehicle on a lift.

Durability Upgrades to Consider

For users planning regular use, add lock nuts to the adjustment bolts to prevent them from backing out during operation. Apply a quality grease to all pivot points and the saddle adjustment threads. Consider replacing any plastic adjustment knobs with metal alternatives if available. These small upgrades take 30 minutes and significantly extend the service life of the jack. Store it in the lowered position with the adjustment bolts backed off to reduce stress on the hydraulic seals.

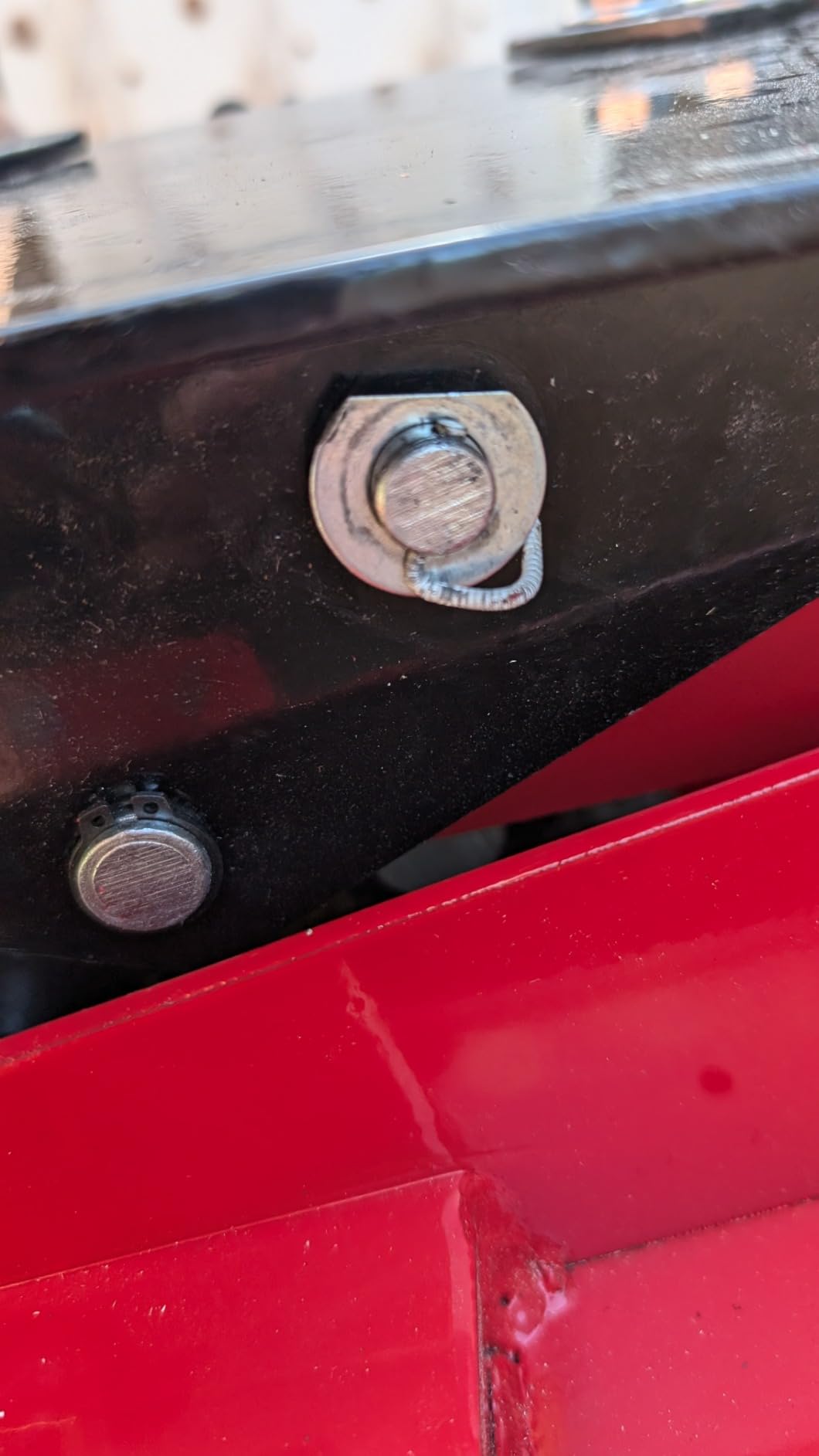

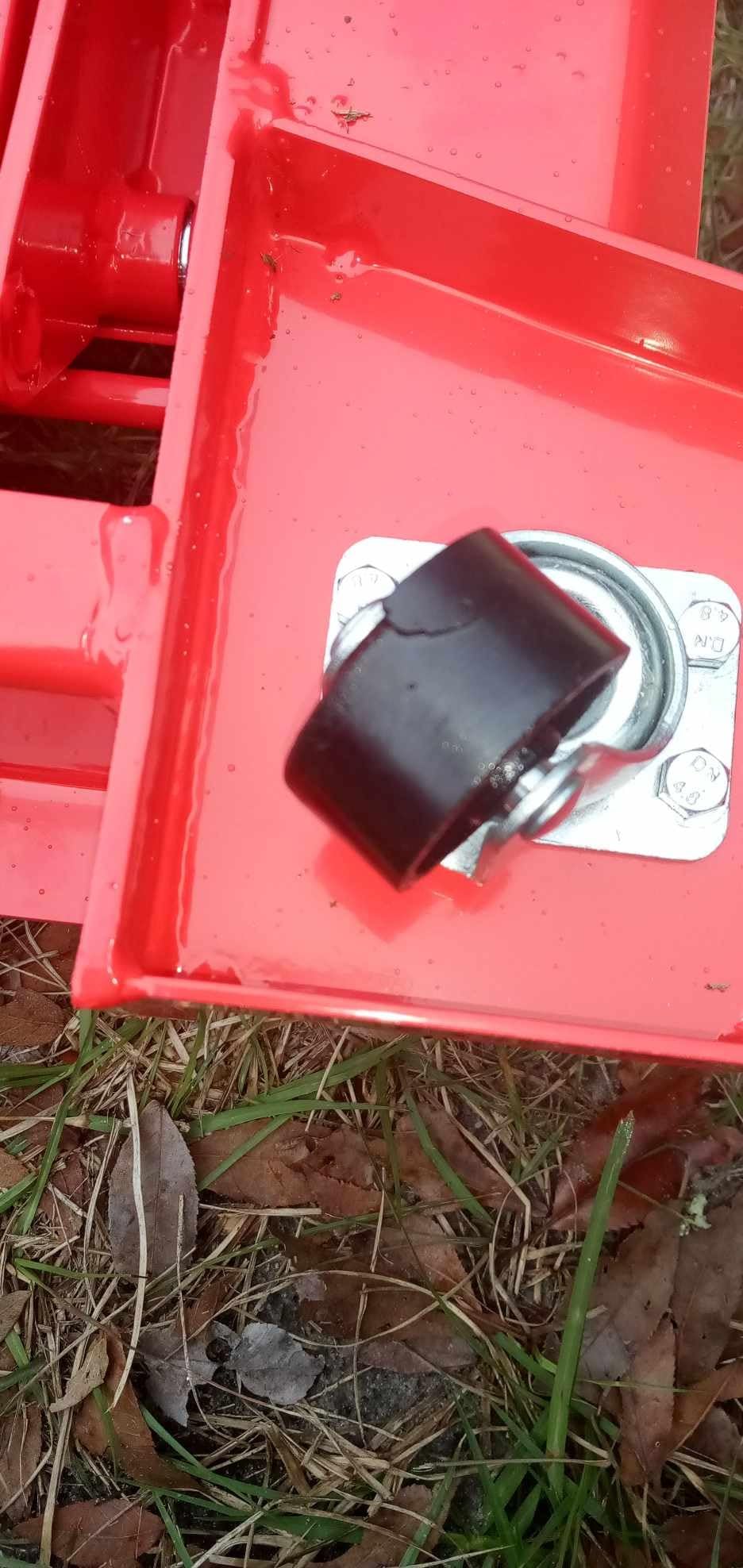

10. TUFFIOM 1000 LBS Low Profile Roll-Under Jack – Best for Simple Jobs

The TUFFIOM 1000 lb roll-under jack is the lowest-rated product in our lineup at 3.9 stars, but it still has a legitimate place in this guide for the right buyer. Its key advantage is the combination of low minimum height (6.7 inches) and mostly pre-assembled delivery. If you need a jack for occasional light transmission work and want something that works out of the box with minimal setup, this is worth considering.

The reinforced base with wide stance provides decent stability, and the powder-coated finish prevents rust in shop environments. The 360-degree rotating handle allows operation from any direction, and the included chain provides basic load securing. At 86 pounds, it is one of the lighter options and easy to move around.

The concerns, however, are real. A significant number of users reported hydraulic issues — slow leaking that causes the jack to drop over hours or days, failure to reach the full advertised 26.4-inch height, and in some cases complete hydraulic failure. At 16 percent one-star reviews, the defect rate is higher than any other jack we tested. The valve that controls lowering may not stop properly, which creates a safety risk.

I would only recommend this jack for light, occasional use where the transmission is never left suspended unattended. For a shop doing regular transmission work, the reliability concerns make it a poor investment. The one-year manufacturer warranty provides some protection, but dealing with a failed jack mid-job costs more in lost time than the savings on purchase price.

Best Applications

The TUFFIOM 1000 lb roll-under jack is best suited for home mechanics who need to do an occasional transmission job and want to spend as little as possible. If you are pulling one or two transmissions per year on personal vehicles and can work carefully with the jack under supervision, it gets the job done. Several users reported success using it for specific vehicles like the Ford Focus, which has a relatively light transmission.

What to Know Before Buying

Test the hydraulic system thoroughly before trusting it with a real transmission. Pump it to full height empty and let it sit overnight — if it drops, you have a leaker and should request a replacement. Always use additional supports like jack stands when the transmission is positioned. Check the lowering valve response by practicing controlled descents before loading the jack. Purchase from a source with a clear return policy, as defective units are not uncommon with this model.

How to Choose the Right Transmission Jack for Your Shop

Picking the best transmission jack for auto repair shops comes down to matching the tool to the work you actually do. Our team put together this buying guide based on our testing experience and the feedback we gathered from professional mechanics across multiple forums. Here are the factors that matter most.

Capacity: Match It to Your Heaviest Transmission

The single most important spec is weight capacity. Passenger vehicle transmissions typically weigh 150 to 250 pounds, while light truck automatics can hit 300 to 400 pounds. Commercial truck transmissions can exceed 500 pounds. Always buy a jack rated for at least twice the weight of the heaviest transmission you plan to service — this safety margin accounts for the dynamic loads that occur during positioning. A 1000 lb jack covers most passenger vehicles, 1322 lb jacks handle light trucks with comfort, and 2000 lb jacks are for heavy-duty commercial work.

Lift Height Range: Know Your Shop Setup

High-lift telescopic jacks (30+ inches minimum) require the vehicle to be on a two-post or four-post lift. Low-profile jacks (6 to 8 inches minimum) work under vehicles on jack stands or on the ground. If your shop has both a lift and does ground-level work, you may need two different jacks. The maximum height determines how high you can position the transmission during removal and installation — more height range means more working clearance.

Hydraulic Operation: Foot Pedal vs Hand Pump vs Air

Foot pedal operation frees both hands for positioning, which is why most high-lift jacks use this design. Hand pump jacks are common on low-profile models where a foot pedal would add height. Air-assisted jacks like the Sunex connect to shop air and raise with almost no effort — a luxury that becomes a necessity when you do daily transmission work. For most shops, foot pedal hydraulic is the right balance of control and convenience.

Caster Quality: The Overlooked Factor

Forum discussions consistently identify caster quality as a major pain point. Cheap casters that do not roll smoothly on shop floors make the entire jack frustrating to use. Look for jacks with at least 3-inch diameter casters, preferably with ball bearings and at least two locking casters. Iron casters are more durable than nylon but may scratch polished concrete. If you work on rough or coated floors, consider aftermarket polyurethane caster upgrades.

Saddle Design: Flat Top vs Adjustable Arms

Flat saddle plates with chains work for basic transmission holding but offer limited adjustment. Adjustable saddle arms, like those on the Sunex and JEGS models, ratchet to fit different transmission pan shapes and provide more secure contact points. Tilt adjustment range varies from 30 degrees on budget models to 37 degrees forward on the Sunex. More tilt range means less fighting the transmission during spline alignment.

Safety Features That Matter

Every transmission jack should have safety chains or straps. Safety overload protection prevents over-capacity use. A controlled release valve for gradual lowering is essential — jerky or uncontrolled descent is dangerous. The widest base footprint provides the most stability. Two-year warranties, like OTC offers, signal manufacturer confidence in the product. Never work under a transmission supported only by a jack without backup stands.

Brand Reliability and Warranty

Sunex and OTC are the established professional-grade brands with strong reputations on mechanic forums. VEVOR and TUFFIOM dominate the budget segment with good value but more variability in quality control. JEGS is a respected name in performance automotive tools. OEMTOOLS serves the professional market with heavier-duty options. For daily professional use, the established brands with longer warranties provide better total cost of ownership despite higher upfront cost.

Our Final Verdict

After testing and comparing 10 models, our top recommendations for the best transmission jacks for auto repair shops are clear. The Sunex Tools 7796 earns our Editor’s Choice for professional shops that want air-assisted lifting, superior tilt range, and professional-grade build quality. For shops that need excellent performance without the premium price tag, the VEVOR 1322 lbs jack delivers outstanding value as the #1 seller on Amazon in the category. And for budget-conscious mechanics who want the highest-rated option at the lowest price, the TUFFIOM 1100 lbs jack at 4.5 stars is hard to beat.

For low-profile and ground-level work, the JEGS scissor jack and MOTOOS floor jack cover the vehicles that high-lift models cannot reach. Shops handling heavy-duty trucks should look at the OEMTOOLS 1-ton model for its unmatched 2000 lb capacity and 76-inch lift range, though the lowering control concerns warrant careful testing before use.

The right transmission jack makes transmission work safer, faster, and less physically demanding. Whether you are outfitting a new shop or upgrading aging equipment, investing in the correct jack for your specific workload pays dividends in efficiency and safety for years to come. Choose based on the vehicles you service most, not just the lowest price tag.
